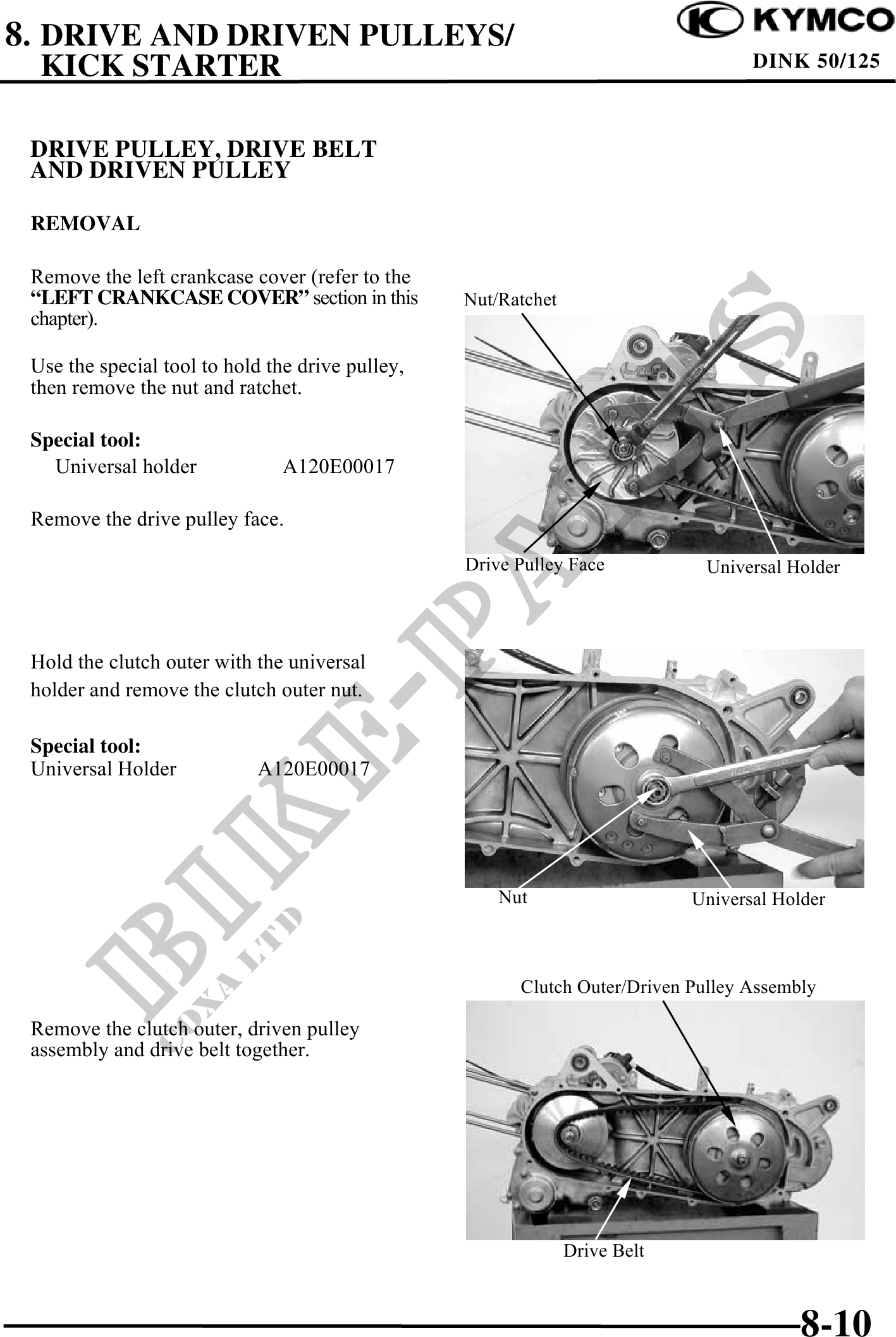

          8. DRIVE AND DRIVEN PULLEYS/
  KICK STARTER                                                                      DINK 50/125



 DRIVE PULLEY, DRIVE BELT
 AND DRIVEN PULLEY

 REMOVAL

 Remove the left crankcase cover (refer to the
 "LEFT CRANKCASE COVER" section in this           Nut/Ratchet
 chapter).

 Use the special tool to hold the drive pulley,
 then remove the nut and ratchet.

 Special tool:
   Universal holder             A120E00017

 Remove the drive pulley face.

                                                  Drive Pulley Face           Universal Holder



 Hold the clutch outer with the universal
 holder and remove the clutch outer nut.

 Special tool:
 Universal Holder           A120E00017




                                                      Nut                    Universal Holder



                                                        Clutch Outer/Driven Pulley Assembly

 Remove the clutch outer, driven pulley
 assembly and drive belt together.




                                                                Drive Belt



                                                                                          8-10
