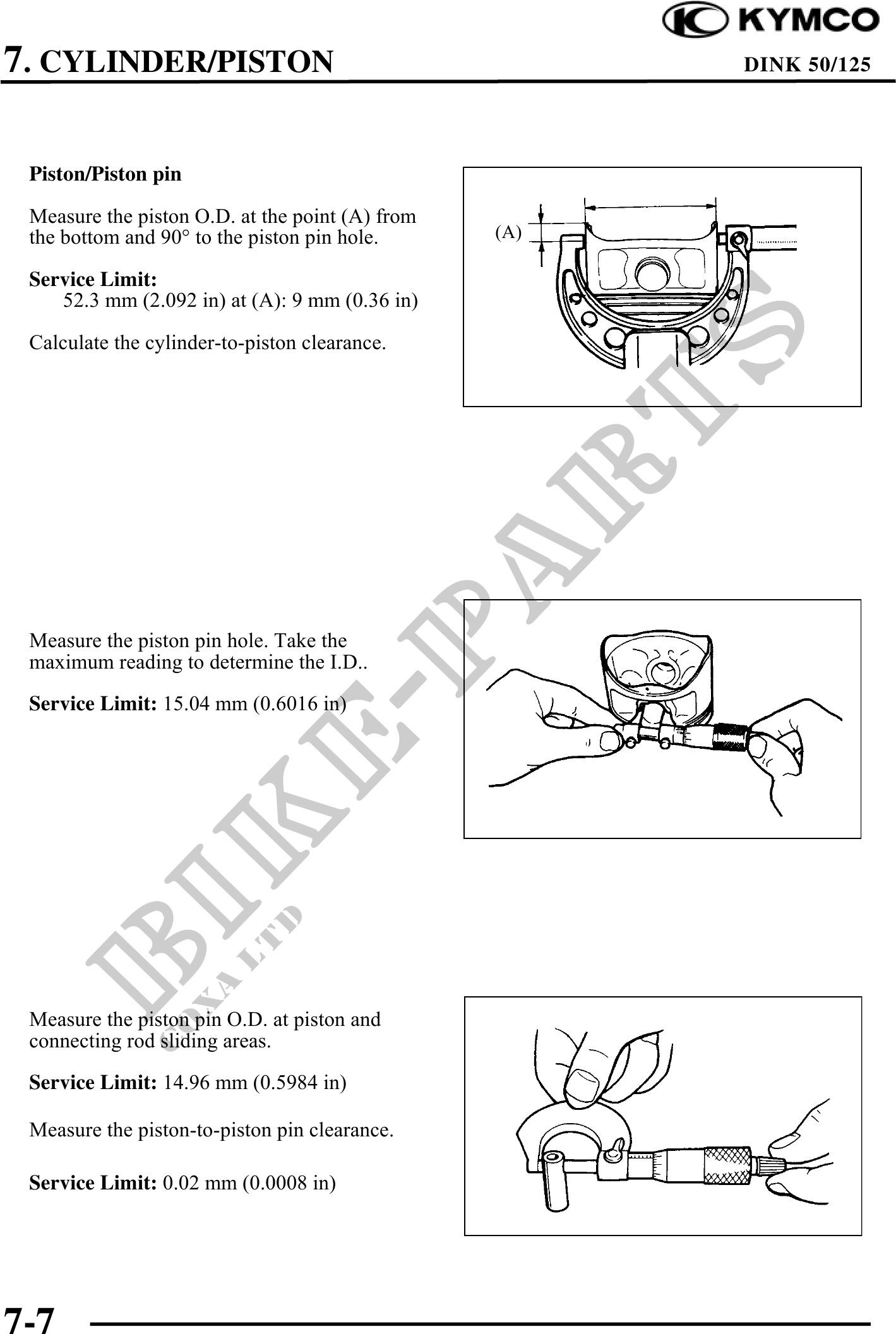

7. CYLINDER/PISTON DINK 50/125
Piston/Piston pin
Measure the piston O.D. at the point (A) from
the bottom and 90° to the piston pin hole. 10 mm
(A)
Service Limit:
52.3 mm (2.092 in) at (A): 9 mm (0.36 in)
Calculate the cylinder-to-piston clearance.
Measure the piston pin hole. Take the
maximum reading to determine the I.D..
Service Limit: 15.04 mm (0.6016 in)
Measure the piston pin O.D. at piston and
connecting rod sliding areas.
Service Limit: 14.96 mm (0.5984 in)
Measure the piston-to-piston pin clearance.
Service Limit: 0.02 mm (0.0008 in)
7-7
