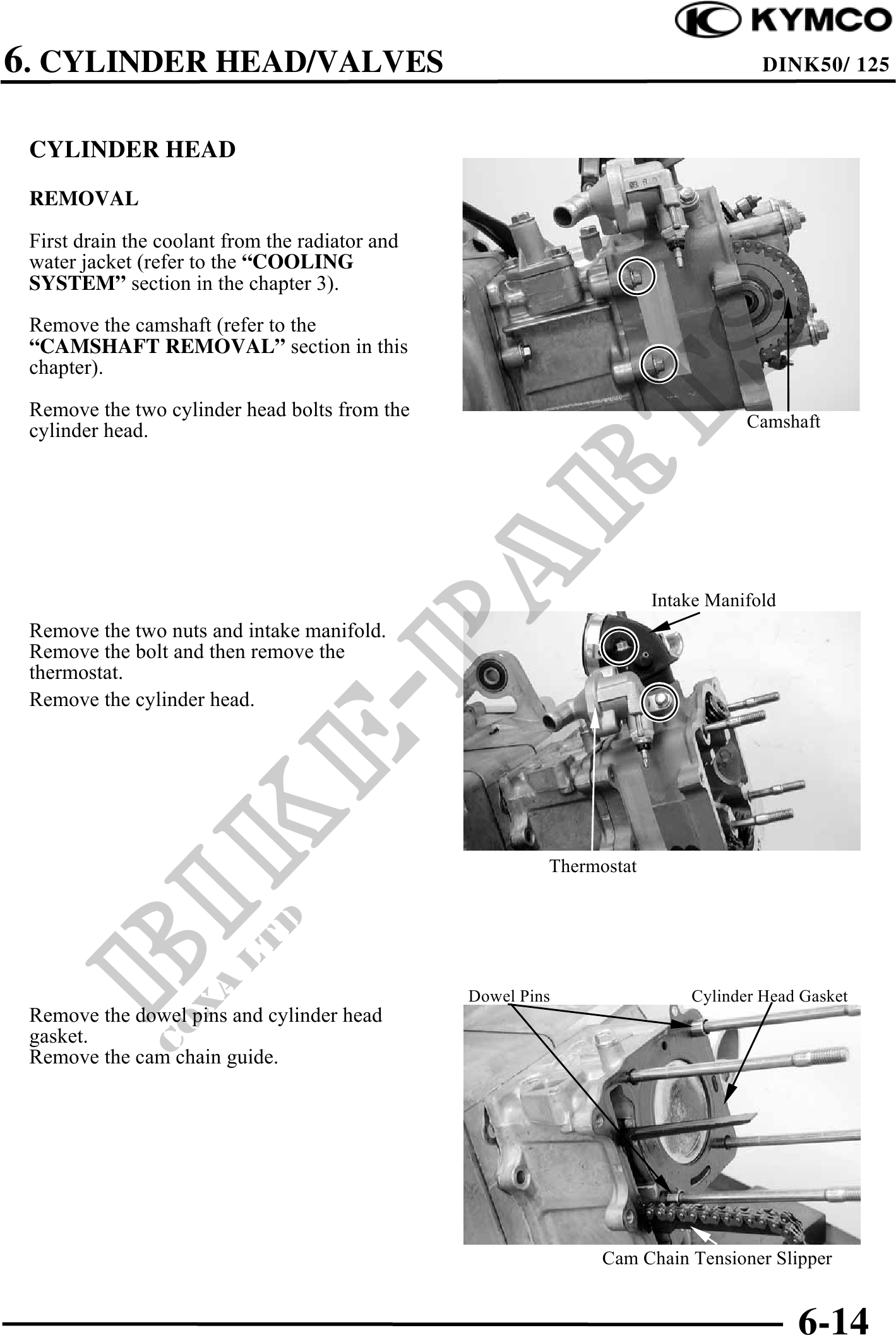

6. CYLINDER HEAD/VALVES DINK50/ 125
CYLINDER HEAD
REMOVAL
First drain the coolant from the radiator and
water jacket (refer to the "COOLING
SYSTEM" section in the chapter 3).
Remove the camshaft (refer to the
"CAMSHAFT REMOVAL" section in this
chapter).
Remove the two cylinder head bolts from the
Camshaft
cylinder head.
Intake Manifold
Remove the two nuts and intake manifold.
Remove the bolt and then remove the
thermostat.
Remove the cylinder head.
Thermostat
Dowel Pins Cylinder Head Gasket
Remove the dowel pins and cylinder head
gasket.
Remove the cam chain guide.
Cam Chain Tensioner Slipper
6-14
