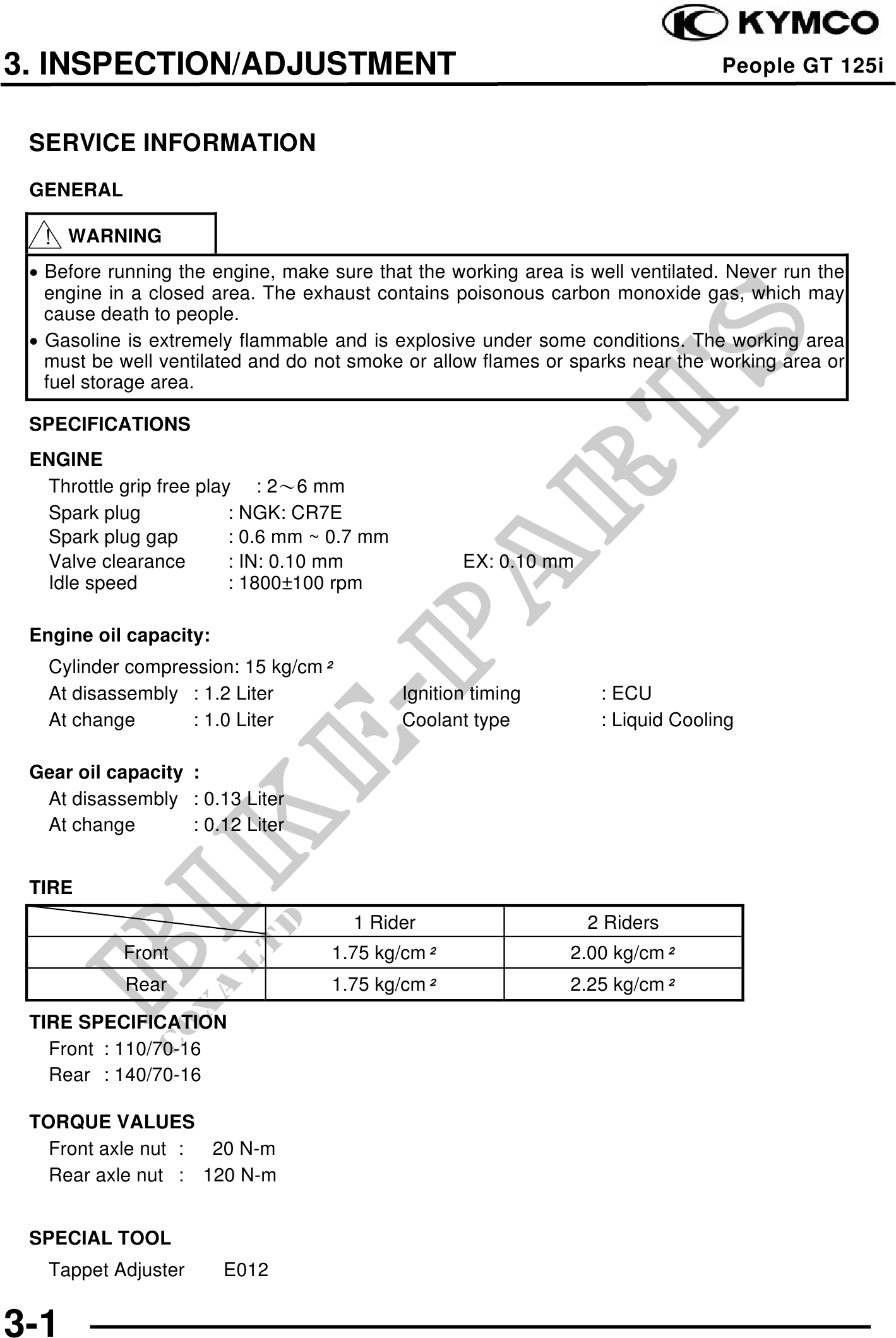

          3. INSPECTION/ADJUSTMENT                                                         People GT 125i


 SERVICE INFORMATION
 GENERAL

   WARNING
 · Before running the engine, make sure that the working area is well ventilated. Never run the
   engine in a closed area. The exhaust contains poisonous carbon monoxide gas, which may
   cause death to people.
 · Gasoline is extremely flammable and is explosive under some conditions. The working area
   must be well ventilated and do not smoke or allow flames or sparks near the working area or
   fuel storage area.

 SPECIFICATIONS
 ENGINE
  Throttle grip free play : 26 mm
  Spark plug             : NGK: CR7E
  Spark plug gap         : 0.6 mm ~ 0.7 mm
  Valve clearance        : IN: 0.10 mm              EX: 0.10 mm
  Idle speed             : 1800100 rpm

 Engine oil capacity:
   Cylinder compression: 15 kg/cm
   At disassembly : 1.2 Liter                Ignition timing       : ECU
   At change      : 1.0 Liter                Coolant type          : Liquid Cooling

 Gear oil capacity :
  At disassembly : 0.13 Liter
  At change        : 0.12 Liter


 TIRE
                                      1 Rider                     2 Riders
            Front                  1.75 kg/cm                  2.00 kg/cm
            Rear                   1.75 kg/cm                  2.25 kg/cm
 TIRE SPECIFICATION
   Front : 110/70-16
   Rear : 140/70-16

 TORQUE VALUES
   Front axle nut : 20 N-m
   Rear axle nut : 120 N-m


 SPECIAL TOOL
   Tappet Adjuster      E012


3-1
