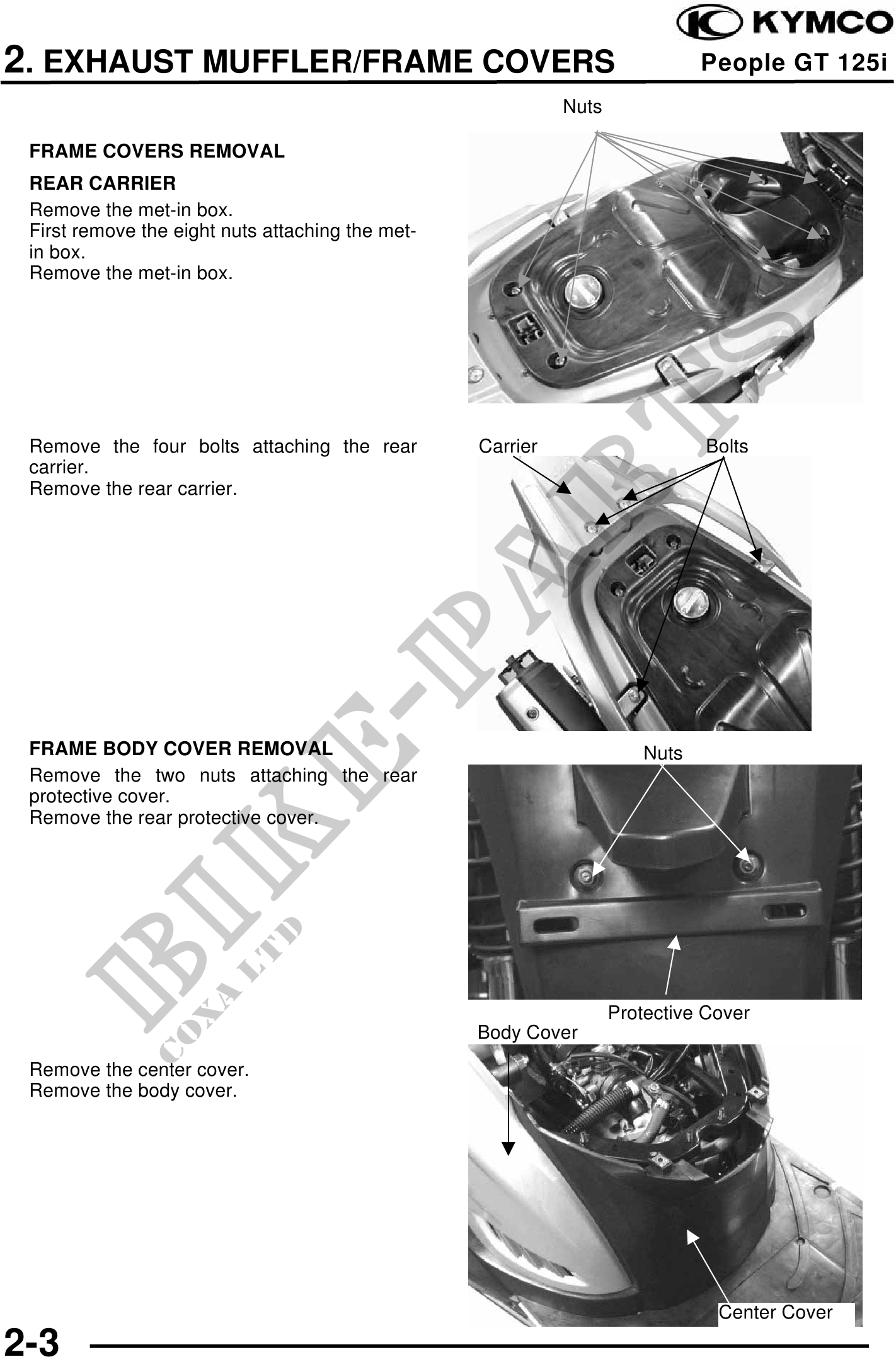

2. EXHAUST MUFFLER/FRAME COVERS People GT 125i
Nuts
FRAME COVERS REMOVAL
REAR CARRIER
Remove the met-in box.
First remove the eight nuts attaching the met-
in box.
Remove the met-in box.
Remove the four bolts attaching the rear Carrier Bolts
carrier.
Remove the rear carrier.
FRAME BODY COVER REMOVAL Nuts
Remove the two nuts attaching the rear
protective cover.
Remove the rear protective cover.
Protective Cover
Body Cover
Remove the center cover.
Remove the body cover.
Center Cover
2-3
