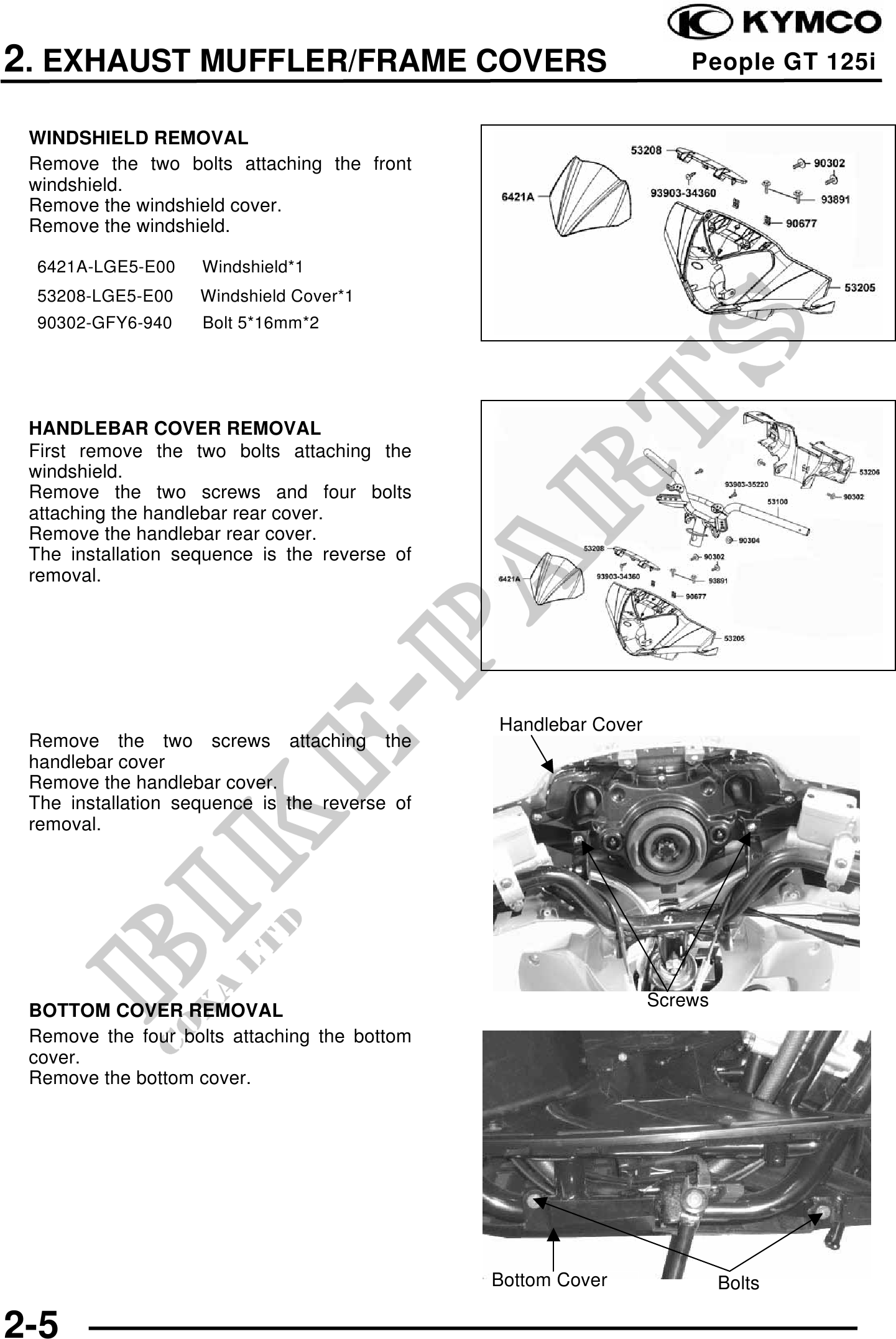

2. EXHAUST MUFFLER/FRAME COVERS People GT 125i
WINDSHIELD REMOVAL
Remove the two bolts attaching the front
windshield.
Remove the windshield cover.
Remove the windshield.
6421A-LGE5-E00 Windshield*1
53208-LGE5-E00 Windshield Cover*1
90302-GFY6-940 Bolt 5*16mm*2
HANDLEBAR COVER REMOVAL
First remove the two bolts attaching the
windshield.
Remove the two screws and four bolts
attaching the handlebar rear cover.
Remove the handlebar rear cover.
The installation sequence is the reverse of
removal.
Handlebar Cover
Remove the two screws attaching the
handlebar cover
Remove the handlebar cover.
The installation sequence is the reverse of
removal.
Screws
BOTTOM COVER REMOVAL
Remove the four bolts attaching the bottom
cover.
Remove the bottom cover.
Bottom Cover Bolts
2-5
