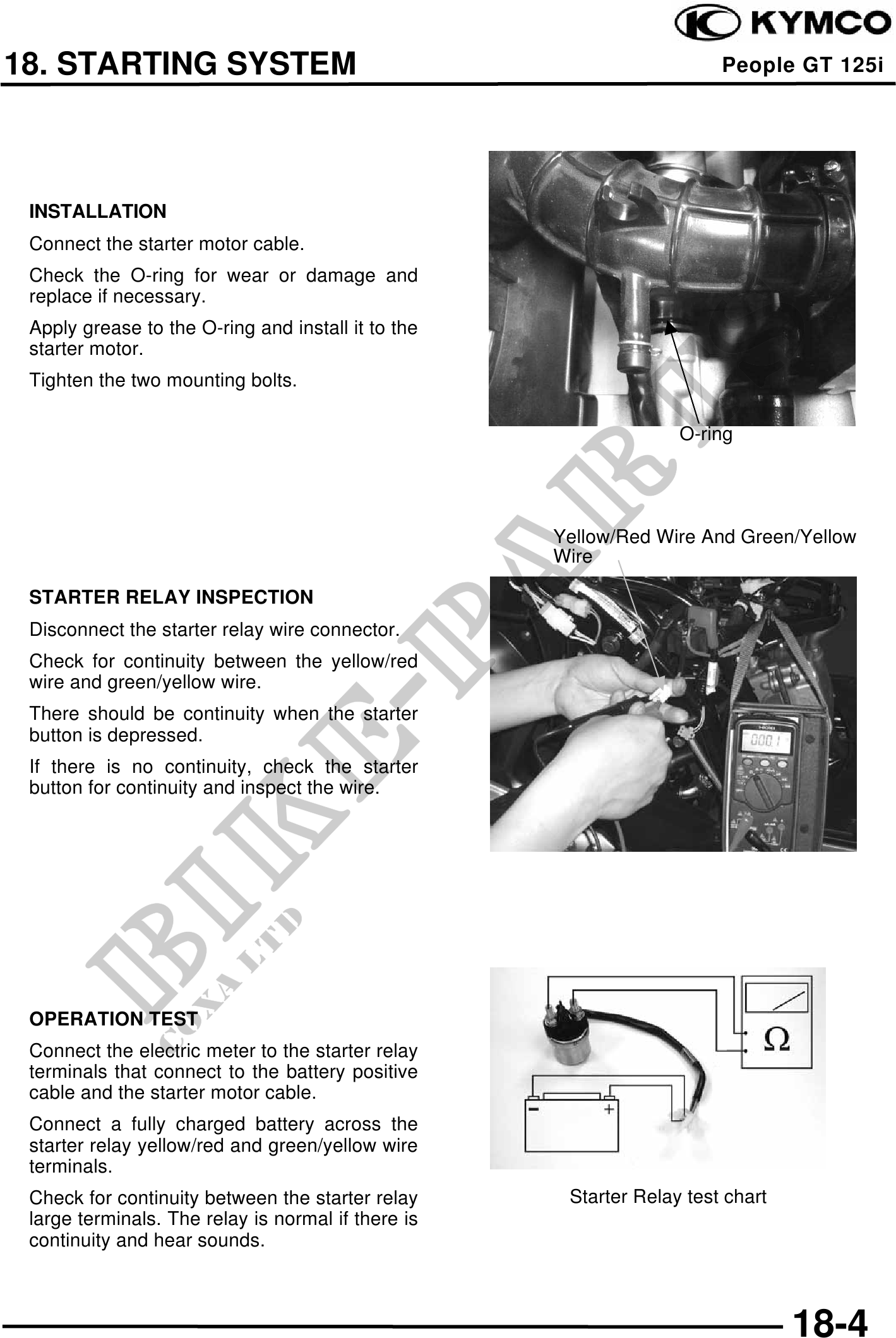

          18. STARTING SYSTEM                                                    People GT 125i




 INSTALLATION
 Connect the starter motor cable.
 Check the O-ring for wear or damage and
 replace if necessary.
 Apply grease to the O-ring and install it to the
 starter motor.
 Tighten the two mounting bolts.

                                                                  O-ring




                                                    Yellow/Red Wire And Green/Yellow
                                                    Wire

 STARTER RELAY INSPECTION
 Disconnect the starter relay wire connector.
 Check for continuity between the yellow/red
 wire and green/yellow wire.
 There should be continuity when the starter
 button is depressed.
 If there is no continuity, check the starter
 button for continuity and inspect the wire.




 OPERATION TEST
 Connect the electric meter to the starter relay
 terminals that connect to the battery positive
 cable and the starter motor cable.
 Connect a fully charged battery across the
 starter relay yellow/red and green/yellow wire
 terminals.
 Check for continuity between the starter relay      Starter Relay test chart
 large terminals. The relay is normal if there is
 continuity and hear sounds.



                                                                                18-4
