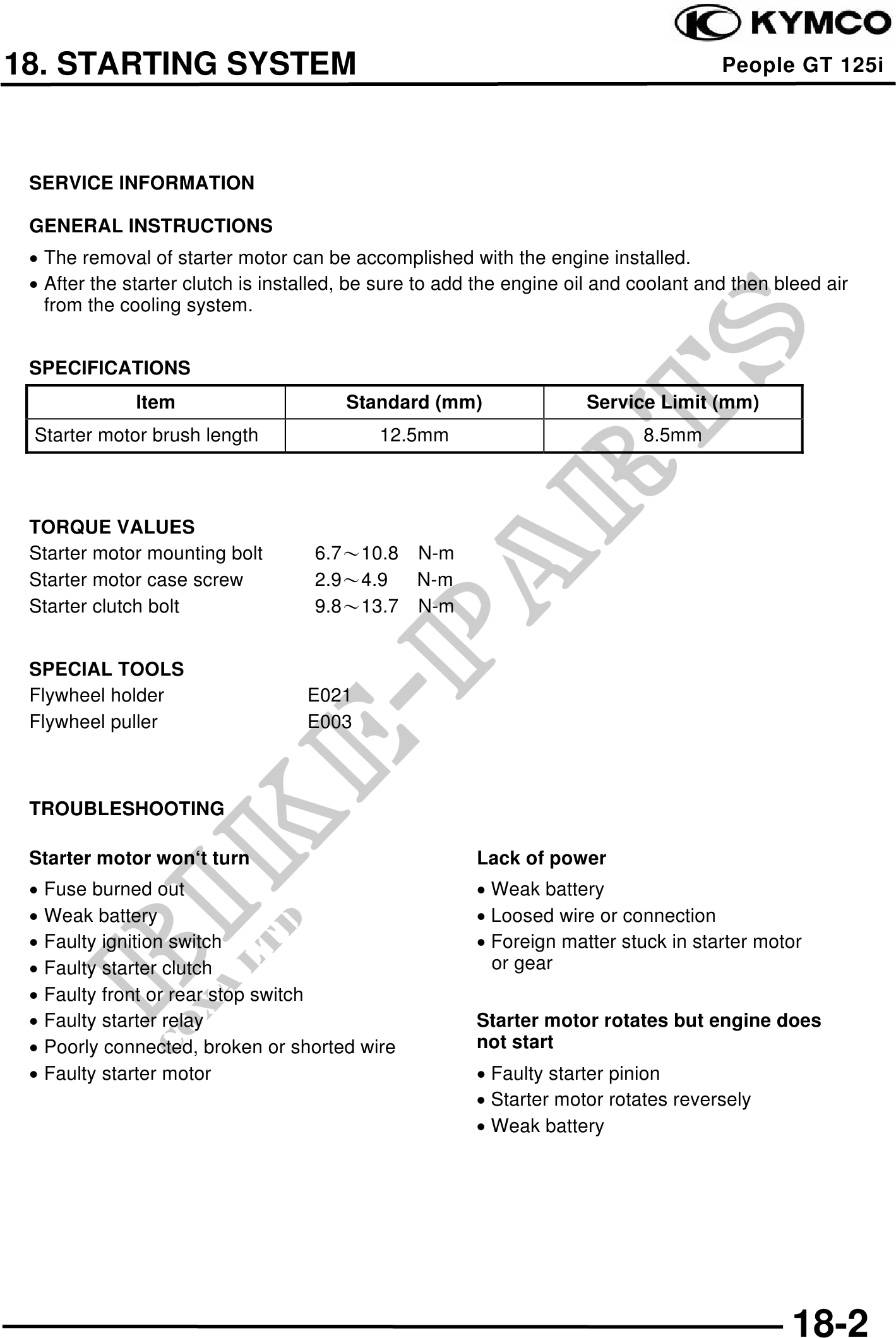

          18. STARTING SYSTEM                                                                   People GT 125i




 SERVICE INFORMATION

 GENERAL INSTRUCTIONS
 · The removal of starter motor can be accomplished with the engine installed.
 · After the starter clutch is installed, be sure to add the engine oil and coolant and then bleed air
   from the cooling system.


 SPECIFICATIONS
               Item                     Standard (mm)                Service Limit (mm)
 Starter motor brush length                 12.5mm                          8.5mm



 TORQUE VALUES
 Starter motor mounting bolt        6.710.8 N-m
 Starter motor case screw           2.94.9  N-m
 Starter clutch bolt                9.813.7 N-m


 SPECIAL TOOLS
 Flywheel holder                   E021
 Flywheel puller                   E003



 TROUBLESHOOTING

 Starter motor won`t turn                               Lack of power
 ·   Fuse burned out                                    · Weak battery
 ·   Weak battery                                       · Loosed wire or connection
 ·   Faulty ignition switch                             · Foreign matter stuck in starter motor
 ·   Faulty starter clutch                                or gear
 ·   Faulty front or rear stop switch
 ·   Faulty starter relay                               Starter motor rotates but engine does
 ·   Poorly connected, broken or shorted wire           not start
 ·   Faulty starter motor                               · Faulty starter pinion
                                                        · Starter motor rotates reversely
                                                        · Weak battery




                                                                                               18-2
