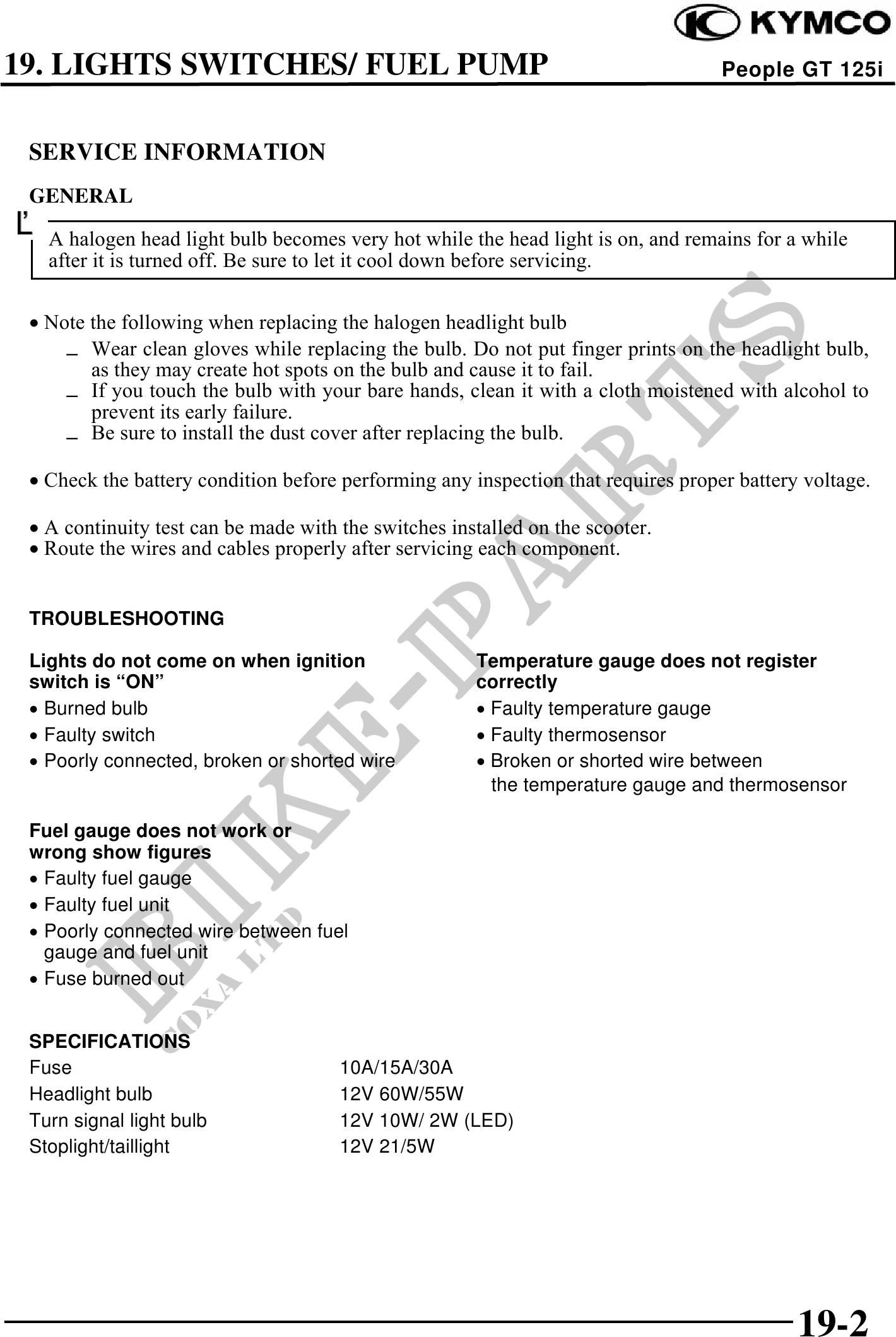

          19. LIGHTS SWITCHES/ FUEL PUMP                                                     People GT 125i


 SERVICE INFORMATION
 GENERAL
 A halogen head light bulb becomes very hot while the head light is on, and remains for a while
   after it is turned off. Be sure to let it cool down before servicing.

 · Note the following when replacing the halogen headlight bulb
     ä Wear clean gloves while replacing the bulb. Do not put finger prints on the headlight bulb,
        as they may create hot spots on the bulb and cause it to fail.
     ä If you touch the bulb with your bare hands, clean it with a cloth moistened with alcohol to
        prevent its early failure.
     ä Be sure to install the dust cover after replacing the bulb.

 · Check the battery condition before performing any inspection that requires proper battery voltage.

 · A continuity test can be made with the switches installed on the scooter.
 · Route the wires and cables properly after servicing each component.


 TROUBLESHOOTING

 Lights do not come on when ignition                     Temperature gauge does not register
 switch is "ON"                                          correctly
 · Burned bulb                                           · Faulty temperature gauge
 · Faulty switch                                         · Faulty thermosensor
 · Poorly connected, broken or shorted wire              · Broken or shorted wire between
                                                           the temperature gauge and thermosensor

 Fuel gauge does not work or
 wrong show figures
 · Faulty fuel gauge
 · Faulty fuel unit
 · Poorly connected wire between fuel
   gauge and fuel unit
 · Fuse burned out


 SPECIFICATIONS
 Fuse                                  10A/15A/30A
 Headlight bulb                        12V 60W/55W
 Turn signal light bulb                12V 10W/ 2W (LED)
 Stoplight/taillight                   12V 21/5W




                                                                                            19-2
