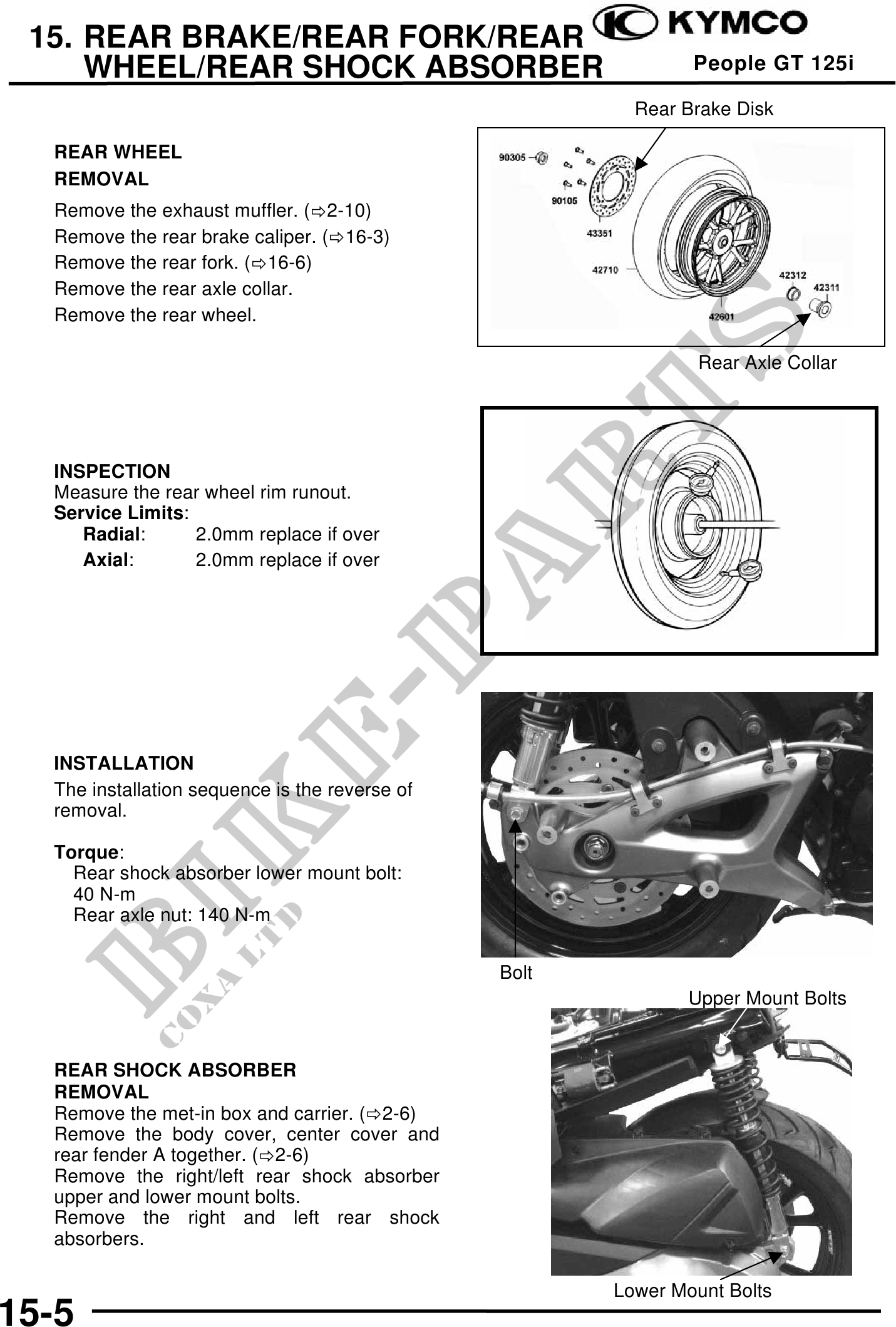

           15. REAR BRAKE/REAR FORK/REAR
     WHEEL/REAR SHOCK ABSORBER                                 People GT 125i

                                                         Rear Brake Disk

  REAR WHEEL
  REMOVAL
  Remove the exhaust muffler. ( 2-10)
  Remove the rear brake caliper. ( 16-3)
  Remove the rear fork. ( 16-6)
  Remove the rear axle collar.
  Remove the rear wheel.

                                                                Rear Axle Collar




  INSPECTION
  Measure the rear wheel rim runout.
  Service Limits:
     Radial:      2.0mm replace if over
     Axial:       2.0mm replace if over




  INSTALLATION
  The installation sequence is the reverse of
  removal.

  Torque:
    Rear shock absorber lower mount bolt:
    40 N-m
    Rear axle nut: 140 N-m


                                                Bolt
                                                               Upper Mount Bolts


  REAR SHOCK ABSORBER
  REMOVAL
  Remove the met-in box and carrier. ( 2-6)
  Remove the body cover, center cover and
  rear fender A together. ( 2-6)
  Remove the right/left rear shock absorber
  upper and lower mount bolts.
  Remove the right and left rear shock
  absorbers.

                                                       Lower Mount Bolts
15-5
