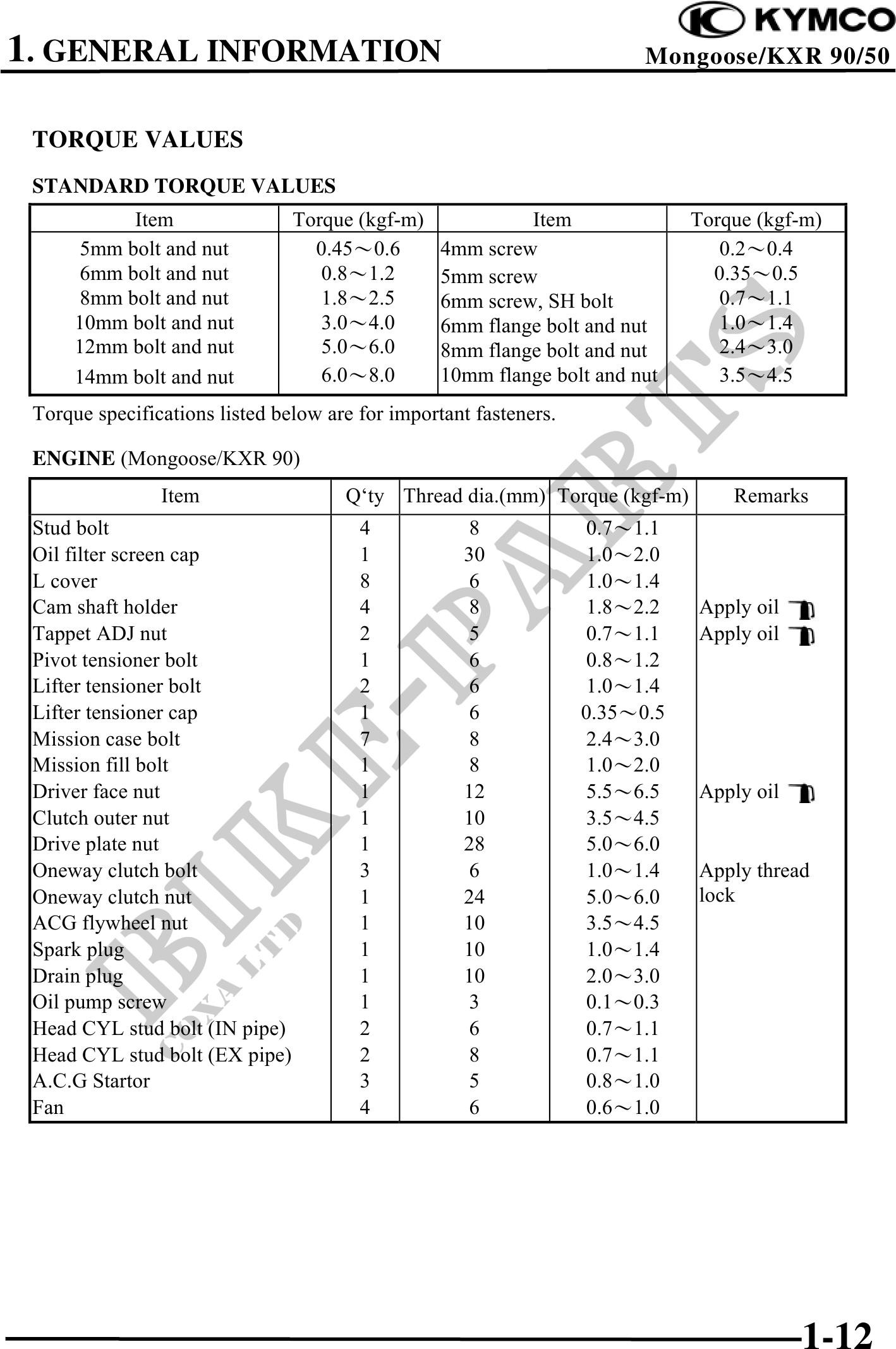

          1. GENERAL INFORMATION                                                  Mongoose/KXR 90/50


 TORQUE VALUES
 STANDARD TORQUE VALUES
           Item                 Torque (kgf-m)             Item              Torque (kgf-m)
      5mm bolt and nut            0.450.6         4mm screw                     0.20.4
      6mm bolt and nut             0.81.2         5mm screw                    0.350.5
      8mm bolt and nut             1.82.5         6mm screw, SH bolt            0.71.1
      10mm bolt and nut            3.04.0         6mm flange bolt and nut       1.01.4
      12mm bolt and nut            5.06.0         8mm flange bolt and nut       2.43.0
      14mm bolt and nut            6.08.0         10mm flange bolt and nut      3.54.5
 Torque specifications listed below are for important fasteners.

 ENGINE (Mongoose/KXR 90)
                Item                  Q`ty Thread dia.(mm) Torque (kgf-m)        Remarks
 Stud bolt                              4            8              0.71.1
 Oil filter screen cap                  1           30              1.02.0
 L cover                                8            6              1.01.4
 Cam shaft holder                       4            8              1.82.2   Apply oil
 Tappet ADJ nut                         2            5              0.71.1   Apply oil
 Pivot tensioner bolt                   1            6              0.81.2
 Lifter tensioner bolt                  2            6              1.01.4
 Lifter tensioner cap                   1            6             0.350.5
 Mission case bolt                      7            8              2.43.0
 Mission fill bolt                      1            8              1.02.0
 Driver face nut                        1           12              5.56.5   Apply oil
 Clutch outer nut                       1           10              3.54.5
 Drive plate nut                        1           28              5.06.0
 Oneway clutch bolt                     3            6              1.01.4   Apply thread
 Oneway clutch nut                      1           24              5.06.0   lock
 ACG flywheel nut                       1           10              3.54.5
 Spark plug                             1           10              1.01.4
 Drain plug                             1           10              2.03.0
 Oil pump screw                         1            3              0.10.3
 Head CYL stud bolt (IN pipe)           2            6              0.71.1
 Head CYL stud bolt (EX pipe)           2            8              0.71.1
 A.C.G Startor                          3            5              0.81.0
 Fan                                    4            6              0.61.0




                                                                                         1-12
