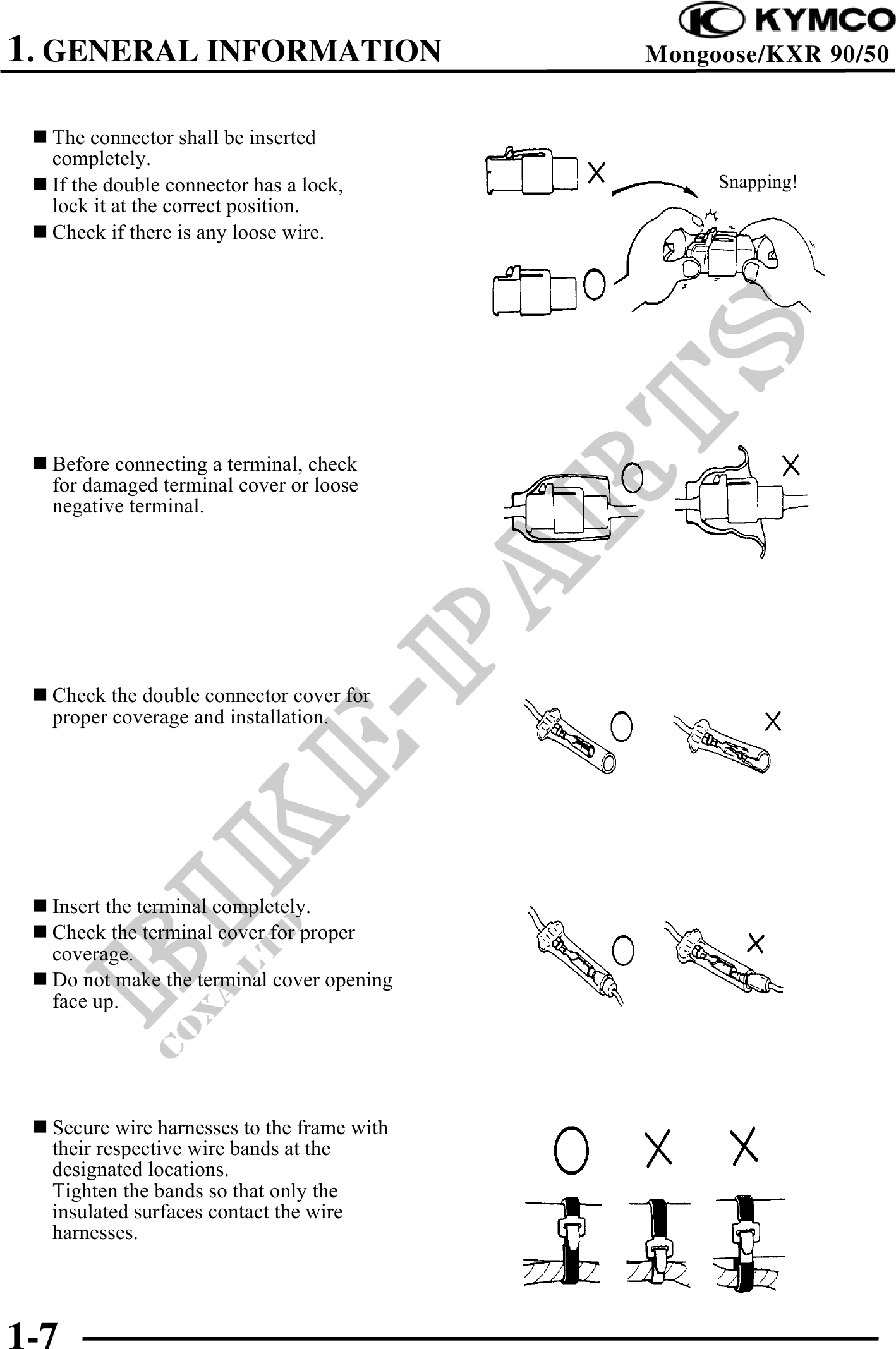

1. GENERAL INFORMATION Mongoose/KXR 90/50
The connector shall be inserted
completely.
If the double connector has a lock, Snapping!
lock it at the correct position.
Check if there is any loose wire.
Before connecting a terminal, check
for damaged terminal cover or loose
negative terminal.
Check the double connector cover for
proper coverage and installation.
Insert the terminal completely.
Check the terminal cover for proper
coverage.
Do not make the terminal cover opening
face up.
Secure wire harnesses to the frame with
their respective wire bands at the
designated locations.
Tighten the bands so that only the
insulated surfaces contact the wire
harnesses.
