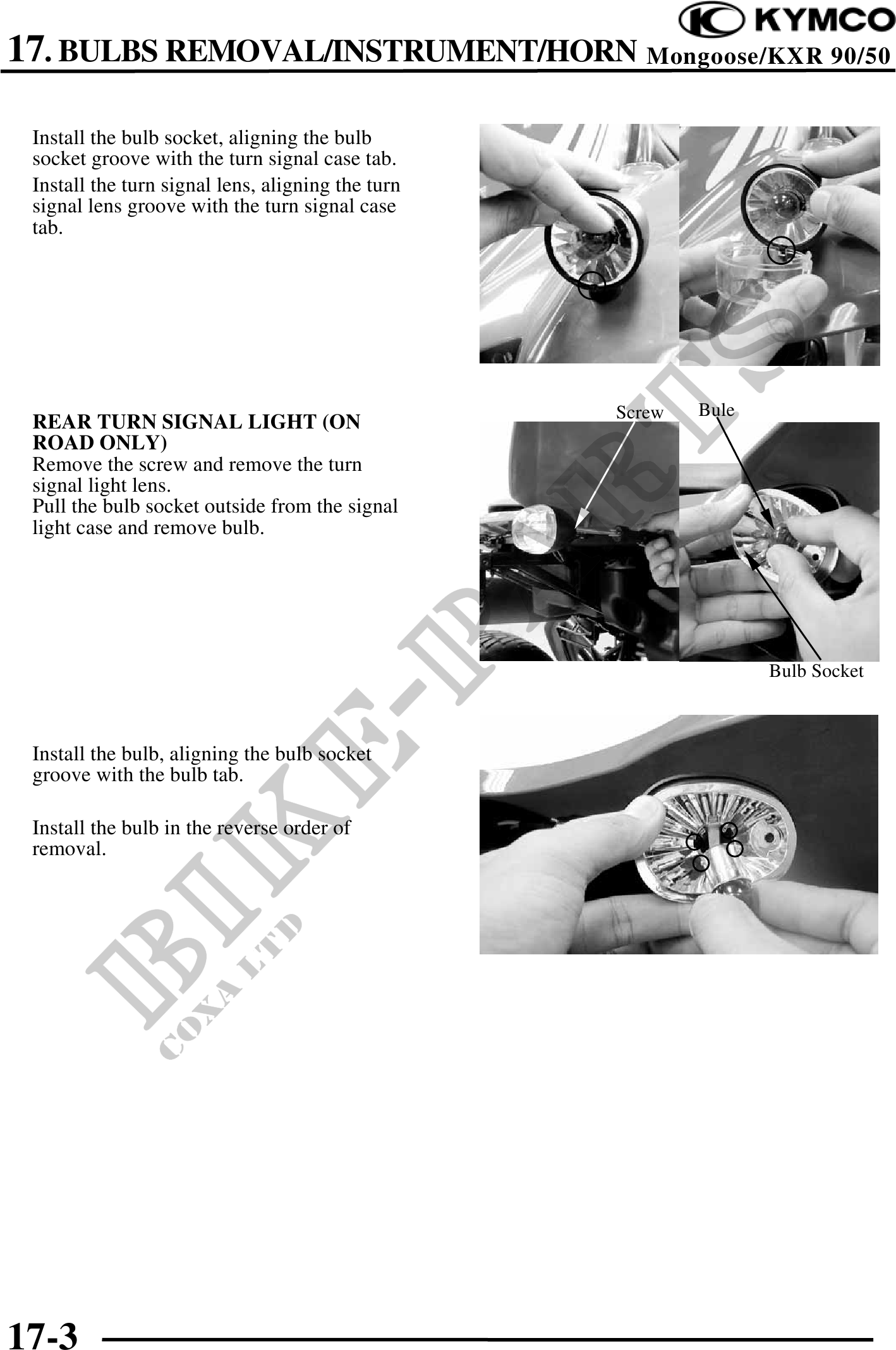

17. BULBS REMOVAL/INSTRUMENT/HORN Mongoose/KXR 90/50
Install the bulb socket, aligning the bulb
socket groove with the turn signal case tab.
Install the turn signal lens, aligning the turn
signal lens groove with the turn signal case
tab.
Screw Bule
REAR TURN SIGNAL LIGHT (ON
ROAD ONLY)
Remove the screw and remove the turn
signal light lens.
Pull the bulb socket outside from the signal
light case and remove bulb.
Bulb Socket
Install the bulb, aligning the bulb socket
groove with the bulb tab.
Install the bulb in the reverse order of
removal.
17-3
