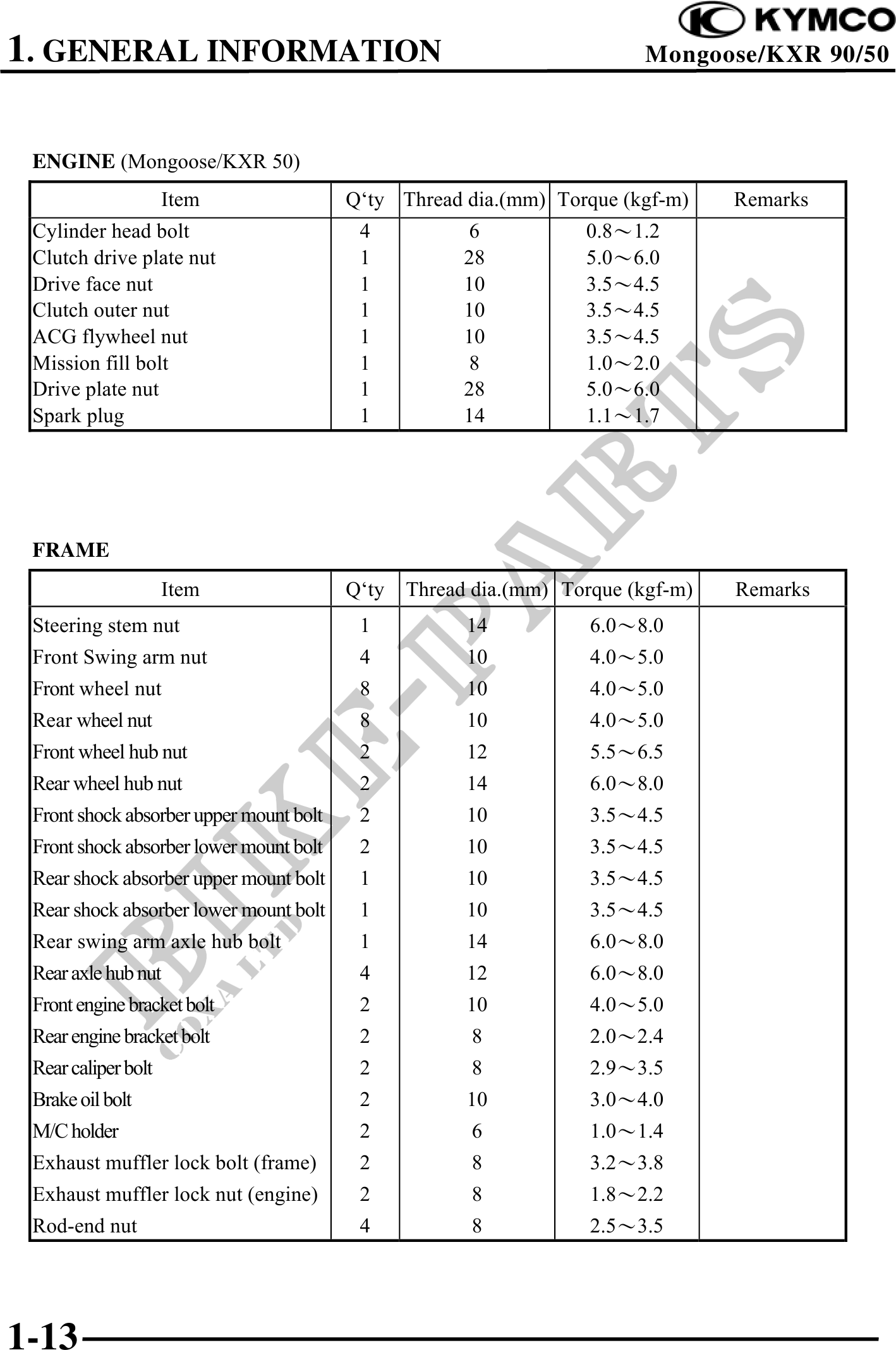

          1. GENERAL INFORMATION                                                   Mongoose/KXR 90/50



 ENGINE (Mongoose/KXR 50)
                 Item                    Q`ty Thread dia.(mm) Torque (kgf-m)     Remarks
 Cylinder head bolt                       4            6          0.81.2
 Clutch drive plate nut                   1           28          5.06.0
 Drive face nut                           1           10          3.54.5
 Clutch outer nut                         1           10          3.54.5
 ACG flywheel nut                         1           10          3.54.5
 Mission fill bolt                        1            8          1.02.0
 Drive plate nut                          1           28          5.06.0
 Spark plug                               1           14          1.11.7




 FRAME
                 Item                    Q`ty   Thread dia.(mm) Torque (kgf-m)   Remarks
 Steering stem nut                        1           14           6.08.0
 Front Swing arm nut                      4           10           4.05.0
 Front wheel nut                          8           10           4.05.0
 Rear wheel nut                           8           10           4.05.0
 Front wheel hub nut                      2           12           5.56.5
 Rear wheel hub nut                       2           14           6.08.0
 Front shock absorber upper mount bolt    2           10           3.54.5
 Front shock absorber lower mount bolt    2           10           3.54.5
 Rear shock absorber upper mount bolt     1           10           3.54.5
 Rear shock absorber lower mount bolt     1           10           3.54.5
 Rear swing arm axle hub bolt             1           14           6.08.0
 Rear axle hub nut                        4           12           6.08.0
 Front engine bracket bolt                2           10           4.05.0
 Rear engine bracket bolt                 2            8           2.02.4
 Rear caliper bolt                        2            8           2.93.5
 Brake oil bolt                           2           10           3.04.0
 M/C holder                               2            6           1.01.4
 Exhaust muffler lock bolt (frame)        2            8           3.23.8
 Exhaust muffler lock nut (engine)        2            8           1.82.2
 Rod-end nut                              4            8           2.53.5




1-13
