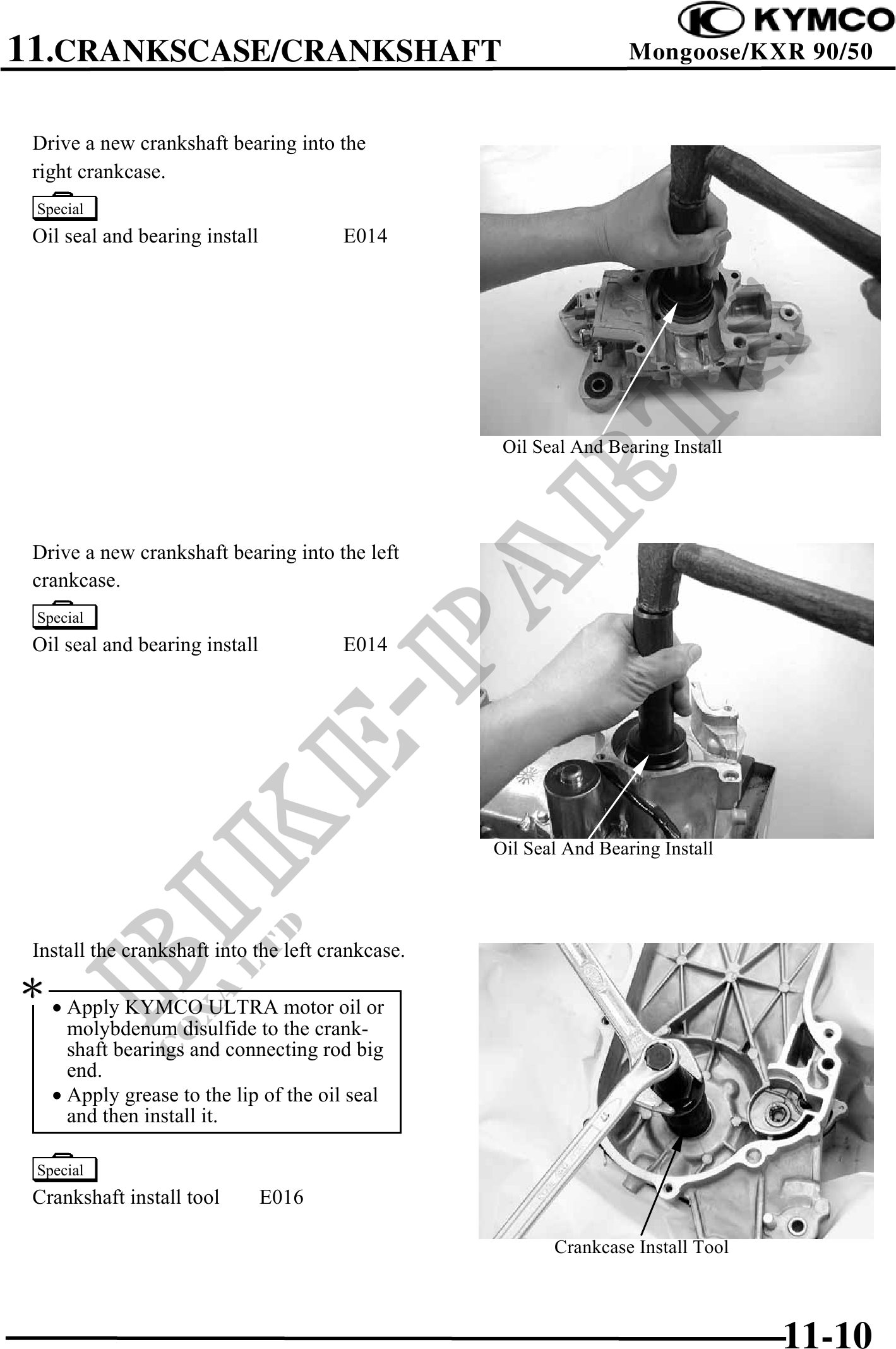

          11.CRANKSCASE/CRANKSHAFT                                            Mongoose/KXR 90/50


 Drive a new crankshaft bearing into the
 right crankcase.
 Special
 Oil seal and bearing install           E014




                                                    Oil Seal And Bearing Install




 Drive a new crankshaft bearing into the left
 crankcase.
 Special
 Oil seal and bearing install           E014




                                                   Oil Seal And Bearing Install




 Install the crankshaft into the left crankcase.

   · Apply KYMCO ULTRA motor oil or
     molybdenum disulfide to the crank-
     shaft bearings and connecting rod big
     end.
   · Apply grease to the lip of the oil seal
     and then install it.

 Special
 Crankshaft install tool        E016

                                                          Crankcase Install Tool



                                                                                   11-10
