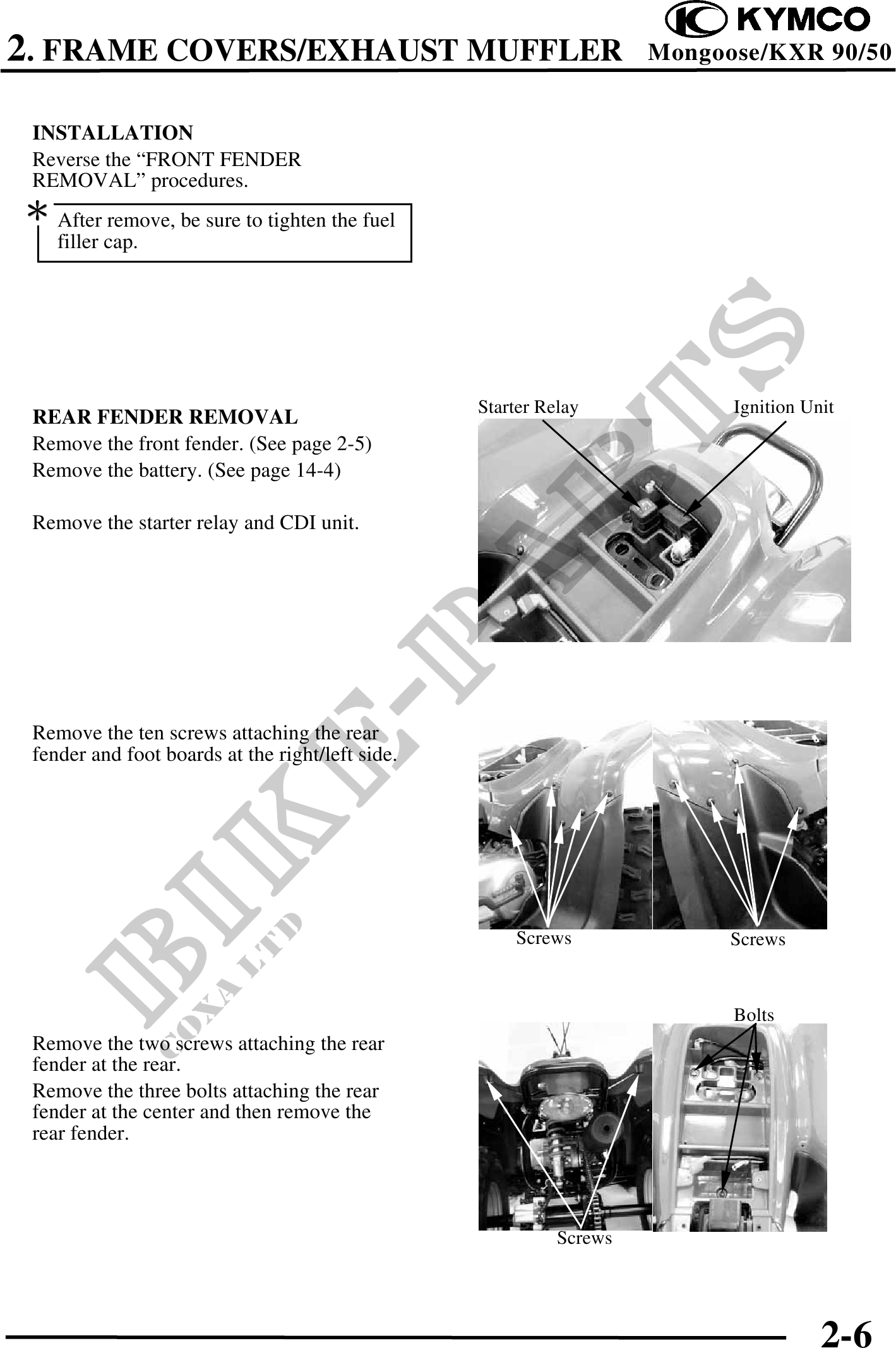

          2. FRAME COVERS/EXHAUST MUFFLER                                      Mongoose/KXR 90/50


 INSTALLATION
 Reverse the "FRONT FENDER
 REMOVAL" procedures.
 After remove, be sure to tighten the fuel
    filler cap.




                                                  Starter Relay            Ignition Unit
 REAR FENDER REMOVAL
 Remove the front fender. (See page 2-5)
 Remove the battery. (See page 14-4)

 Remove the starter relay and CDI unit.




 Remove the ten screws attaching the rear
 fender and foot boards at the right/left side.




                                                      Screws               Screws


                                                                           Bolts
 Remove the two screws attaching the rear
 fender at the rear.
 Remove the three bolts attaching the rear
 fender at the center and then remove the
 rear fender.



                                                            Screws
