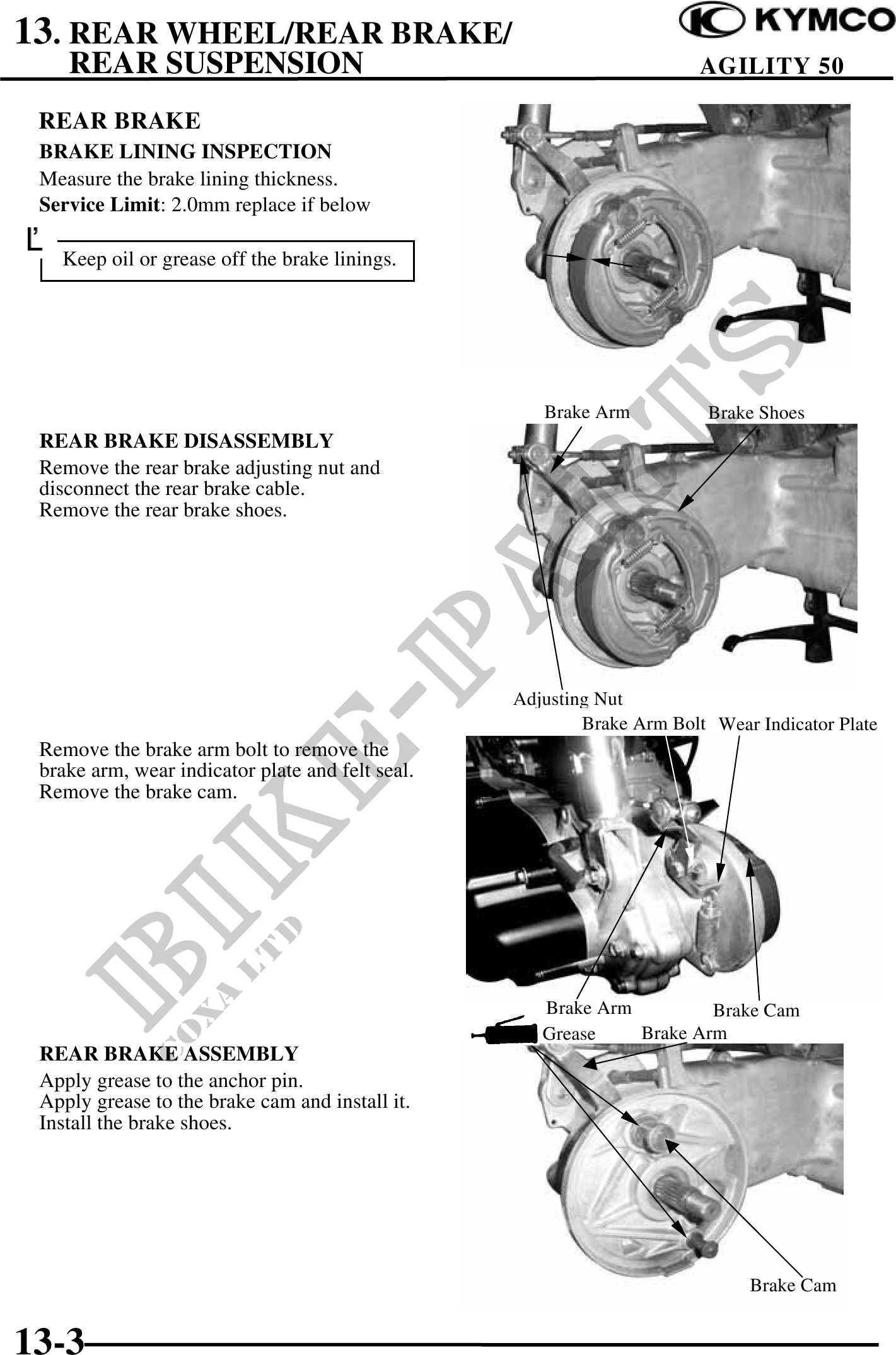

          13. REAR WHEEL/REAR BRAKE/
    REAR SUSPENSION                                                     AGILITY 50

 REAR BRAKE
 BRAKE LINING INSPECTION
 Measure the brake lining thickness.
 Service Limit: 2.0mm replace if below
 Keep oil or grease off the brake linings.




                                                     Brake Arm           Brake Shoes
 REAR BRAKE DISASSEMBLY
 Remove the rear brake adjusting nut and
 disconnect the rear brake cable.
 Remove the rear brake shoes.




                                                  Adjusting Nut
                                                          Brake Arm Bolt Wear Indicator Plate
 Remove the brake arm bolt to remove the
 brake arm, wear indicator plate and felt seal.
 Remove the brake cam.




                                                     Brake Arm         Brake Cam
                                                     Grease    Brake Arm
 REAR BRAKE ASSEMBLY
 Apply grease to the anchor pin.
 Apply grease to the brake cam and install it.
 Install the brake shoes.




                                                                             Brake Cam
