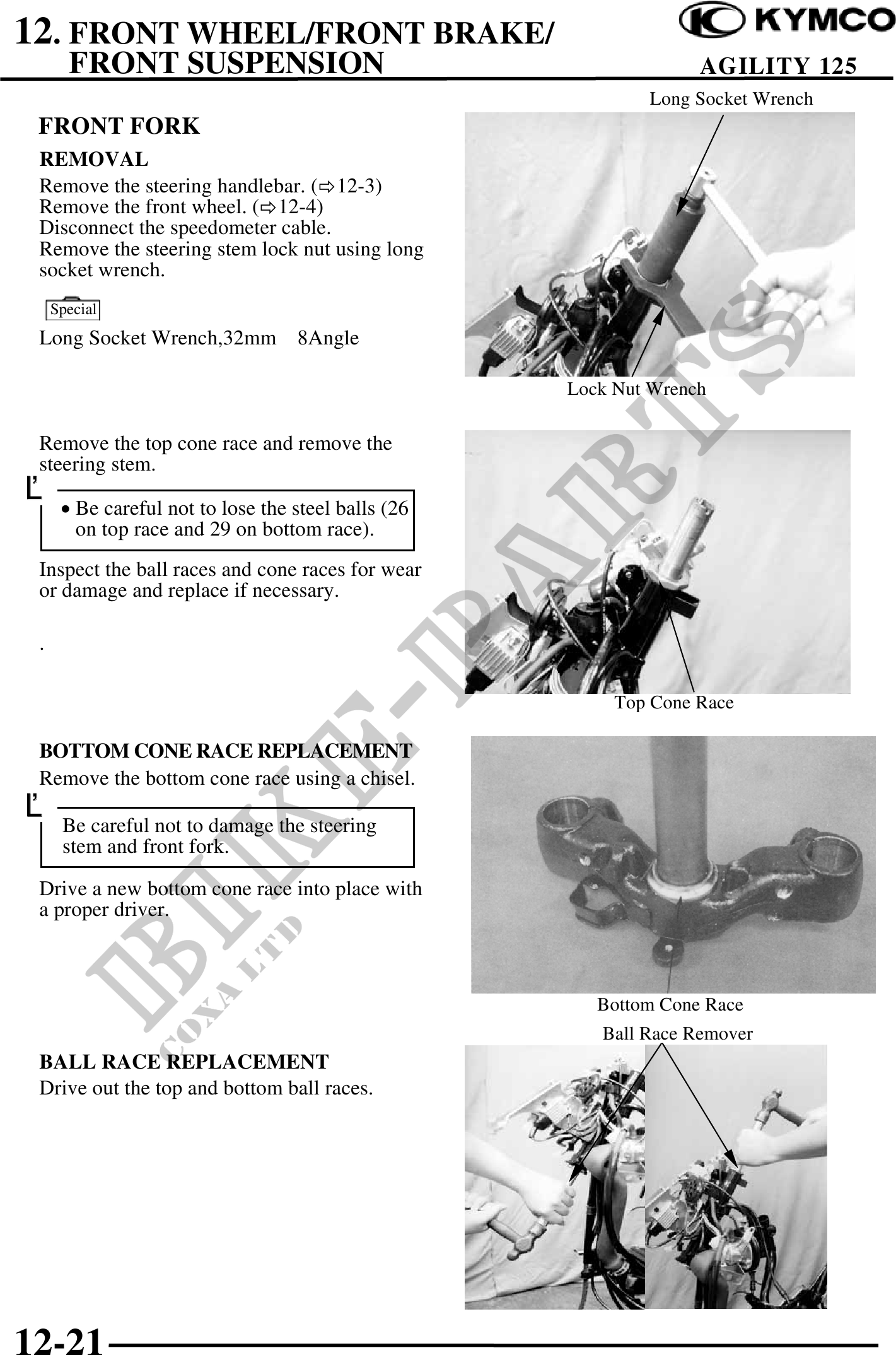

          12. FRONT WHEEL/FRONT BRAKE/
       FRONT SUSPENSION                                         AGILITY 125
                                                          Long Socket Wrench
 FRONT FORK
 REMOVAL
 Remove the steering handlebar. ( 12-3)
 Remove the front wheel. ( 12-4)
 Disconnect the speedometer cable.
 Remove the steering stem lock nut using long
 socket wrench.
     Special
 Long Socket Wrench,32mm 8Angle

                                                  Lock Nut Wrench

 Remove the top cone race and remove the
 steering stem.
 · Be careful not to lose the steel balls (26
        on top race and 29 on bottom race).
 Inspect the ball races and cone races for wear
 or damage and replace if necessary.

 .

                                                       Top Cone Race

 BOTTOM CONE RACE REPLACEMENT
 Remove the bottom cone race using a chisel.
 Be careful not to damage the steering
      stem and front fork.
 Drive a new bottom cone race into place with
 a proper driver.



                                                     Bottom Cone Race
                                                     Ball Race Remover
 BALL RACE REPLACEMENT
 Drive out the top and bottom ball races.




12-21
