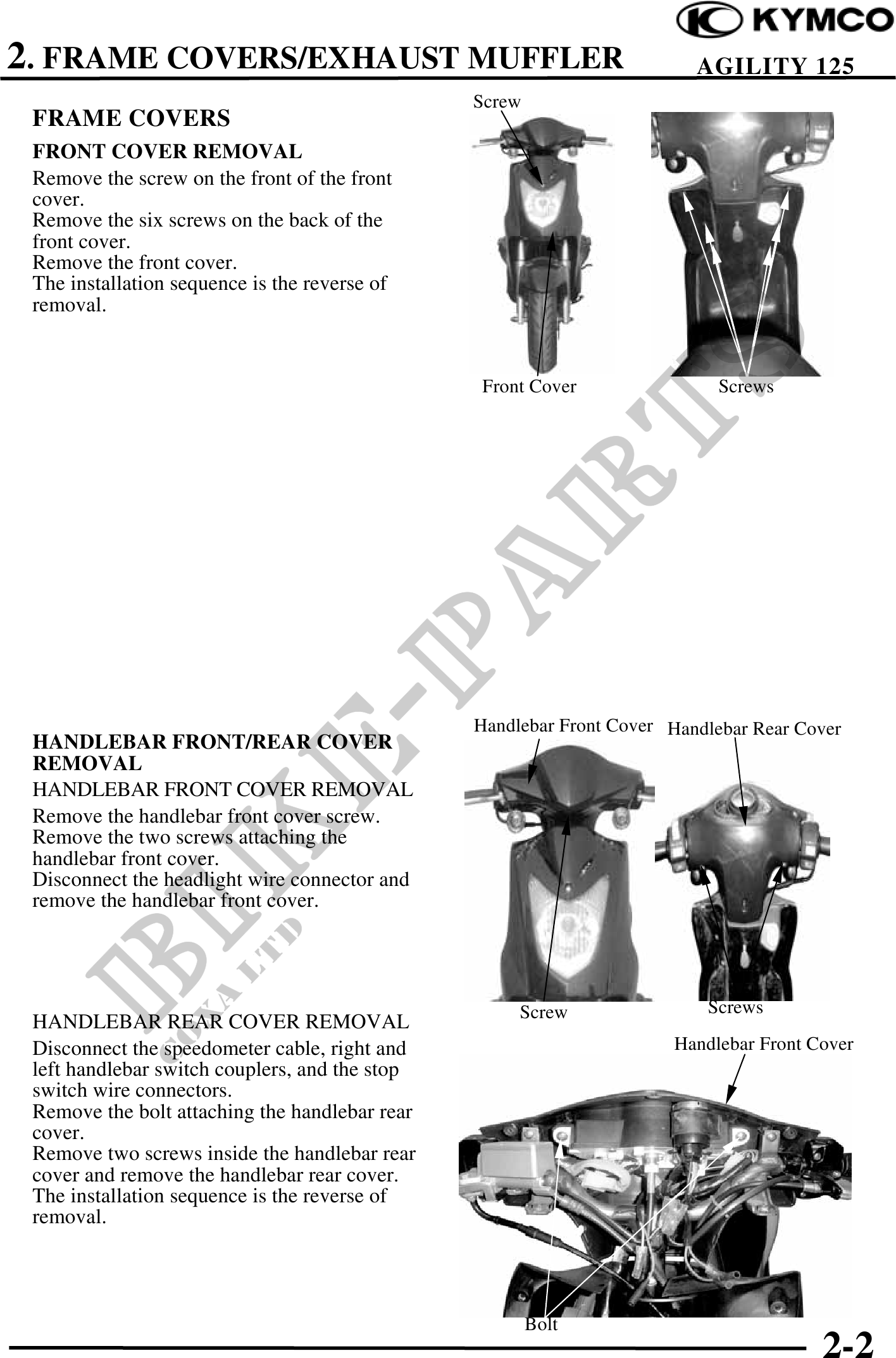

          2. FRAME COVERS/EXHAUST MUFFLER                                          AGILITY 125
                                                Screw
 FRAME COVERS
 FRONT COVER REMOVAL
 Remove the screw on the front of the front
 cover.
 Remove the six screws on the back of the
 front cover.
 Remove the front cover.
 The installation sequence is the reverse of
 removal.


                                                Front Cover                Screws




                                                Handlebar Front Cover Handlebar Rear Cover
 HANDLEBAR FRONT/REAR COVER
 REMOVAL
 HANDLEBAR FRONT COVER REMOVAL
 Remove the handlebar front cover screw.
 Remove the two screws attaching the
 handlebar front cover.
 Disconnect the headlight wire connector and
 remove the handlebar front cover.




                                                     Screw                Screws
 HANDLEBAR REAR COVER REMOVAL
 Disconnect the speedometer cable, right and                          Handlebar Front Cover
 left handlebar switch couplers, and the stop
 switch wire connectors.
 Remove the bolt attaching the handlebar rear
 cover.
 Remove two screws inside the handlebar rear
 cover and remove the handlebar rear cover.
 The installation sequence is the reverse of
 removal.




                                                        Bolt
                                                                                       2-2
