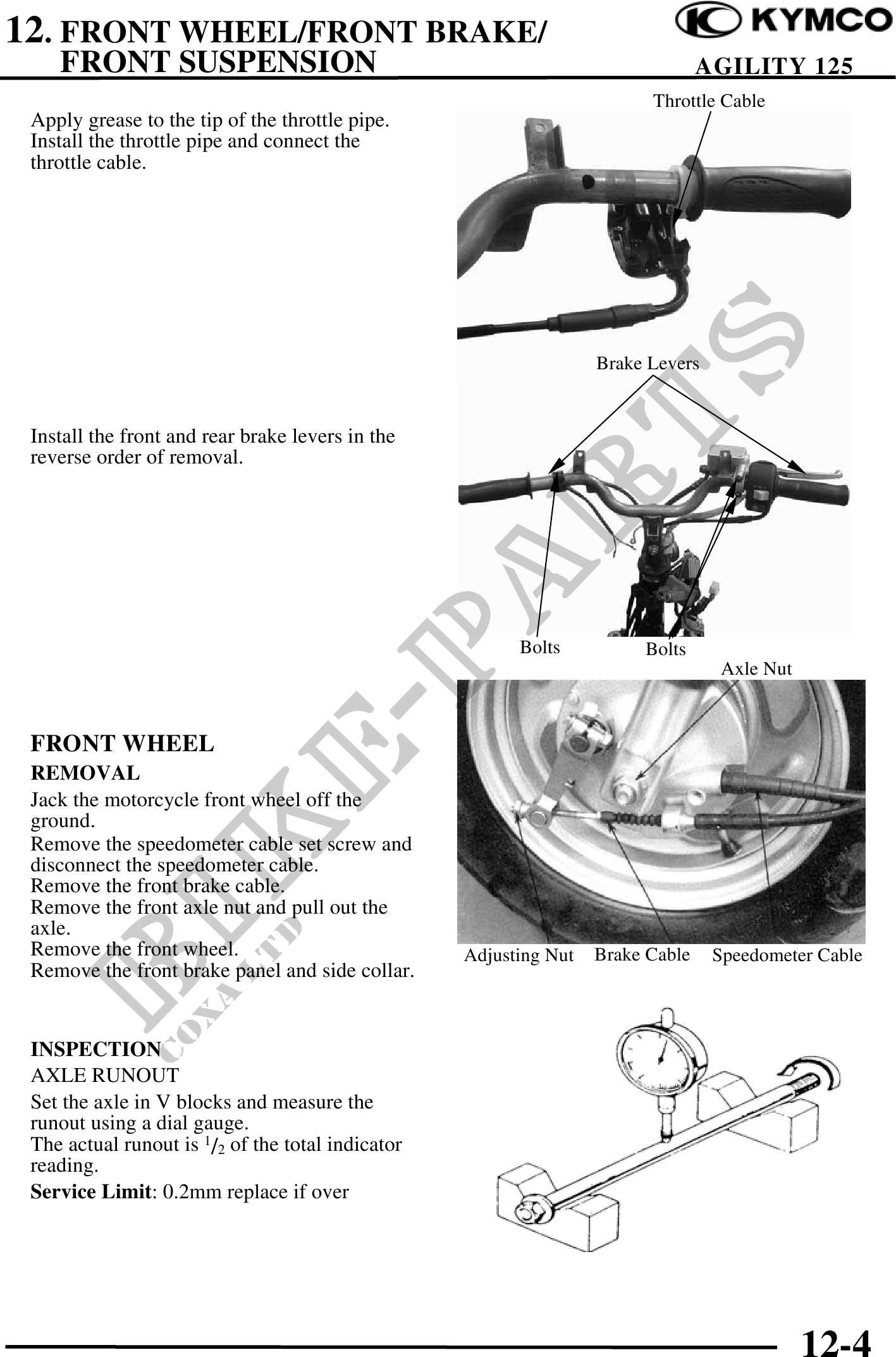

          12. FRONT WHEEL/FRONT BRAKE/
    FRONT SUSPENSION                                                             AGILITY 125
                                                                         Throttle Cable
 Apply grease to the tip of the throttle pipe.
 Install the throttle pipe and connect the
 throttle cable.




                                                                   Brake Levers


 Install the front and rear brake levers in the
 reverse order of removal.




                                                         Bolts          Bolts
                                                                                  Axle Nut


 FRONT WHEEL
 REMOVAL
 Jack the motorcycle front wheel off the
 ground.
 Remove the speedometer cable set screw and
 disconnect the speedometer cable.
 Remove the front brake cable.
 Remove the front axle nut and pull out the
 axle.
 Remove the front wheel.                           Adjusting Nut   Brake Cable    Speedometer Cable
 Remove the front brake panel and side collar.


 INSPECTION
 AXLE RUNOUT
 Set the axle in V blocks and measure the
 runout using a dial gauge.
 The actual runout is 1/2 of the total indicator
 reading.
 Service Limit: 0.2mm replace if over




                                                                                             12-4
