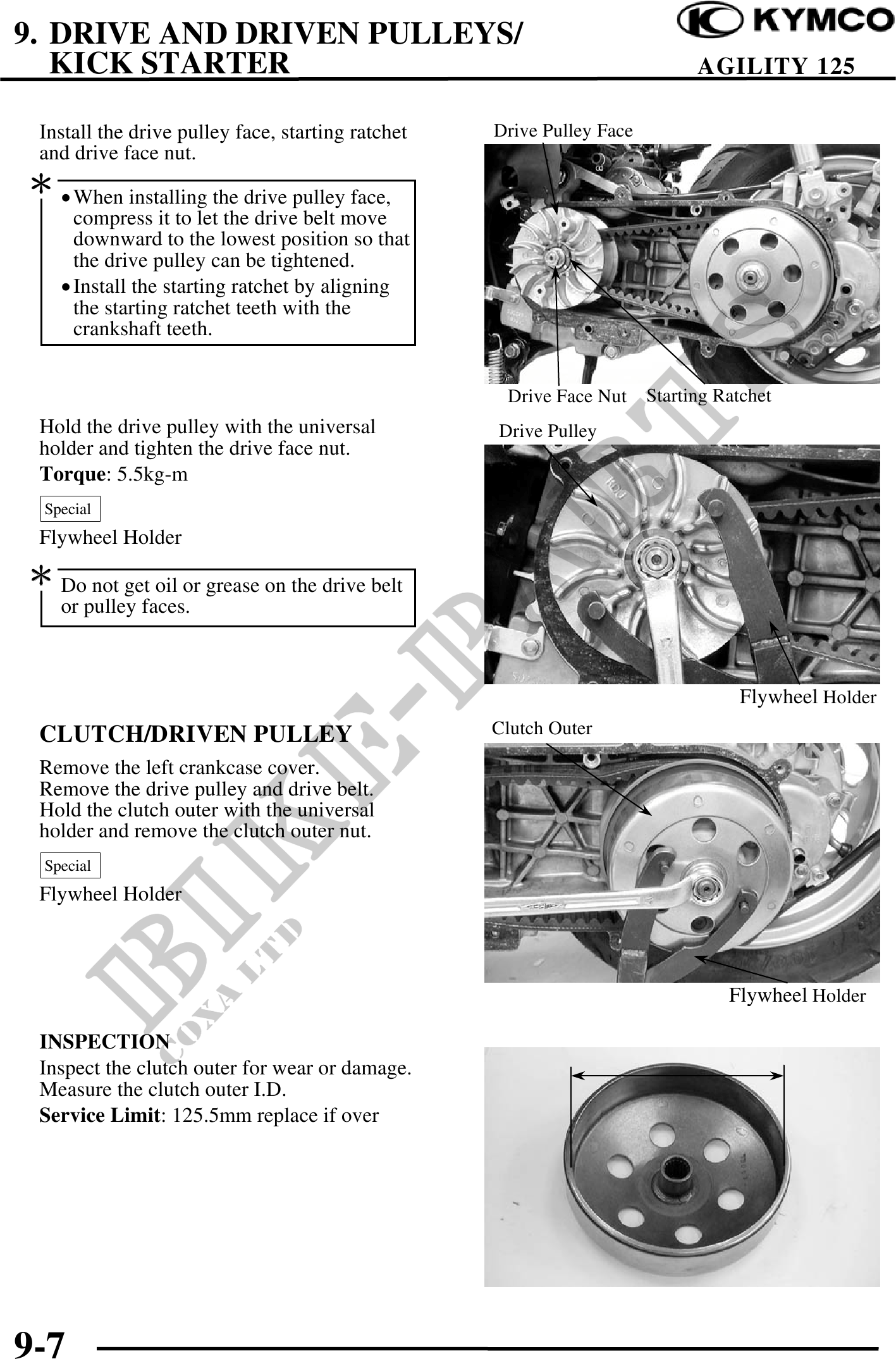

          9. DRIVE AND DRIVEN PULLEYS/
   KICK STARTER                                                              AGILITY 125

 Install the drive pulley face, starting ratchet   Drive Pulley Face
 and drive face nut.
 · When installing the drive pulley face,
      compress it to let the drive belt move
      downward to the lowest position so that
      the drive pulley can be tightened.
    · Install the starting ratchet by aligning
      the starting ratchet teeth with the
      crankshaft teeth.


                                                    Drive Face Nut     Starting Ratchet
 Hold the drive pulley with the universal          Drive Pulley
 holder and tighten the drive face nut.
 Torque: 5.5kg-m
  Special
 Flywheel Holder
 Do not get oil or grease on the drive belt
    or pulley faces.



                                                                                  Flywheel Holder
 CLUTCH/DRIVEN PULLEY                              Clutch Outer

 Remove the left crankcase cover.
 Remove the drive pulley and drive belt.
 Hold the clutch outer with the universal
 holder and remove the clutch outer nut.
  Special
 Flywheel Holder



                                                                                 Flywheel Holder

 INSPECTION
 Inspect the clutch outer for wear or damage.
 Measure the clutch outer I.D.
 Service Limit: 125.5mm replace if over




9-7
