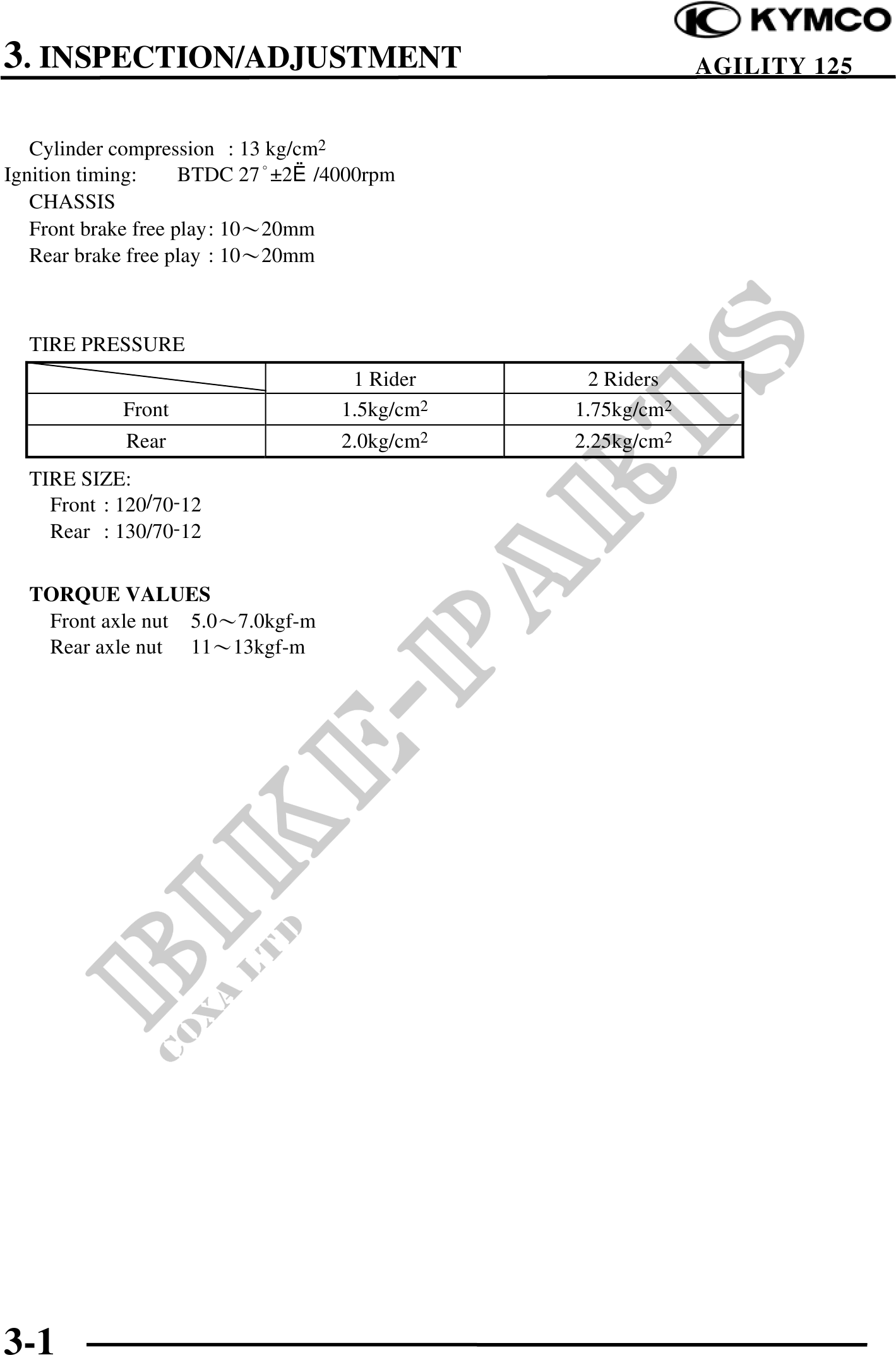

          3. INSPECTION/ADJUSTMENT                                  AGILITY 125


   Cylinder compression : 13 kg/cm2
Ignition timing:     BTDC 27°2°/4000rpm
   CHASSIS
   Front brake free play: 1020mm
   Rear brake free play : 1020mm



  TIRE PRESSURE
                                  1 Rider      2 Riders
            Front                1.5kg/cm2   1.75kg/cm2
            Rear                 2.0kg/cm2   2.25kg/cm2
  TIRE SIZE:
    Front : 120/70-12
    Rear : 130/70-12


  TORQUE VALUES
   Front axle nut 5.07.0kgf-m
   Rear axle nut 1113kgf-m




3-1
