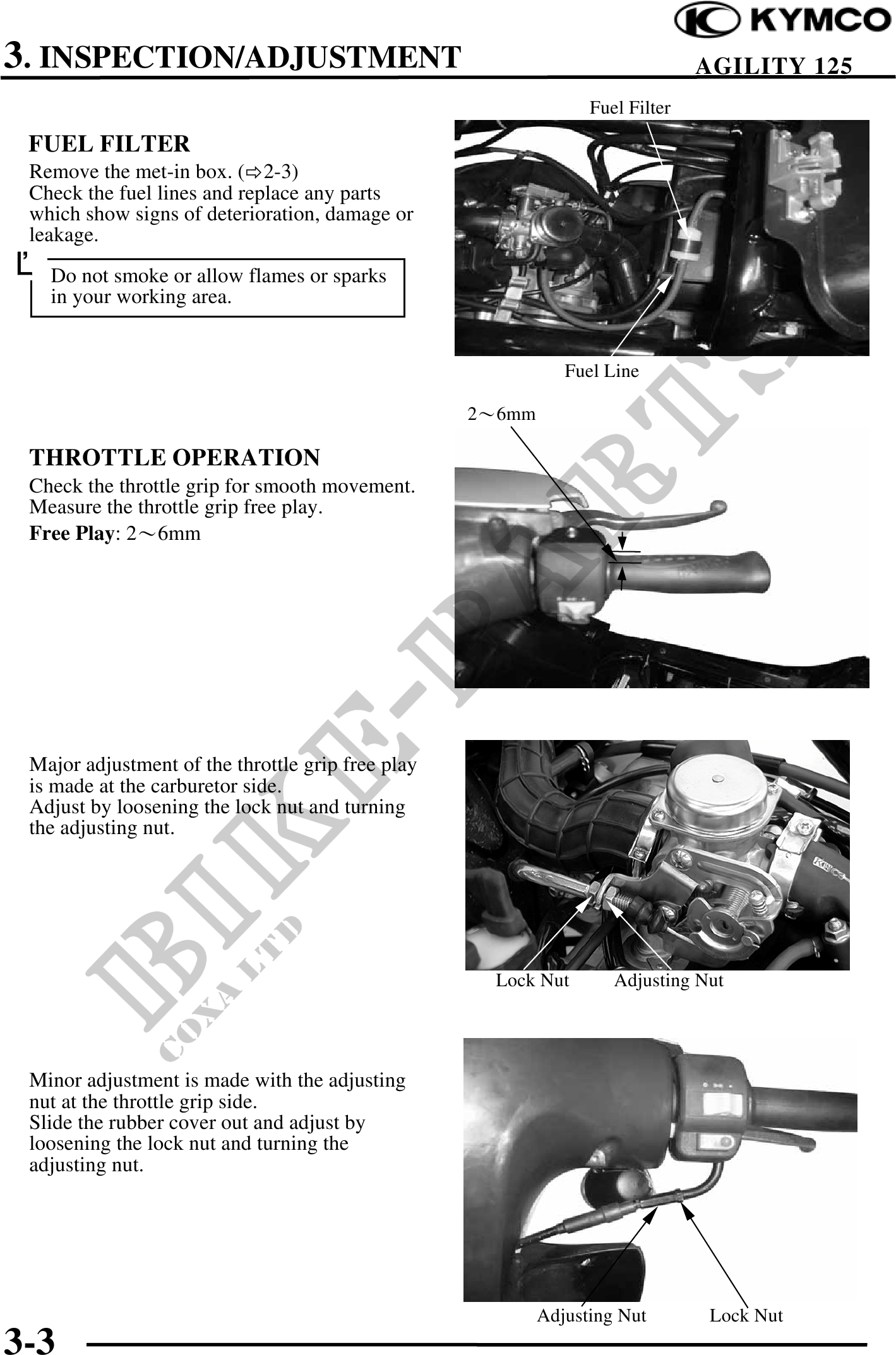

          3. INSPECTION/ADJUSTMENT                                                      AGILITY 125
                                                                Fuel Filter
 FUEL FILTER
 Remove the met-in box. ( 2-3)
 Check the fuel lines and replace any parts
 which show signs of deterioration, damage or
 leakage.
 Do not smoke or allow flames or sparks
   in your working area.


                                                             Fuel Line

                                                   26mm

 THROTTLE OPERATION
 Check the throttle grip for smooth movement.
 Measure the throttle grip free play.
 Free Play: 26mm




 Major adjustment of the throttle grip free play
 is made at the carburetor side.
 Adjust by loosening the lock nut and turning
 the adjusting nut.




                                                    Lock Nut       Adjusting Nut




 Minor adjustment is made with the adjusting
 nut at the throttle grip side.
 Slide the rubber cover out and adjust by
 loosening the lock nut and turning the
 adjusting nut.




                                                          Adjusting Nut        Lock Nut
3-3
