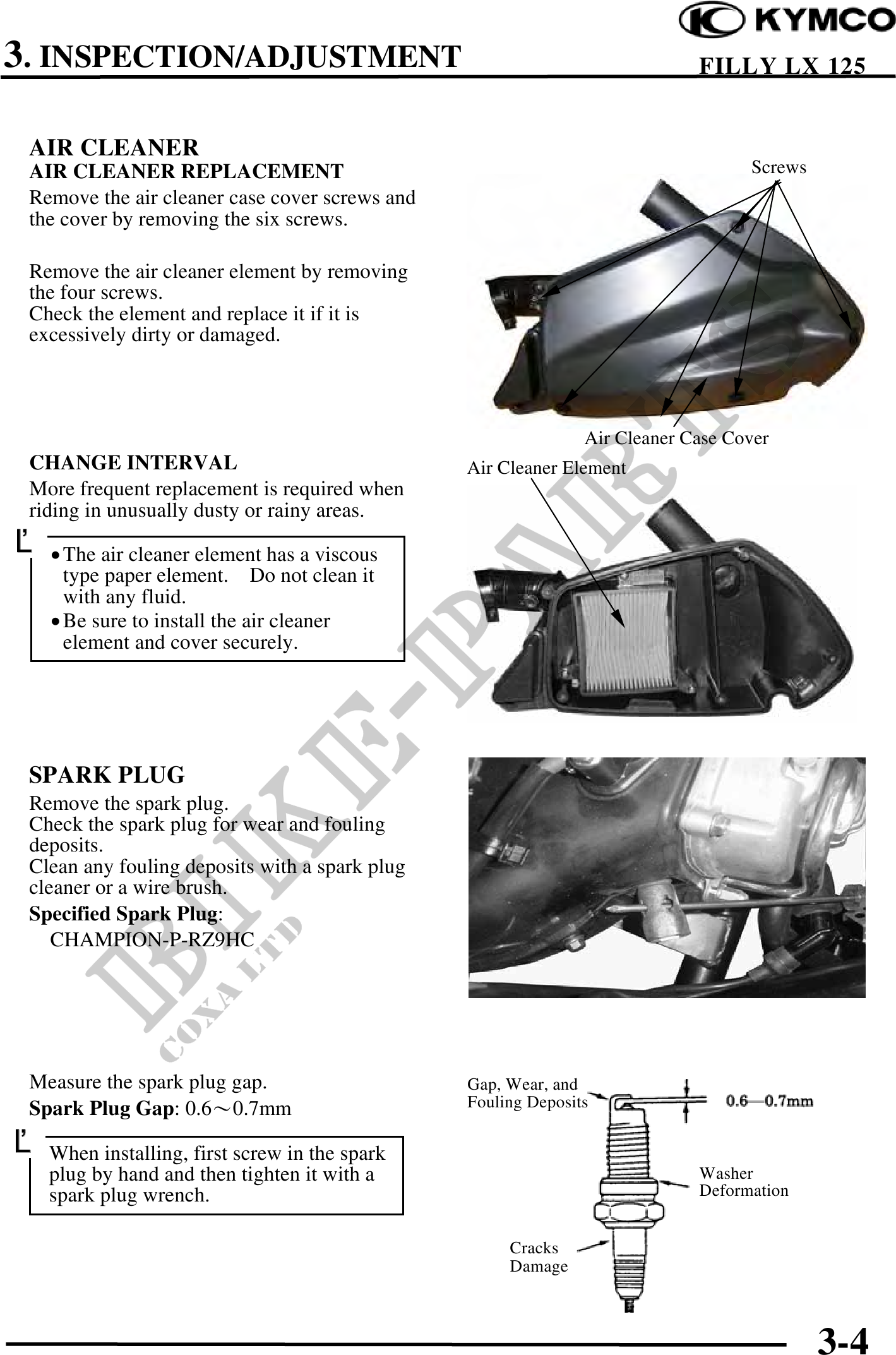

          3. INSPECTION/ADJUSTMENT                                                    FILLY LX 125


 AIR CLEANER
 AIR CLEANER REPLACEMENT                                                          Screws
 Remove the air cleaner case cover screws and
 the cover by removing the six screws.

 Remove the air cleaner element by removing
 the four screws.
 Check the element and replace it if it is
 excessively dirty or damaged.



                                                               Air Cleaner Case Cover
 CHANGE INTERVAL                                Air Cleaner Element
 More frequent replacement is required when
 riding in unusually dusty or rainy areas.
 · The air cleaner element has a viscous
      type paper element. Do not clean it
      with any fluid.
    · Be sure to install the air cleaner
      element and cover securely.




 SPARK PLUG
 Remove the spark plug.
 Check the spark plug for wear and fouling
 deposits.
 Clean any fouling deposits with a spark plug
 cleaner or a wire brush.
 Specified Spark Plug:
    CHAMPION-P-RZ9HC




 Measure the spark plug gap.                    Gap, Wear, and
 Spark Plug Gap: 0.60.7mm                       Fouling Deposits

 When installing, first screw in the spark
    plug by hand and then tighten it with a                                 Washer
    spark plug wrench.                                                      Deformation


                                                     Cracks
                                                     Damage



                                                                                           3-4
