          15. ELECTRICAL EQUIPMENT                                                                                                           SUPER8 50 2T

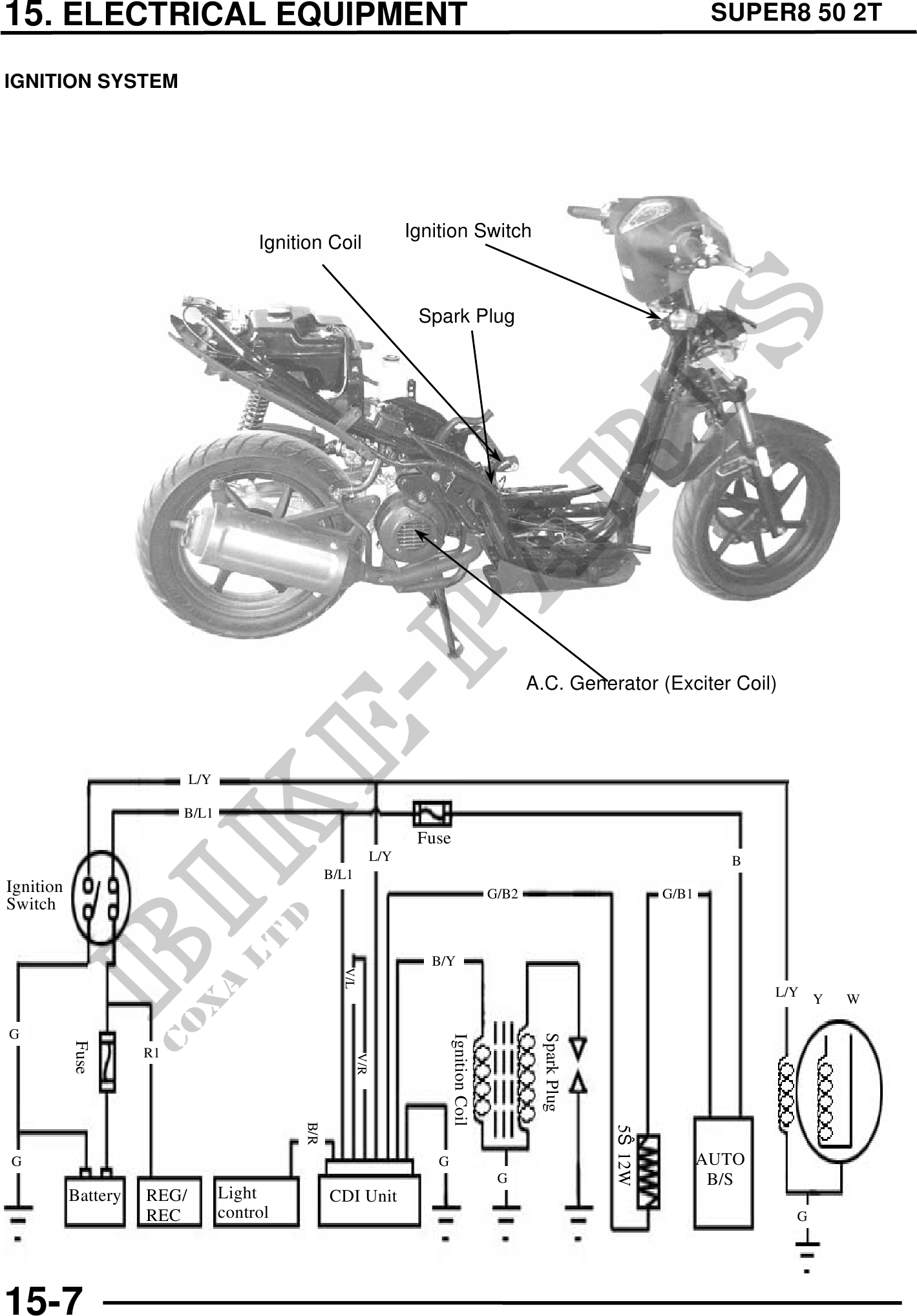

IGNITION SYSTEM




                                                                     Ignition Switch
                                       Ignition Coil


                                                                      Spark Plug




                                                                                                    A.C. Generator (Exciter Coil)



                            L/Y

                          B/L1
                                                                      Fuse
                                                               L/Y                                                                  B
                                                  B/L1
Ignition                                                                                     G/B2                          G/B1
Switch


                                                                        B/Y
                                                    V/L




                                                                                                                                         L/Y Y   W

G
                                                                                                     Spark Plug
                                                                             Ignition Coil
           Fuse




                     R1
                                                         V/R
                                            B/R




                                                                                                                  5

                                                                                                                  12W




G                                                                        G                                                        AUTO
                                                                                              G                                    B/S
           Battery   REG/         Light           CDI Unit
                     REC          control                                                                                                  G




15-7
