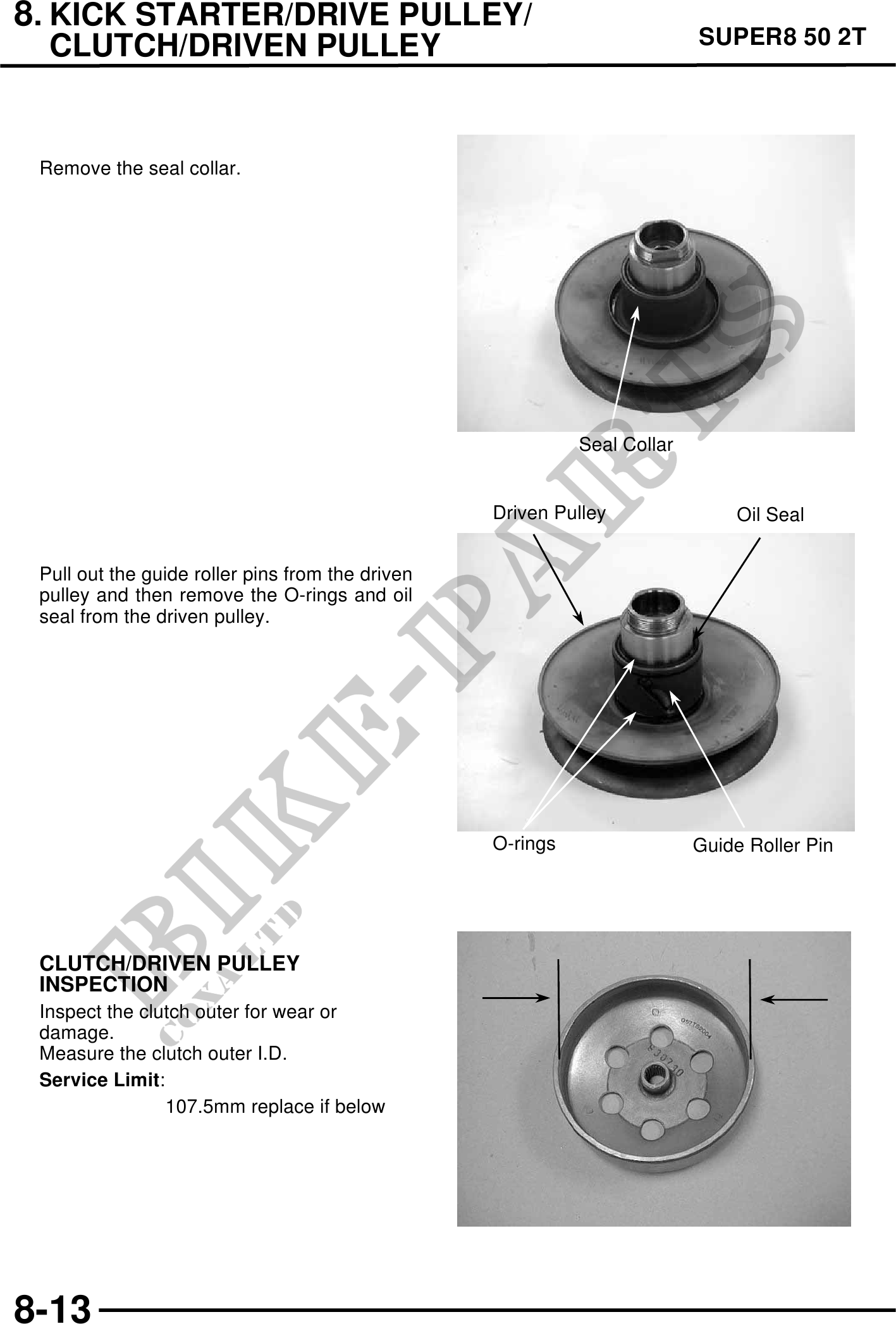

          8. KICK STARTER/DRIVE PULLEY/
  CLUTCH/DRIVEN PULLEY                                                    SUPER8 50 2T




 Remove the seal collar.




                                                            Seal Collar


                                                  Driven Pulley               Oil Seal


 Pull out the guide roller pins from the driven
 pulley and then remove the O-rings and oil
 seal from the driven pulley.




                                                  O-rings                 Guide Roller Pin




 CLUTCH/DRIVEN PULLEY
 INSPECTION
 Inspect the clutch outer for wear or
 damage.
 Measure the clutch outer I.D.
 Service Limit:
                107.5mm replace if below




8-13
