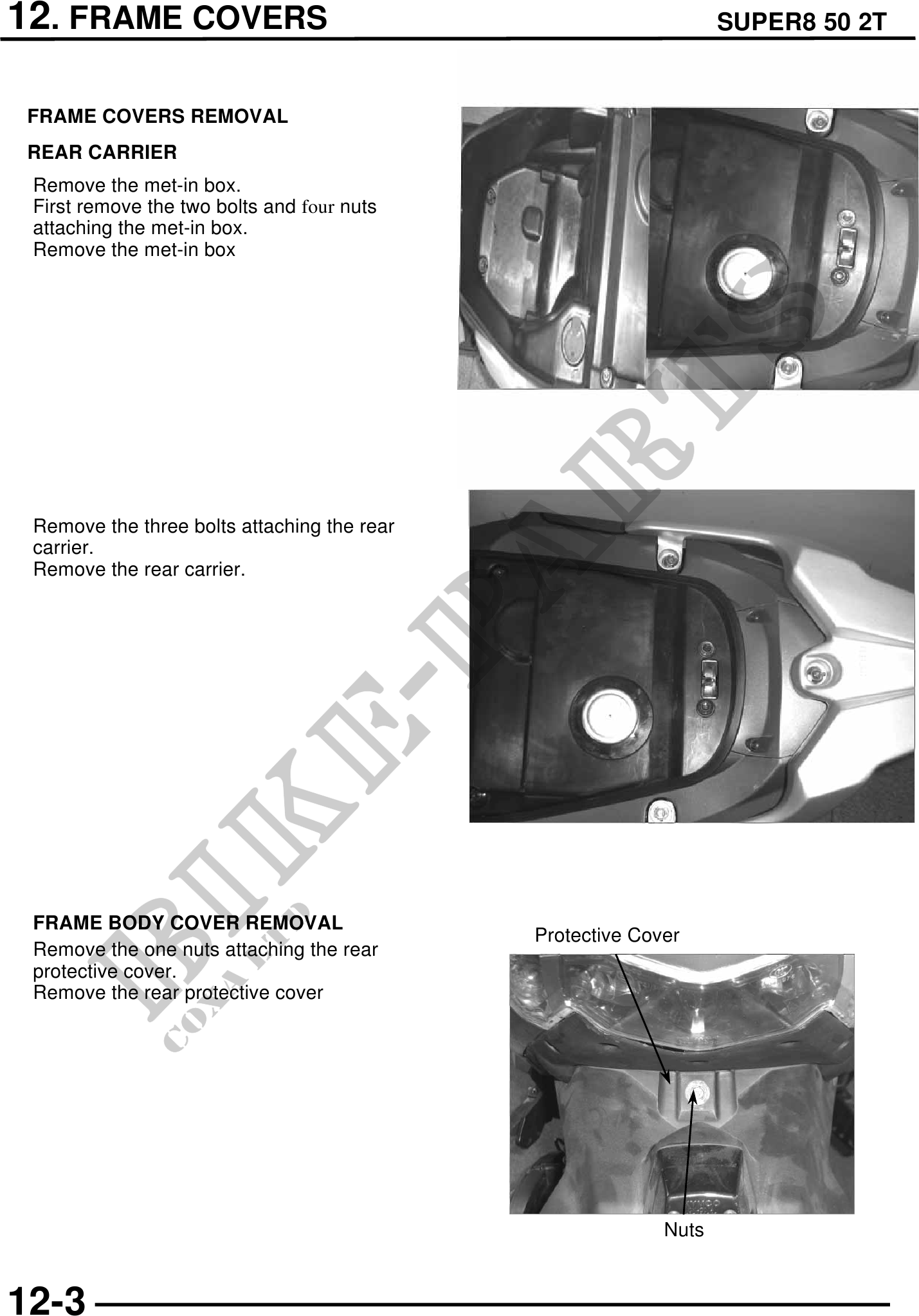

12. FRAME COVERS SUPER8 50 2T
Bolts
FRAME COVERS REMOVAL
REAR CARRIER
Remove the met-in box.
First remove the two bolts and four nuts
attaching the met-in box.
Remove the met-in box
Bolts
Remove the three bolts attaching the rear
carrier.
Remove the rear carrier.
FRAME BODY COVER REMOVAL
Protective Cover
Remove the one nuts attaching the rear
protective cover.
Remove the rear protective cover
Nuts
12-3
