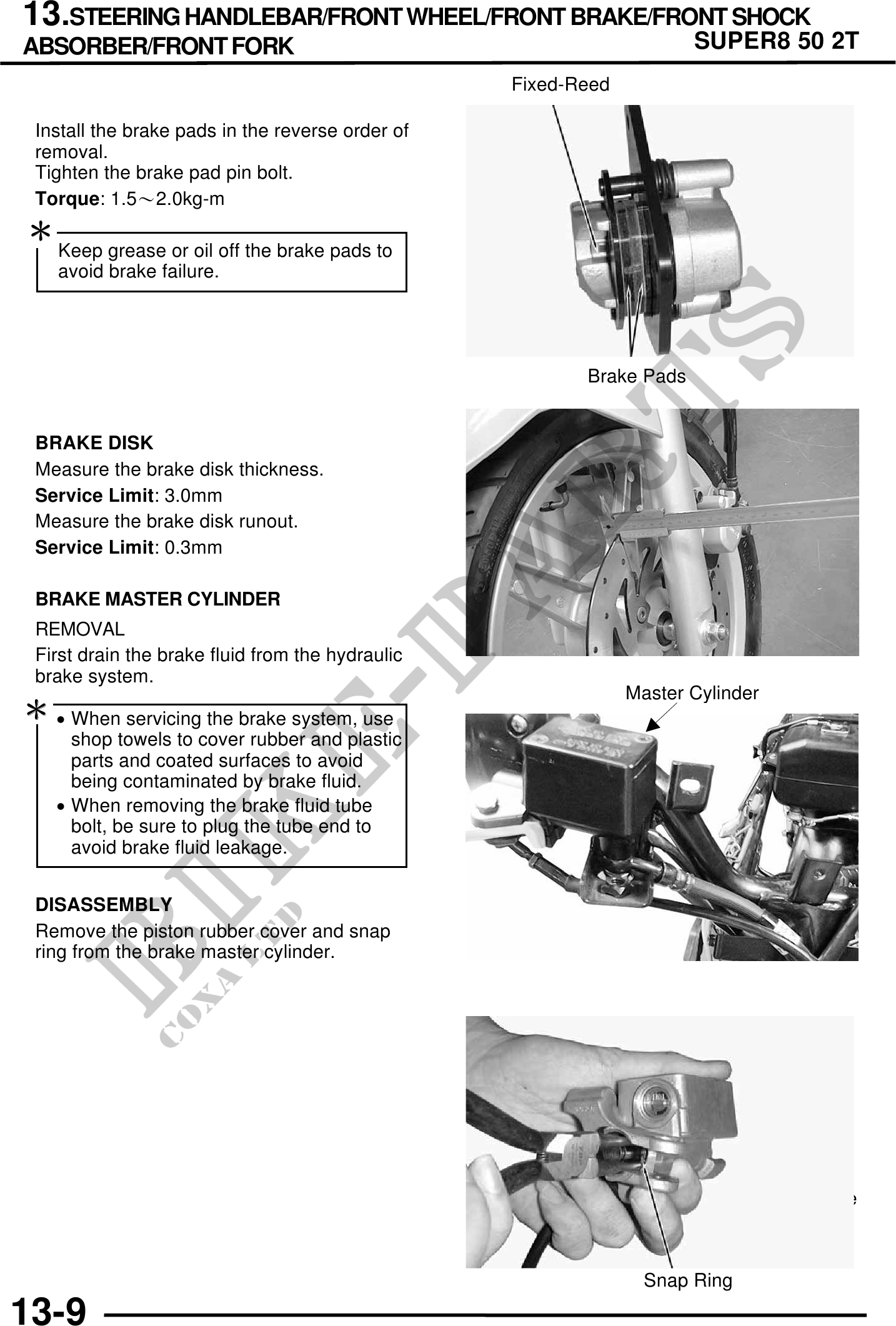

13.STEERING HANDLEBAR/FRONT WHEEL/FRONT BRAKE/FRONT SHOCK ABSORBER/FRONT FORK SUPER8 50 2T Fixed-Reed Install the brake pads in the reverse order of removal. Tighten the brake pad pin bolt. Torque: 1.52.0kg-m Keep grease or oil off the brake pads to avoid brake failure. Brake Pads BRAKE DISK Measure the brake disk thickness. Service Limit: 3.0mm Measure the brake disk runout. Service Limit: 0.3mm BRAKE MASTER CYLINDER REMOVAL First drain the brake fluid from the hydraulic brake system. Master Cylinder · When servicing the brake system, use shop towels to cover rubber and plastic parts and coated surfaces to avoid being contaminated by brake fluid. · When removing the brake fluid tube bolt, be sure to plug the tube end to avoid brake fluid leakage. DISASSEMBLY Remove the piston rubber cover and snap ring from the brake master cylinder. Remove the main piston and spring from the brake master cylinder. Clean the inside of the master cylinder and brake reservoir with brake fluid. Snap Ring 13-9
