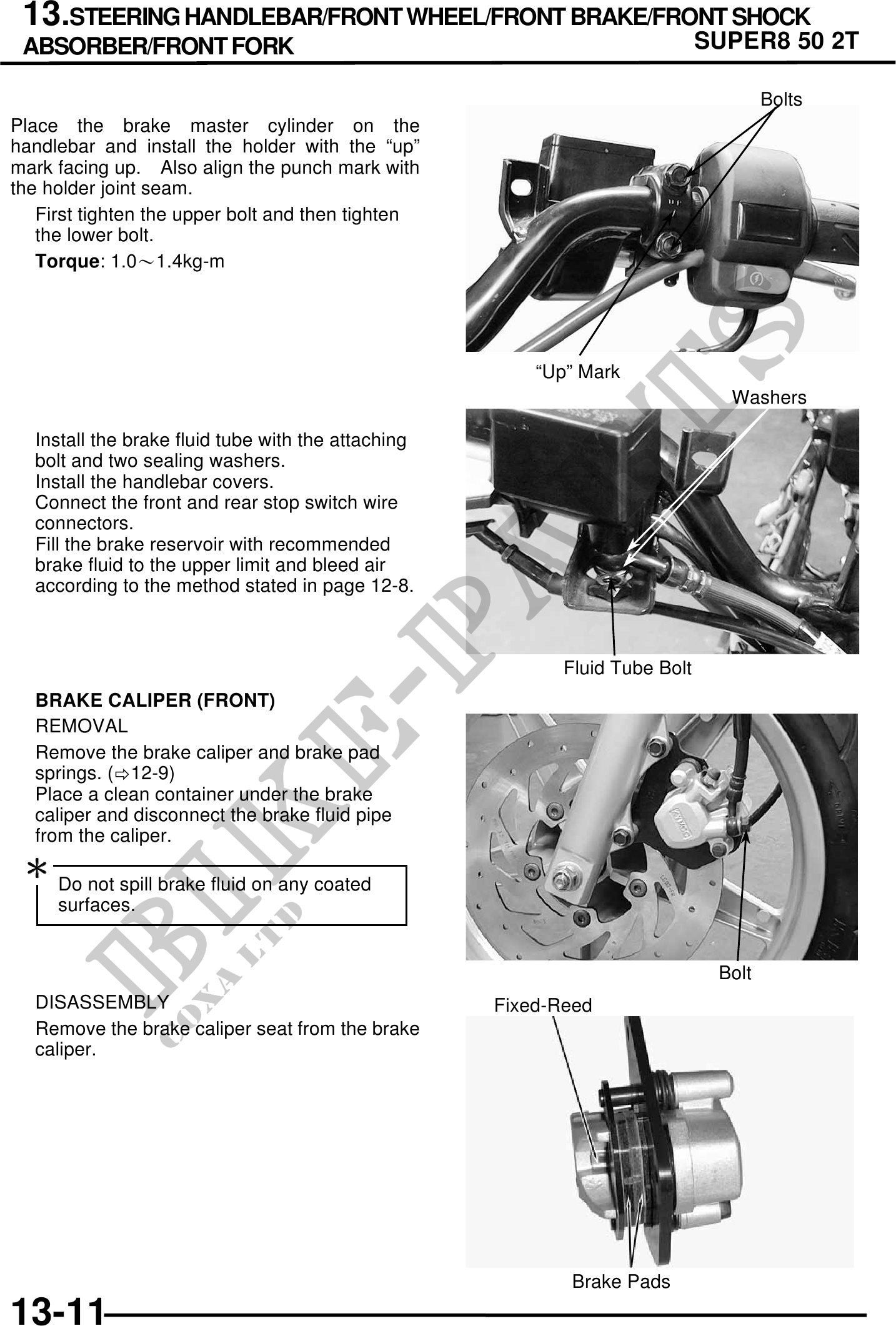

           13.STEERING HANDLEBAR/FRONT WHEEL/FRONT BRAKE/FRONT SHOCK
 ABSORBER/FRONT FORK                                                         SUPER8 50 2T

                                                                                     Bolts
Place the brake master cylinder on the
handlebar and install the holder with the "up"
mark facing up. Also align the punch mark with
the holder joint seam.
   First tighten the upper bolt and then tighten
   the lower bolt.
   Torque: 1.01.4kg-m




                                                        "Up" Mark
                                                                               Washers

  Install the brake fluid tube with the attaching
  bolt and two sealing washers.
  Install the handlebar covers.
  Connect the front and rear stop switch wire
  connectors.
  Fill the brake reservoir with recommended
  brake fluid to the upper limit and bleed air
  according to the method stated in page 12-8.



                                                           Fluid Tube Bolt
  BRAKE CALIPER (FRONT)
  REMOVAL
  Remove the brake caliper and brake pad
  springs. ( 12-9)
  Place a clean container under the brake
  caliper and disconnect the brake fluid pipe
  from the caliper.
  Do not spill brake fluid on any coated
     surfaces.


                                                                              Bolt
  DISASSEMBLY                                       Fixed-Reed
  Remove the brake caliper seat from the brake
  caliper.




                                                            Brake Pads
13-11
