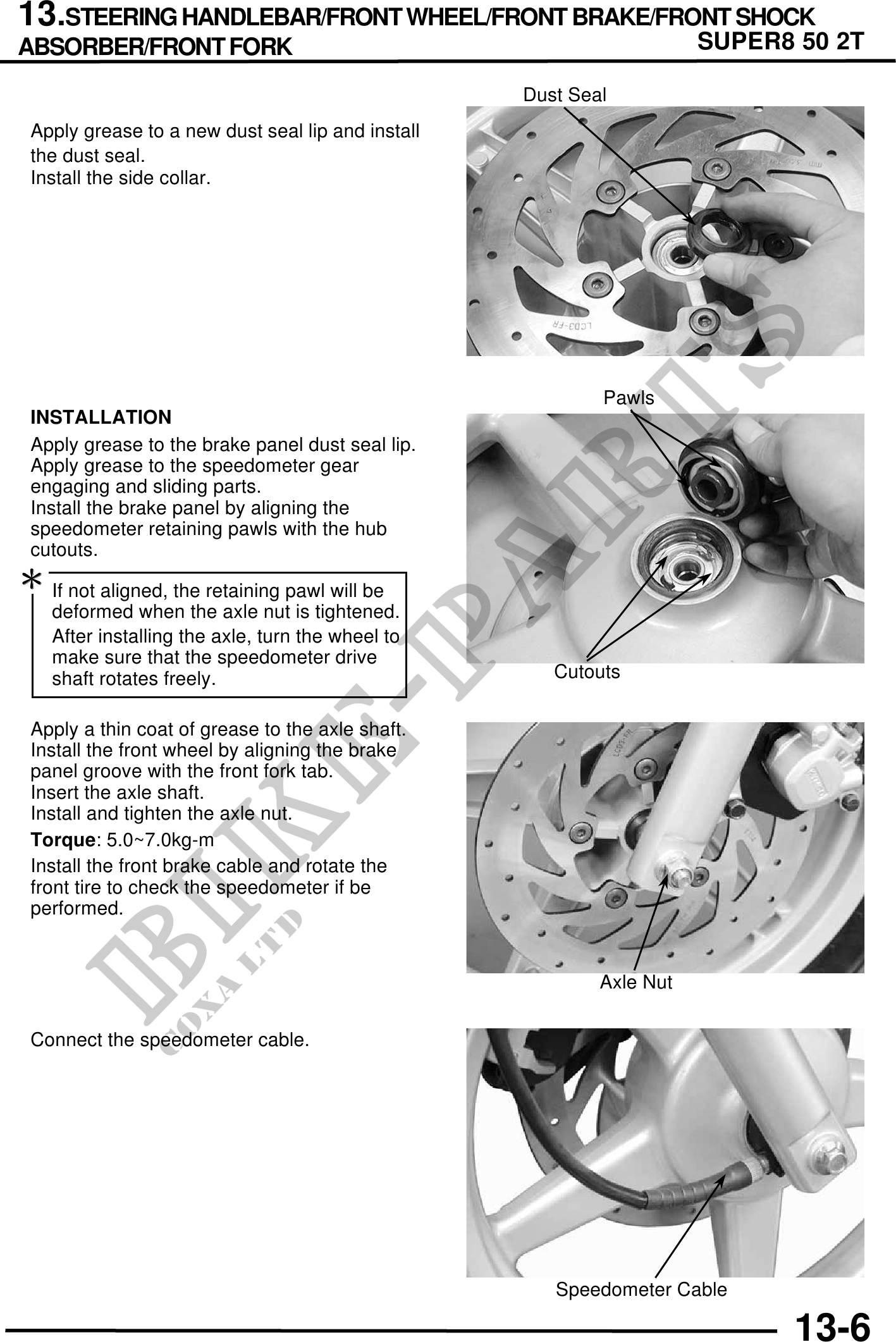

          13.STEERING HANDLEBAR/FRONT WHEEL/FRONT BRAKE/FRONT SHOCK
ABSORBER/FRONT FORK                                                   SUPER8 50 2T

                                                   Dust Seal
 Apply grease to a new dust seal lip and install
 the dust seal.
 Install the side collar.




                                                           Pawls
 INSTALLATION
 Apply grease to the brake panel dust seal lip.
 Apply grease to the speedometer gear
 engaging and sliding parts.
 Install the brake panel by aligning the
 speedometer retaining pawls with the hub
 cutouts.
 If not aligned, the retaining pawl will be
    deformed when the axle nut is tightened.
    After installing the axle, turn the wheel to
    make sure that the speedometer drive
    shaft rotates freely.                             Cutouts

 Apply a thin coat of grease to the axle shaft.
 Install the front wheel by aligning the brake
 panel groove with the front fork tab.
 Insert the axle shaft.
 Install and tighten the axle nut.
 Torque: 5.0~7.0kg-m
 Install the front brake cable and rotate the
 front tire to check the speedometer if be
 performed.


                                                           Axle Nut

 Connect the speedometer cable.




                                                      Speedometer Cable
