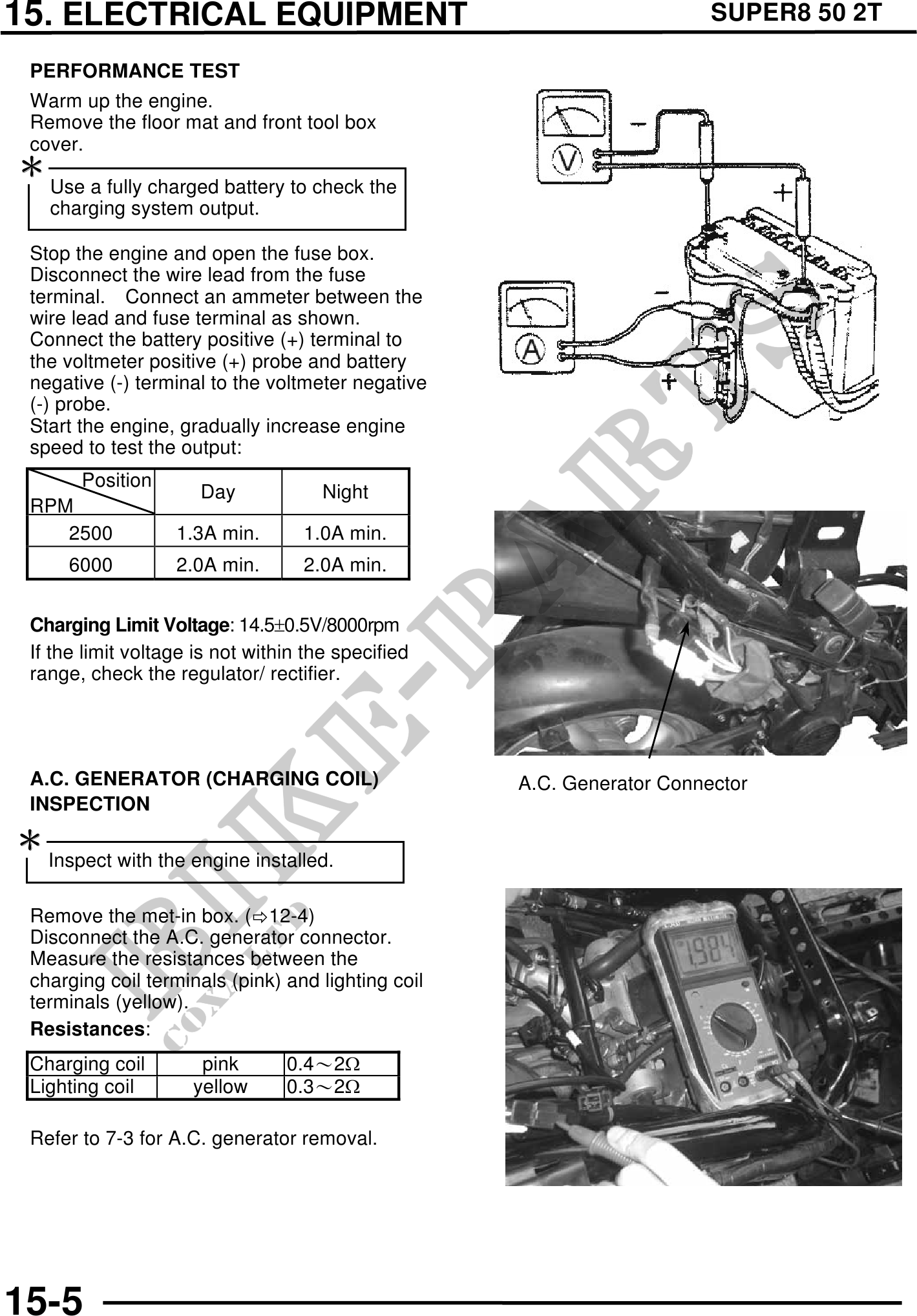

          15. ELECTRICAL EQUIPMENT                                                SUPER8 50 2T

 PERFORMANCE TEST
 Warm up the engine.
 Remove the floor mat and front tool box
 cover.

   Use a fully charged battery to check the
   charging system output.

 Stop the engine and open the fuse box.
 Disconnect the wire lead from the fuse
 terminal. Connect an ammeter between the
 wire lead and fuse terminal as shown.
 Connect the battery positive (+) terminal to
 the voltmeter positive (+) probe and battery
 negative (-) terminal to the voltmeter negative
 (-) probe.
 Start the engine, gradually increase engine
 speed to test the output:
     Position
                      Day             Night
 RPM
    2500           1.3A min.       1.0A min.
     6000          2.0A min.       2.0A min.


 Charging Limit Voltage: 14.50.5V/8000rpm
 If the limit voltage is not within the specified
 range, check the regulator/ rectifier.




 A.C. GENERATOR (CHARGING COIL)                     A.C. Generator Connector
 INSPECTION

   Inspect with the engine installed.

 Remove the met-in box. ( 12-4)
 Disconnect the A.C. generator connector.
 Measure the resistances between the
 charging coil terminals (pink) and lighting coil
 terminals (yellow).
 Resistances:
 Charging coil        pink       0.42
 Lighting coil       yellow      0.32

 Refer to 7-3 for A.C. generator removal.




15-5
