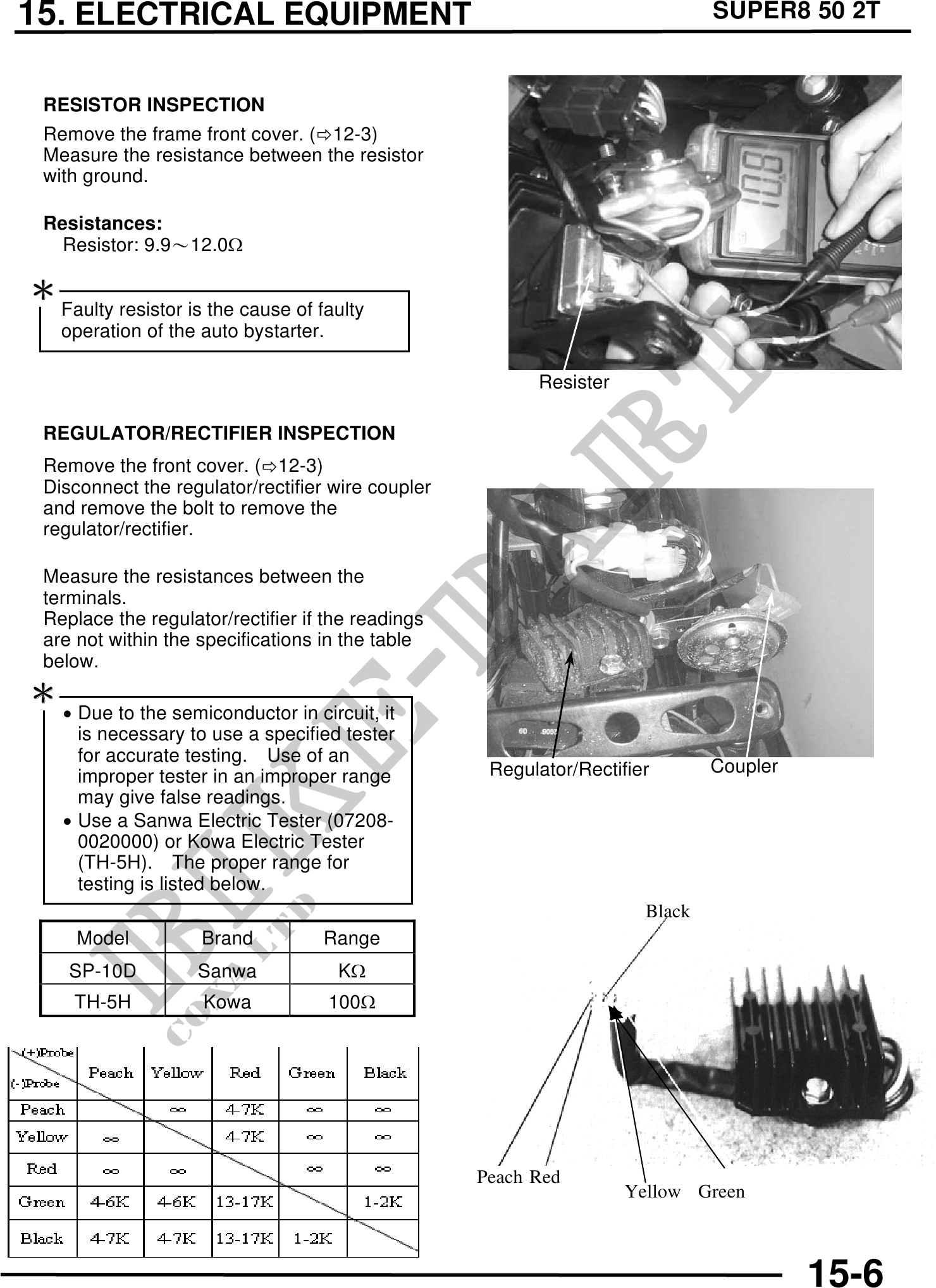

          15. ELECTRICAL EQUIPMENT                                                      SUPER8 50 2T


 RESISTOR INSPECTION
 Remove the frame front cover. ( 12-3)
 Measure the resistance between the resistor
 with ground.

 Resistances:
   Resistor: 9.912.0


   Faulty resistor is the cause of faulty
   operation of the auto bystarter.

                                                         Resister

 REGULATOR/RECTIFIER INSPECTION
 Remove the front cover. ( 12-3)
 Disconnect the regulator/rectifier wire coupler
 and remove the bolt to remove the
 regulator/rectifier.

 Measure the resistances between the
 terminals.
 Replace the regulator/rectifier if the readings
 are not within the specifications in the table
 below.

   · Due to the semiconductor in circuit, it
     is necessary to use a specified tester
     for accurate testing. Use of an
                                                    Regulator/Rectifier       Coupler
     improper tester in an improper range
     may give false readings.
   · Use a Sanwa Electric Tester (07208-
     0020000) or Kowa Electric Tester
     (TH-5H). The proper range for
     testing is listed below.
                                                                      Black
     Model          Brand          Range
    SP-10D          Sanwa            K
    TH-5H           Kowa            100




                                                   Peach Red
                                                                    Yellow Green



                                                                                        15-6
