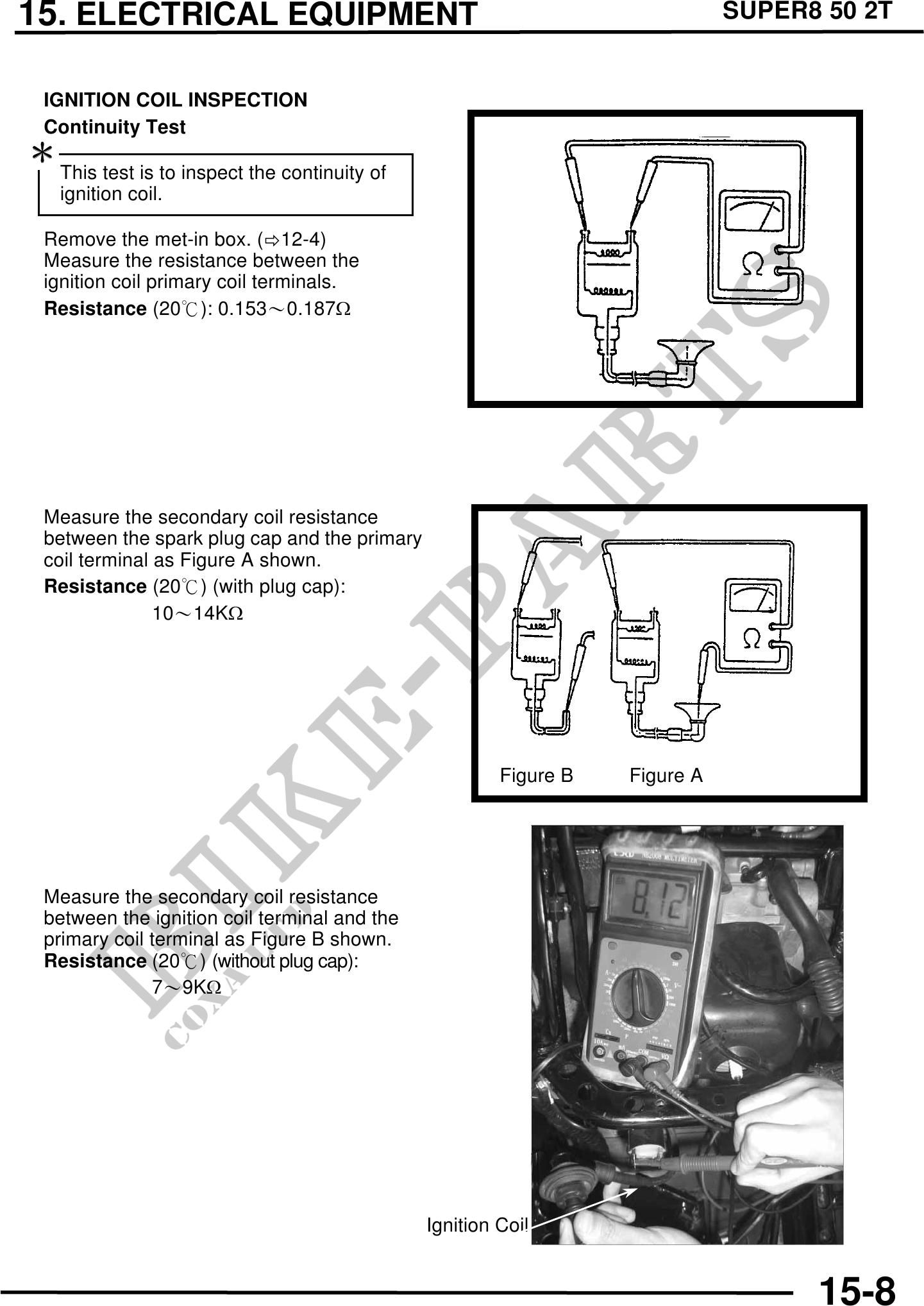

15. ELECTRICAL EQUIPMENT SUPER8 50 2T
IGNITION COIL INSPECTION
Continuity Test
This test is to inspect the continuity of
ignition coil.
Remove the met-in box. ( 12-4)
Measure the resistance between the
ignition coil primary coil terminals.
Resistance (20): 0.1530.187
Measure the secondary coil resistance
between the spark plug cap and the primary
coil terminal as Figure A shown.
Resistance (20) (with plug cap):
1014K
Figure B Figure A
Measure the secondary coil resistance
between the ignition coil terminal and the
primary coil terminal as Figure B shown.
Resistance (20) (without plug cap):
79K
Ignition Coil
15-8
