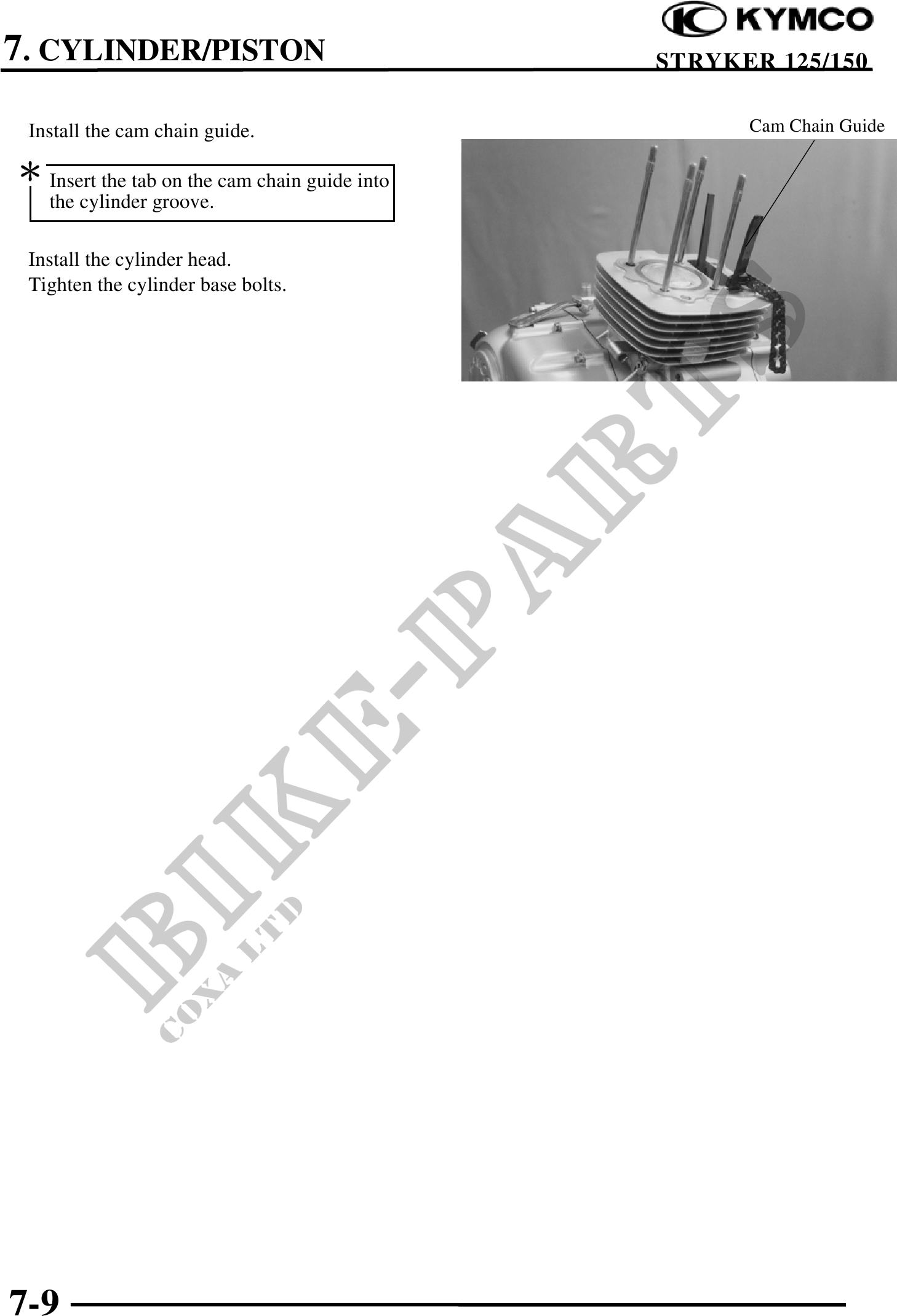

          7. CYLINDER/PISTON                            STRYKER 125/150

 Install the cam chain guide.                       Cam Chain Guide

 Insert the tab on the cam chain guide into
   the cylinder groove.

 Install the cylinder head.
 Tighten the cylinder base bolts.




7-9
