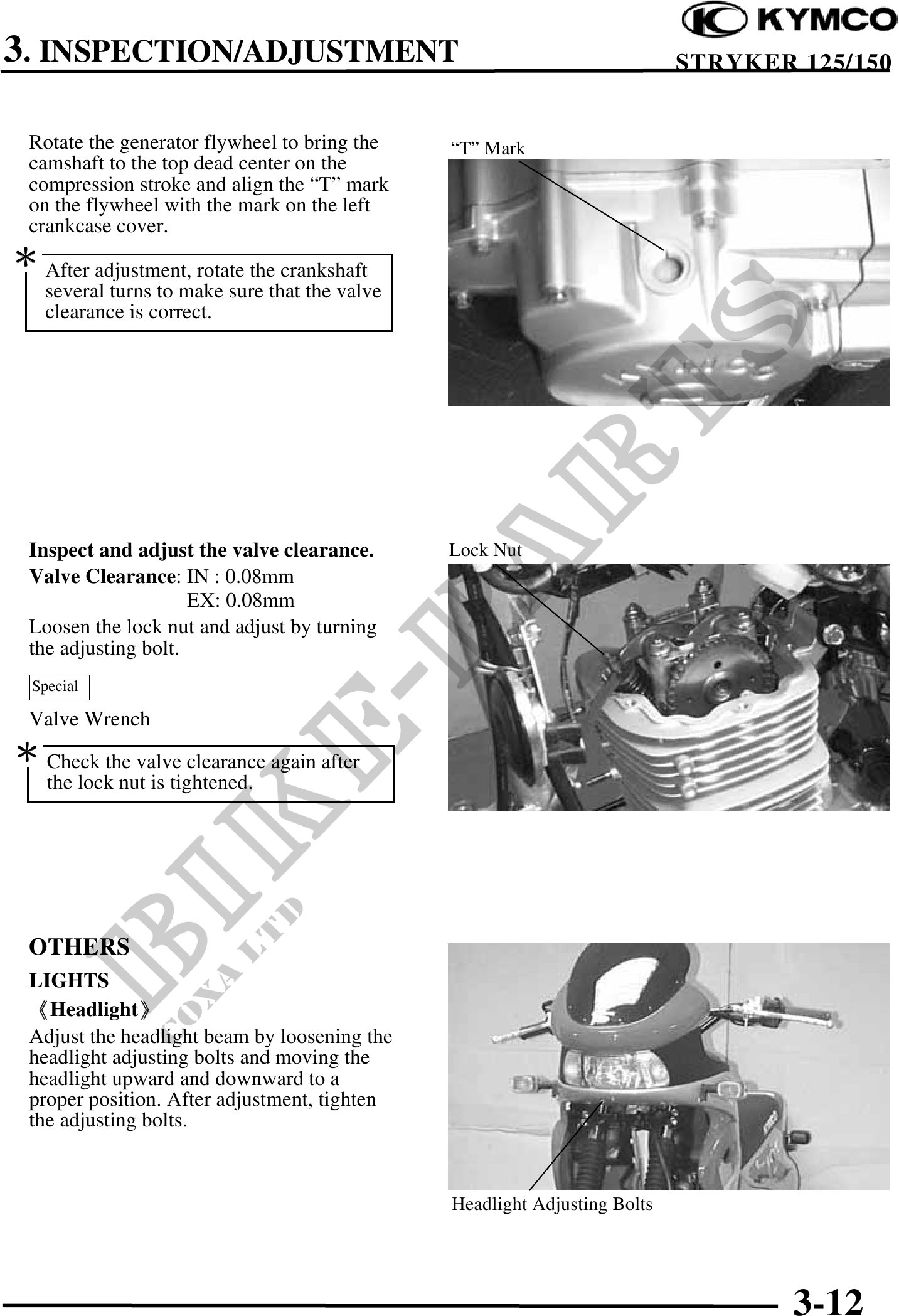

3. INSPECTION/ADJUSTMENT STRYKER 125/150
Rotate the generator flywheel to bring the "T" Mark
camshaft to the top dead center on the
compression stroke and align the "T" mark
on the flywheel with the mark on the left
crankcase cover.
After adjustment, rotate the crankshaft
several turns to make sure that the valve
clearance is correct.
Inspect and adjust the valve clearance. Lock Nut
Valve Clearance: IN : 0.08mm
EX: 0.08mm
Loosen the lock nut and adjust by turning
the adjusting bolt.
Special
Valve Wrench
Check the valve clearance again after
the lock nut is tightened.
OTHERS
LIGHTS
Headlight
Adjust the headlight beam by loosening the
headlight adjusting bolts and moving the
headlight upward and downward to a
proper position. After adjustment, tighten
the adjusting bolts.
Headlight Adjusting Bolts
