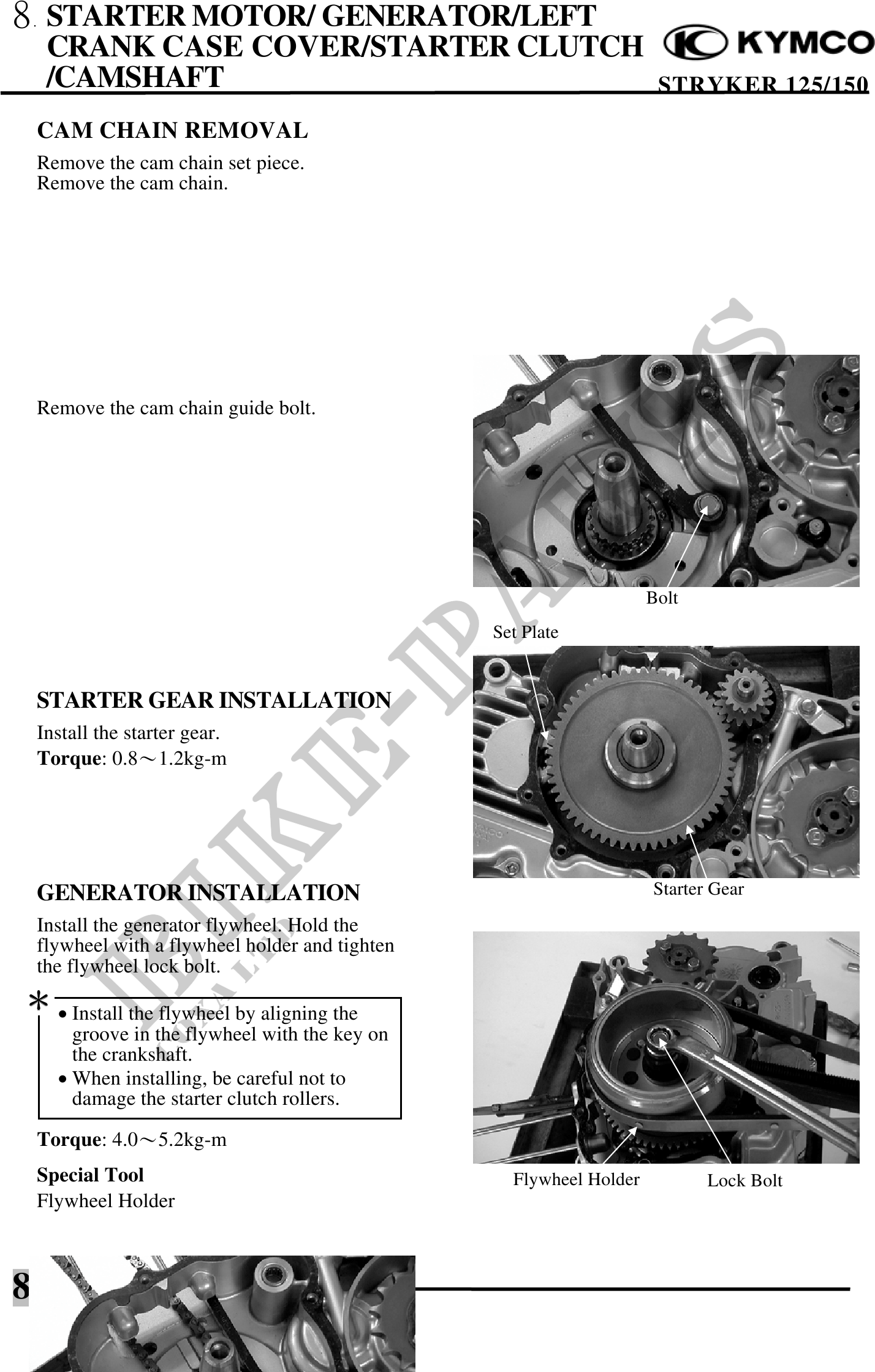

          8 STARTER MOTOR/ GENERATOR/LEFT
 .

     CRANK CASE COVER/STARTER CLUTCH
     /CAMSHAFT                                                       STRYKER 125/150
 CAM CHAIN REMOVAL
 Remove the cam chain set piece.
 Remove the cam chain.




 Remove the cam chain guide bolt.




                                                                    Bolt
                                                Set Plate


 STARTER GEAR INSTALLATION
 Install the starter gear.
 Torque: 0.81.2kg-m




 GENERATOR INSTALLATION                                             Starter Gear
 Install the generator flywheel. Hold the
 flywheel with a flywheel holder and tighten
 the flywheel lock bolt.
 · Install the flywheel by aligning the
       groove in the flywheel with the key on
       the crankshaft.
     · When installing, be careful not to
       damage the starter clutch rollers.

 Torque: 4.05.2kg-m
 Special Tool                                     Flywheel Holder          Lock Bolt
 Flywheel Holder



8-5
