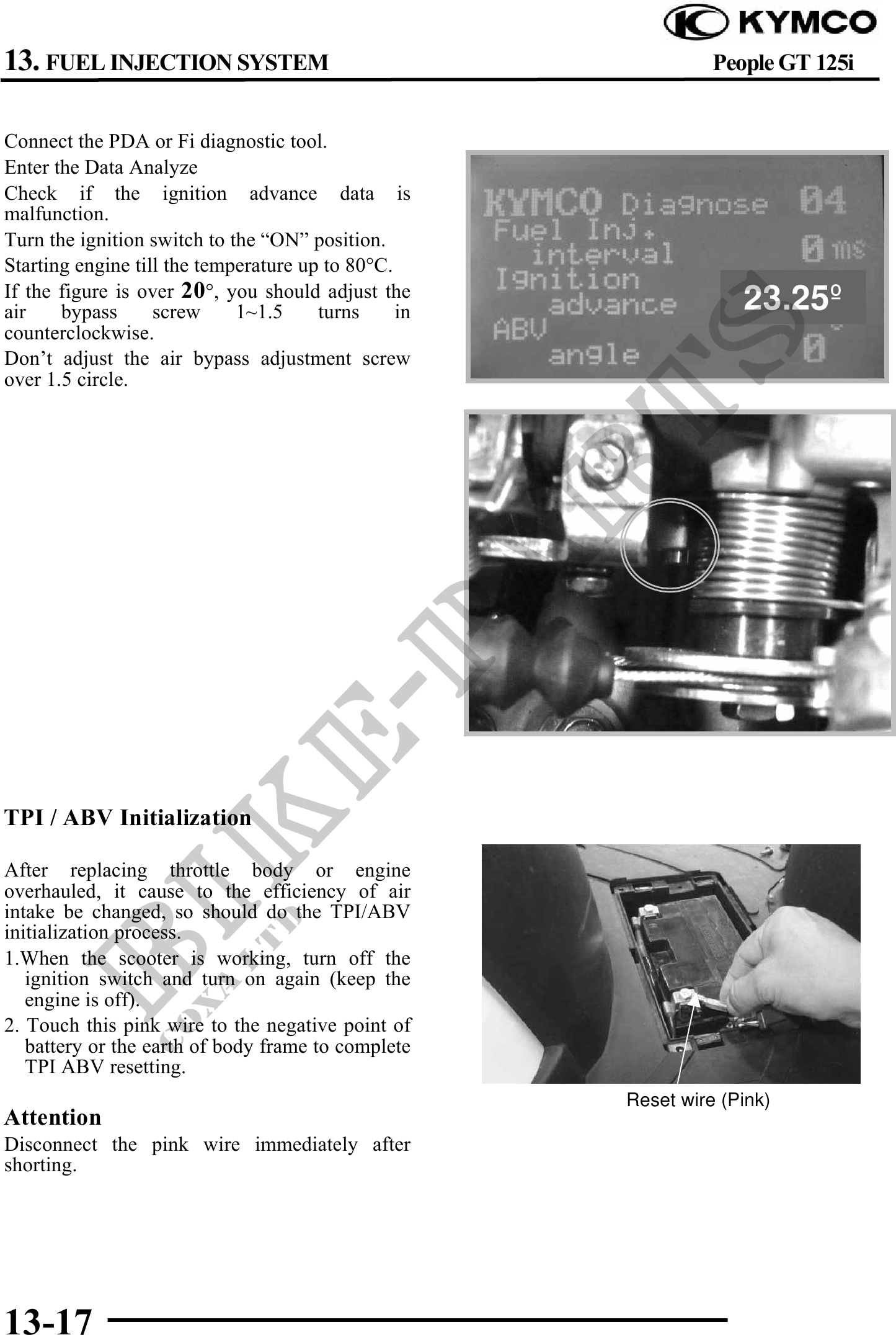

13. FUEL INJECTION SYSTEM People GT 125i
Connect the PDA or Fi diagnostic tool.
Enter the Data Analyze
Check if the ignition advance data is
malfunction.
Turn the ignition switch to the "ON" position.
Starting engine till the temperature up to 80°C.
If the figure is over 20°, you should adjust the
air bypass screw 1~1.5 turns in 23.25
counterclockwise.
Don't adjust the air bypass adjustment screw
over 1.5 circle.
TPI / ABV Initialization
After replacing throttle body or engine
overhauled, it cause to the efficiency of air
intake be changed, so should do the TPI/ABV
initialization process.
1.When the scooter is working, turn off the
ignition switch and turn on again (keep the
engine is off).
2. Touch this pink wire to the negative point of
battery or the earth of body frame to complete
TPI ABV resetting.
Reset wire (Pink)
Attention
Disconnect the pink wire immediately after
shorting.
13-17
