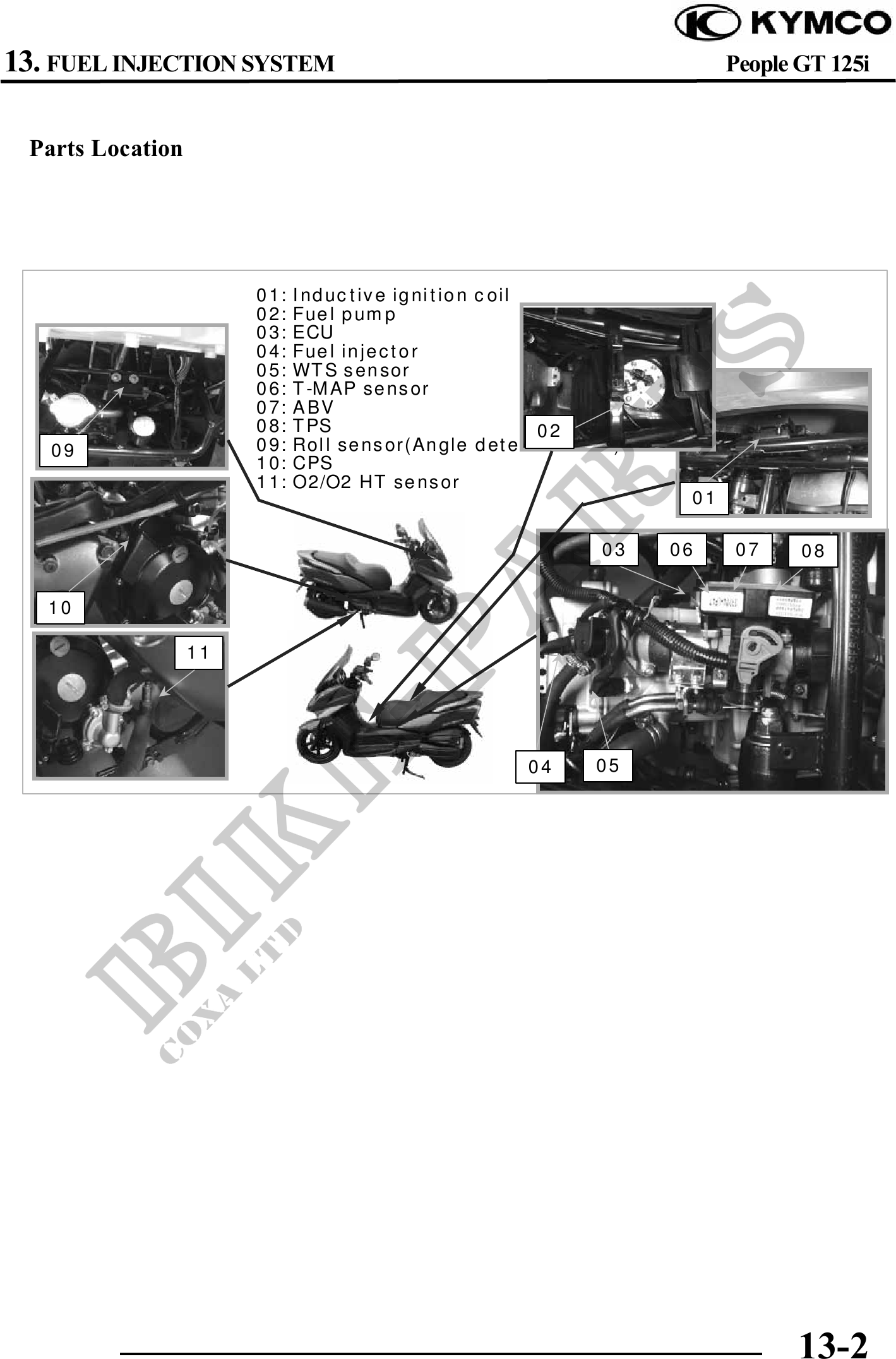

          13. FUEL INJECTION SYSTEM                                           People GT 125i


 Parts Location




                       01: Inductive ignition coil
                       02: Fuel pump
                       03: ECU
                       04: Fuel injector
                       05: WTS sensor
                       06: T-MAP sensor
                       07: ABV
                       08: TPS                     02
   09                  09: Roll sensor(Angle detect sensor)
                       10: CPS
                       11: O2/O2 HT sensor
                                                               01

                                                         03   06    07     08


   10

                  11




                                                 04     05




                                                                           13-2
