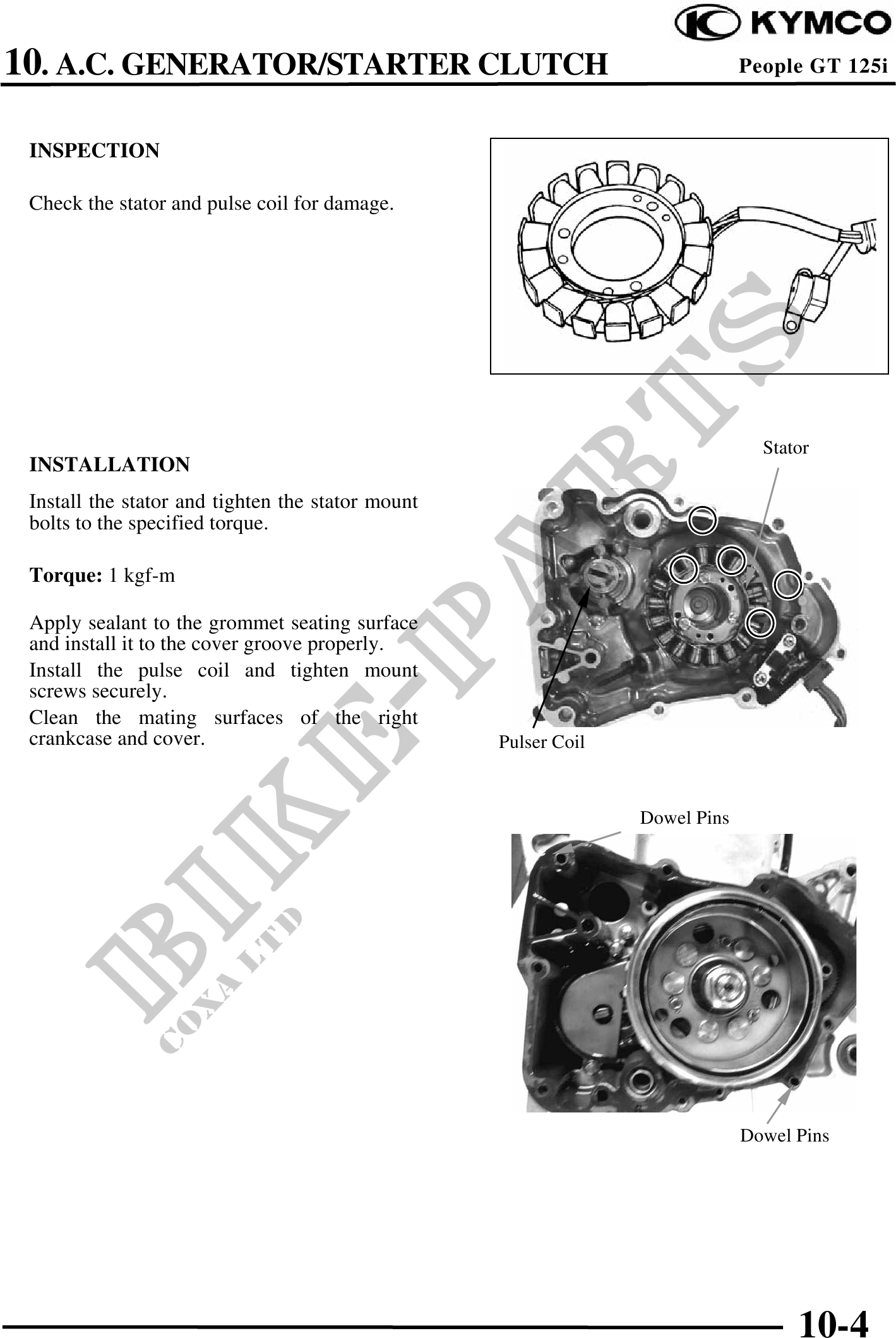

          10. A.C. GENERATOR/STARTER CLUTCH                                             People GT 125i



 INSPECTION

 Check the stator and pulse coil for damage.




                                                                                Stator
 INSTALLATION
 Install the stator and tighten the stator mount
 bolts to the specified torque.

 Torque: 1 kgf-m

 Apply sealant to the grommet seating surface
 and install it to the cover groove properly.
 Install the pulse coil and tighten mount
 screws securely.
 Clean the mating surfaces of the right
 crankcase and cover.                              Pulser Coil


                                                                 Dowel Pins




                                                                              Dowel Pins




                                                                                    10-4
