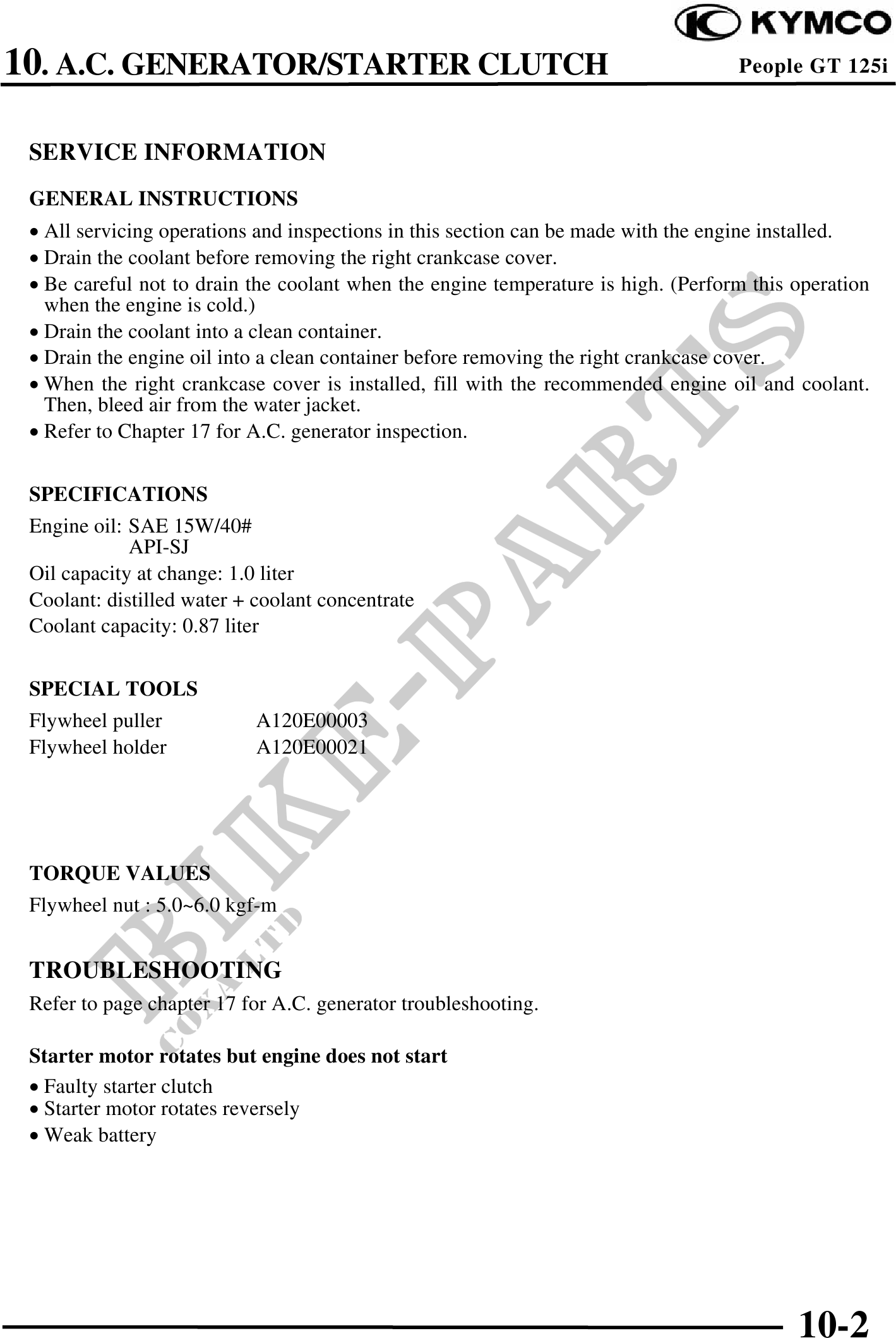

          10. A.C. GENERATOR/STARTER CLUTCH                                                  People GT 125i



 SERVICE INFORMATION
 GENERAL INSTRUCTIONS
 · All servicing operations and inspections in this section can be made with the engine installed.
 · Drain the coolant before removing the right crankcase cover.
 · Be careful not to drain the coolant when the engine temperature is high. (Perform this operation
   when the engine is cold.)
 · Drain the coolant into a clean container.
 · Drain the engine oil into a clean container before removing the right crankcase cover.
 · When the right crankcase cover is installed, fill with the recommended engine oil and coolant.
   Then, bleed air from the water jacket.
 · Refer to Chapter 17 for A.C. generator inspection.


 SPECIFICATIONS
 Engine oil: SAE 15W/40#
             API-SJ
 Oil capacity at change: 1.0 liter
 Coolant: distilled water + coolant concentrate
 Coolant capacity: 0.87 liter


 SPECIAL TOOLS
 Flywheel puller            A120E00003
 Flywheel holder            A120E00021




 TORQUE VALUES
 Flywheel nut : 5.0~6.0 kgf-m


 TROUBLESHOOTING
 Refer to page chapter 17 for A.C. generator troubleshooting.

 Starter motor rotates but engine does not start
 · Faulty starter clutch
 · Starter motor rotates reversely
 · Weak battery




                                                                                          10-2
