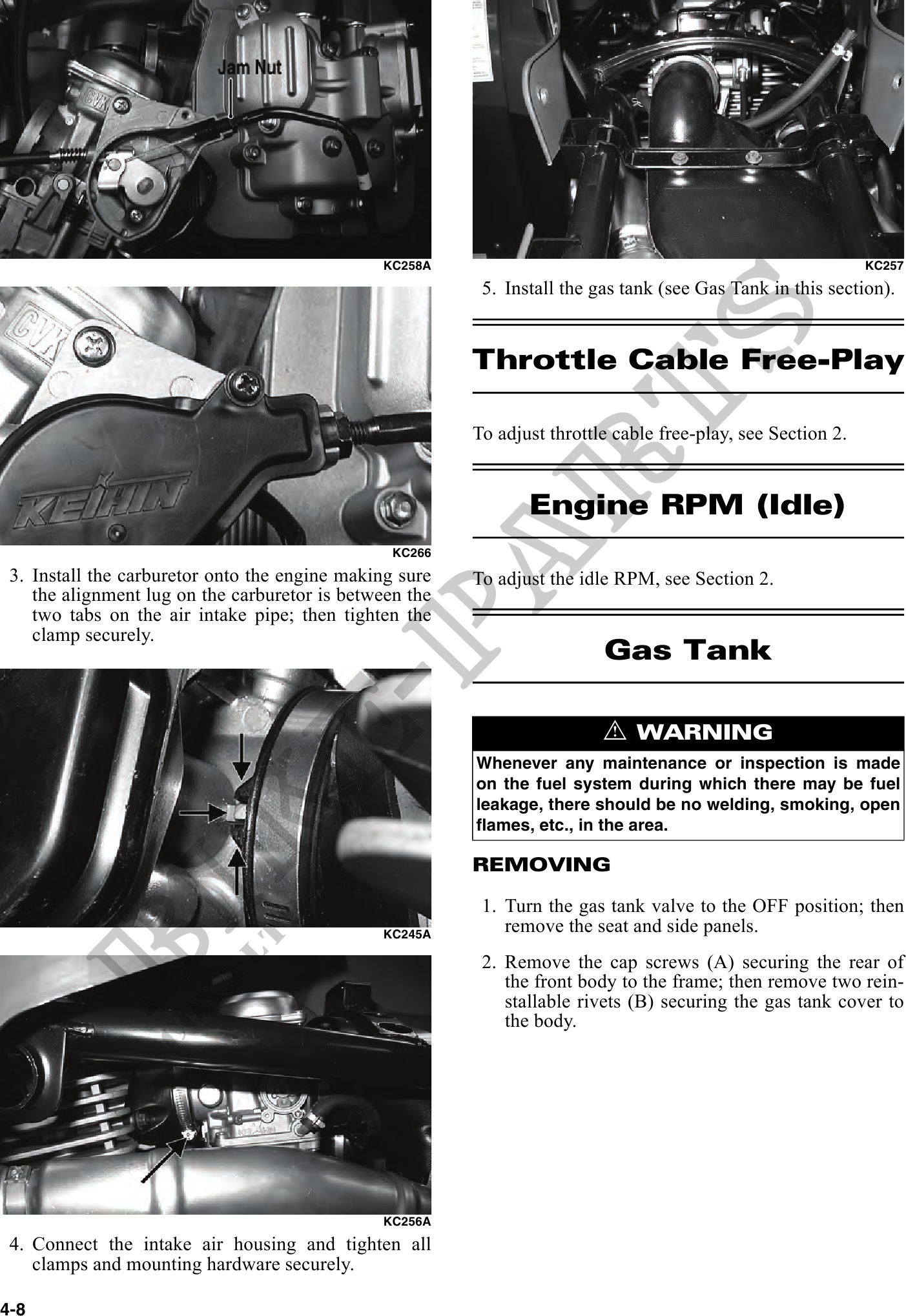

                                                         KC258A                                                         KC257
                                                          5. Install the gas tank (see Gas Tank in this section).


                                                         Throttle Cable Free-Play

                                                         To adjust throttle cable free-play, see Section 2.


                                                                Engine RPM (Idle)
                                                 KC266
 3. Install the carburetor onto the engine making sure   To adjust the idle RPM, see Section 2.
    the alignment lug on the carburetor is between the
    two tabs on the air intake pipe; then tighten the
    clamp securely.
                                                                          Gas Tank

                                                                          ! WARNING
                                                         Whenever any maintenance or inspection is made
                                                         on the fuel system during which there may be fuel
                                                         leakage, there should be no welding, smoking, open
                                                         flames, etc., in the area.

                                                         REMOVING

                                                          1. Turn the gas tank valve to the OFF position; then
                                               KC245A
                                                             remove the seat and side panels.
                                                          2. Remove the cap screws (A) securing the rear of
                                                             the front body to the frame; then remove two rein-
                                                             stallable rivets (B) securing the gas tank cover to
                                                             the body.




                                               KC256A
 4. Connect the intake air housing and tighten all
    clamps and mounting hardware securely.

4-8
