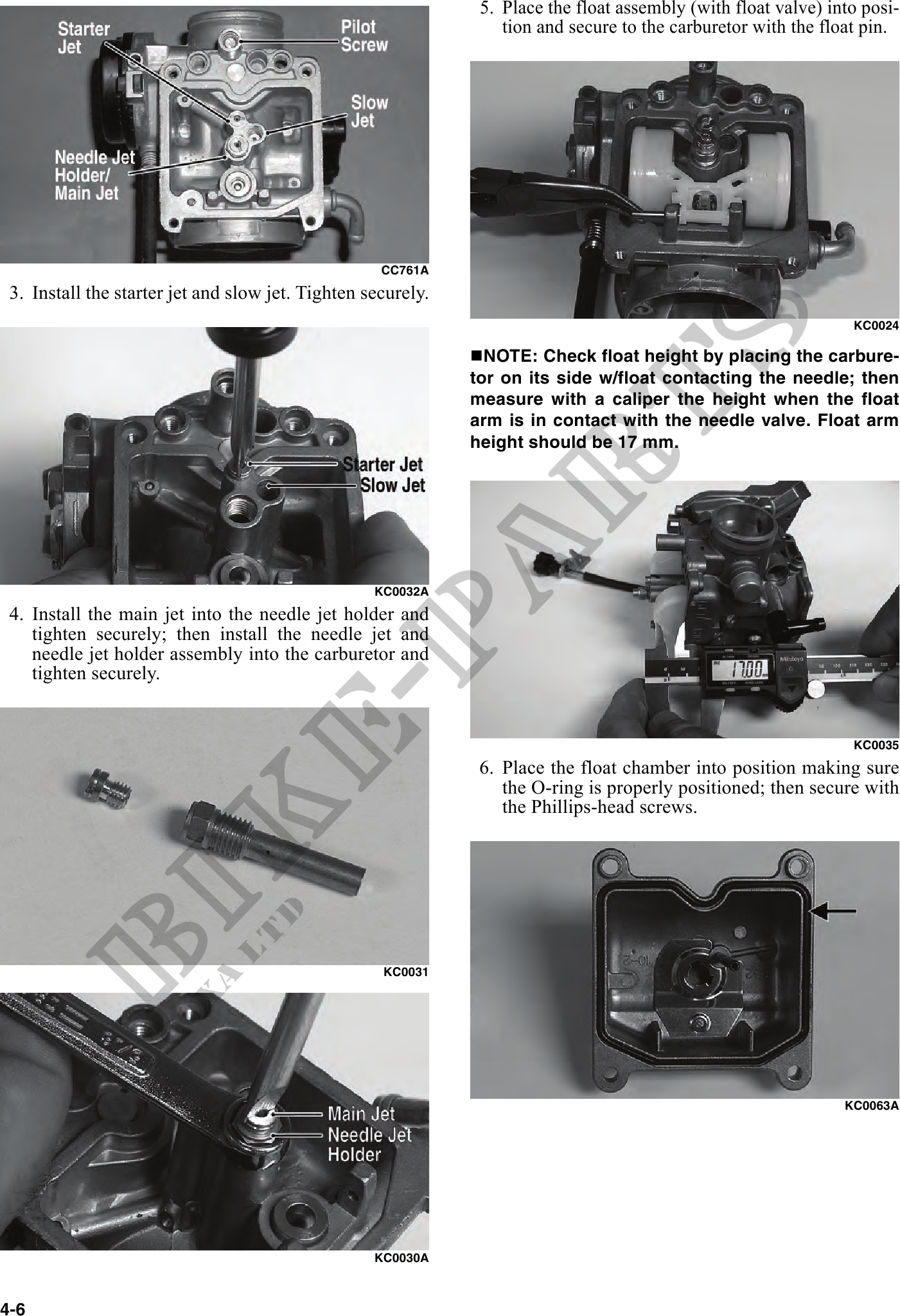

                                                                         5. Place the float assembly (with float valve) into posi-
                                                                  tion and secure to the carburetor with the float pin.




                                                    CC761A
 3. Install the starter jet and slow jet. Tighten securely.
                                                                                                                 KC0024

                                                                NOTE: Check float height by placing the carbure-
                                                              tor on its side w/float contacting the needle; then
                                                              measure with a caliper the height when the float
                                                              arm is in contact with the needle valve. Float arm
                                                              height should be 17 mm.




                                                   KC0032A
 4. Install the main jet into the needle jet holder and
    tighten securely; then install the needle jet and
    needle jet holder assembly into the carburetor and
    tighten securely.


                                                                                                                 KC0035
                                                               6. Place the float chamber into position making sure
                                                                  the O-ring is properly positioned; then secure with
                                                                  the Phillips-head screws.




                                                    KC0031




                                                                                                                KC0063A




                                                   KC0030A



4-6
