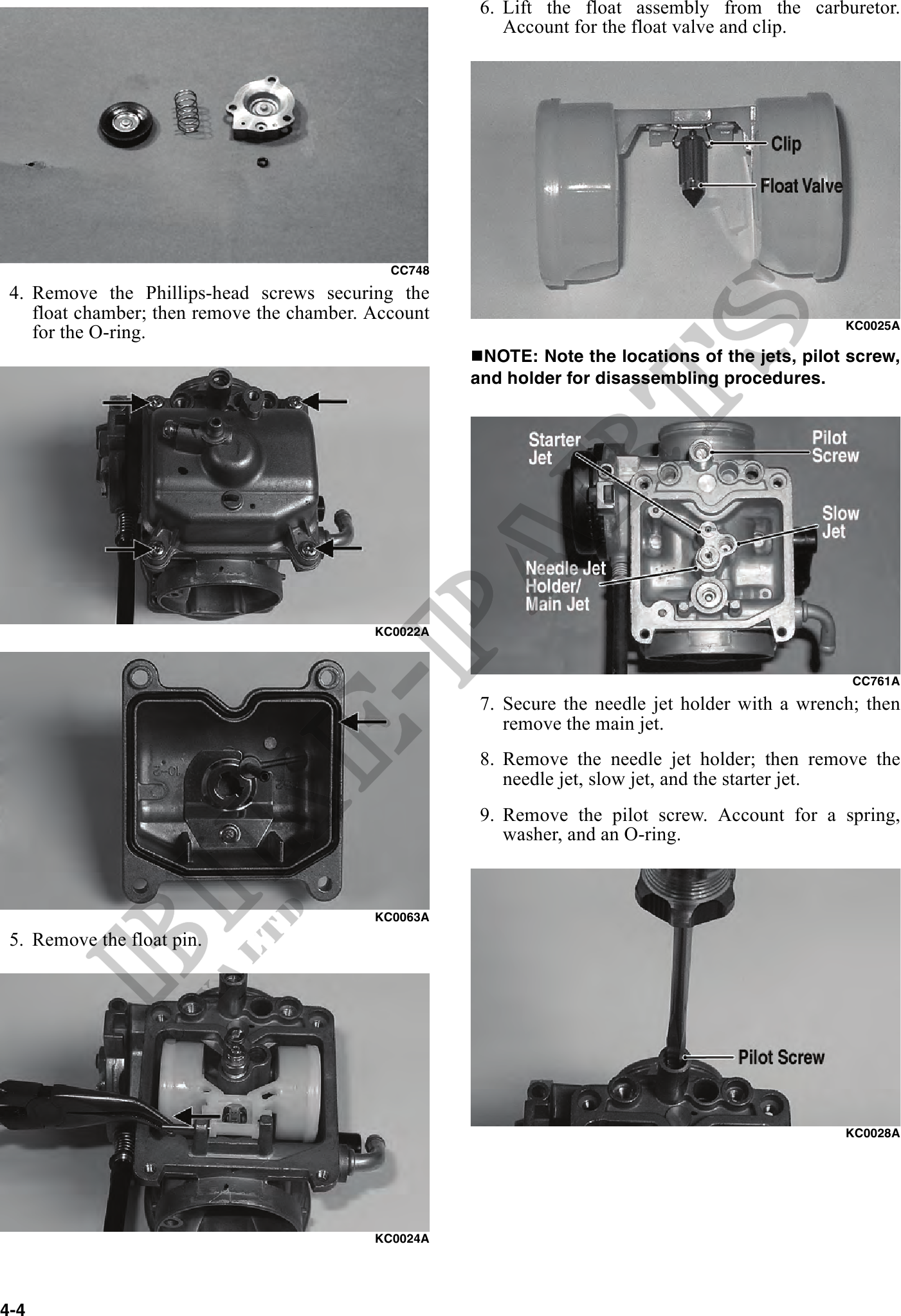

                                                                 6. Lift the float assembly from the carburetor.
                                                          Account for the float valve and clip.




                                              CC748
 4. Remove the Phillips-head screws securing the
    float chamber; then remove the chamber. Account
    for the O-ring.                                                                                KC0025A

                                                       NOTE: Note the locations of the jets, pilot screw,
                                                      and holder for disassembling procedures.




                                            KC0022A



                                                                                                    CC761A
                                                       7. Secure the needle jet holder with a wrench; then
                                                          remove the main jet.
                                                       8. Remove the needle jet holder; then remove the
                                                          needle jet, slow jet, and the starter jet.
                                                       9. Remove the pilot screw. Account for a spring,
                                                          washer, and an O-ring.



                                            KC0063A
 5. Remove the float pin.




                                                                                                   KC0028A




                                            KC0024A




4-4
