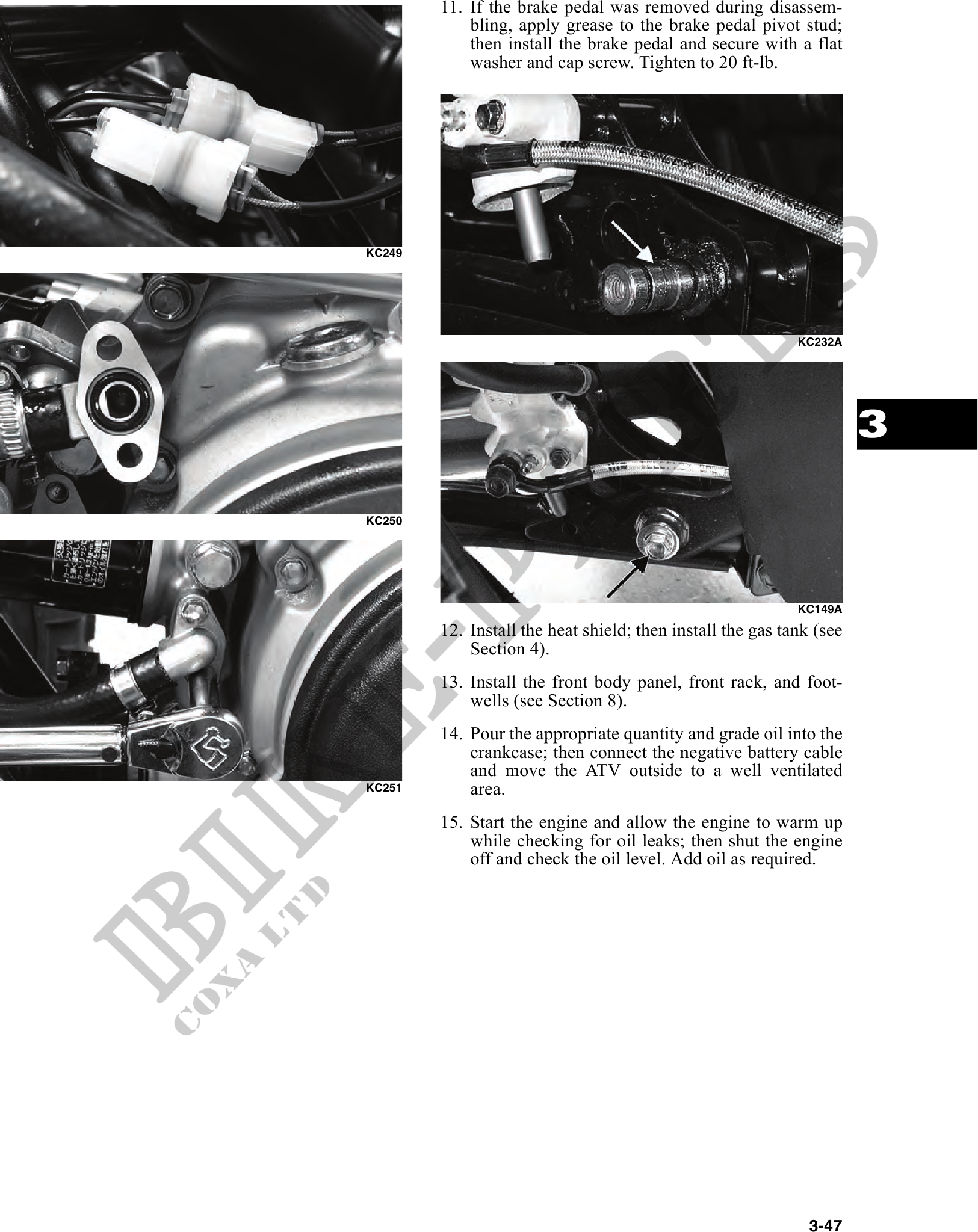

11. If the brake pedal was removed during disassem- bling, apply grease to the brake pedal pivot stud; then install the brake pedal and secure with a flat washer and cap screw. Tighten to 20 ft-lb. KC249 KC232A 3 KC250 KC149A 12. Install the heat shield; then install the gas tank (see Section 4). 13. Install the front body panel, front rack, and foot- wells (see Section 8). 14. Pour the appropriate quantity and grade oil into the crankcase; then connect the negative battery cable and move the ATV outside to a well ventilated KC251 area. 15. Start the engine and allow the engine to warm up while checking for oil leaks; then shut the engine off and check the oil level. Add oil as required. 3-47
