                                                                      3. Apply a liberal amount of oil to the crankshaft
                                                               bearing. Using a propane torch, heat the bearing

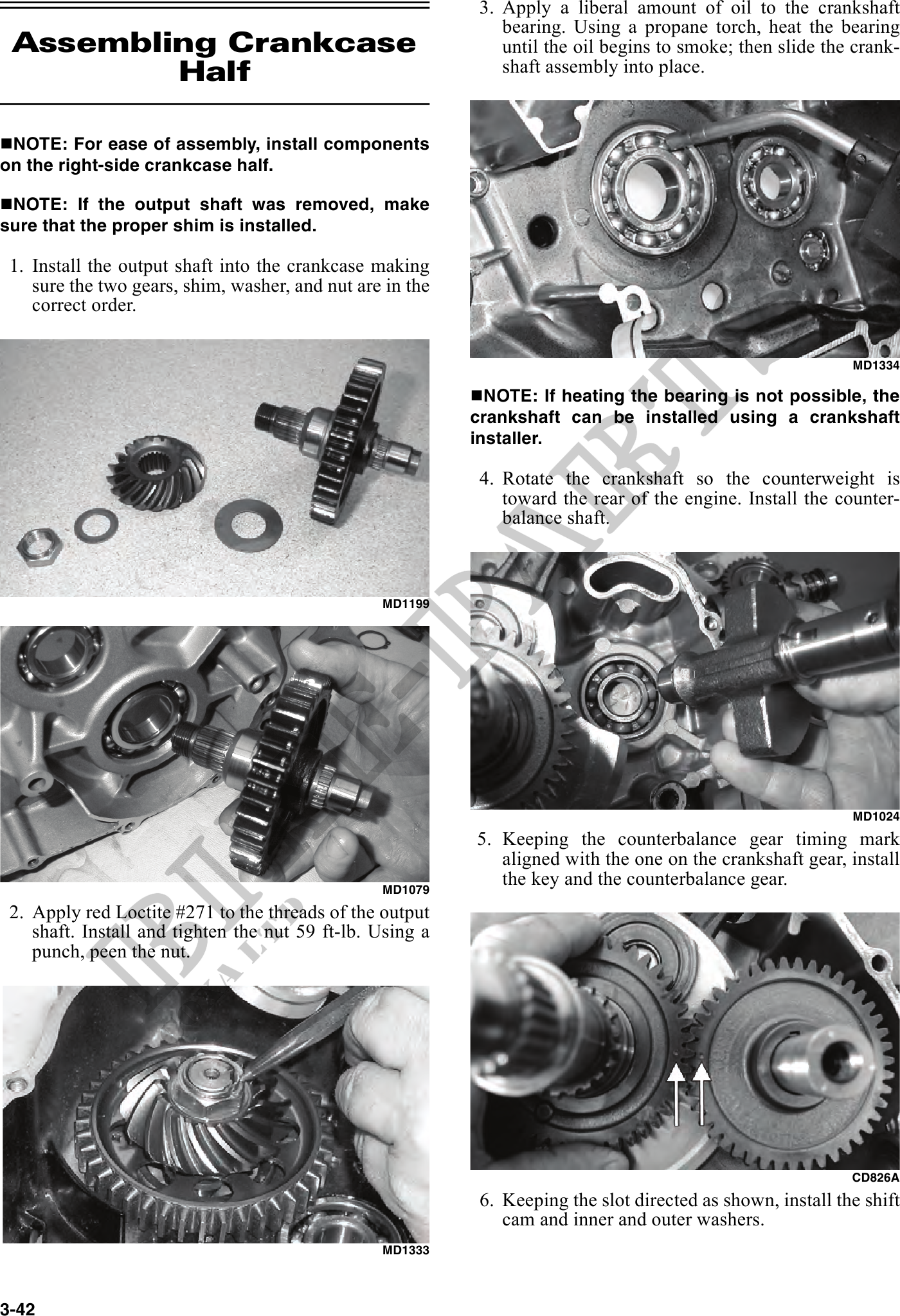

 Assembling Crankcase                                          until the oil begins to smoke; then slide the crank-
         Half                                                  shaft assembly into place.


 NOTE: For ease of assembly, install components
on the right-side crankcase half.

 NOTE: If the output shaft was removed, make
sure that the proper shim is installed.

 1. Install the output shaft into the crankcase making
    sure the two gears, shim, washer, and nut are in the
    correct order.

                                                                                                             MD1334

                                                             NOTE: If heating the bearing is not possible, the
                                                           crankshaft can be installed using a crankshaft
                                                           installer.

                                                            4. Rotate the crankshaft so the counterweight is
                                                               toward the rear of the engine. Install the counter-
                                                               balance shaft.



                                                 MD1199




                                                                                                             MD1024
                                                           5. Keeping the counterbalance gear timing mark
                                                              aligned with the one on the crankshaft gear, install
                                                 MD1079
                                                              the key and the counterbalance gear.
 2. Apply red Loctite #271 to the threads of the output
    shaft. Install and tighten the nut 59 ft-lb. Using a
    punch, peen the nut.




                                                                                                             CD826A
                                                            6. Keeping the slot directed as shown, install the shift
                                                               cam and inner and outer washers.
                                                 MD1333



3-42
