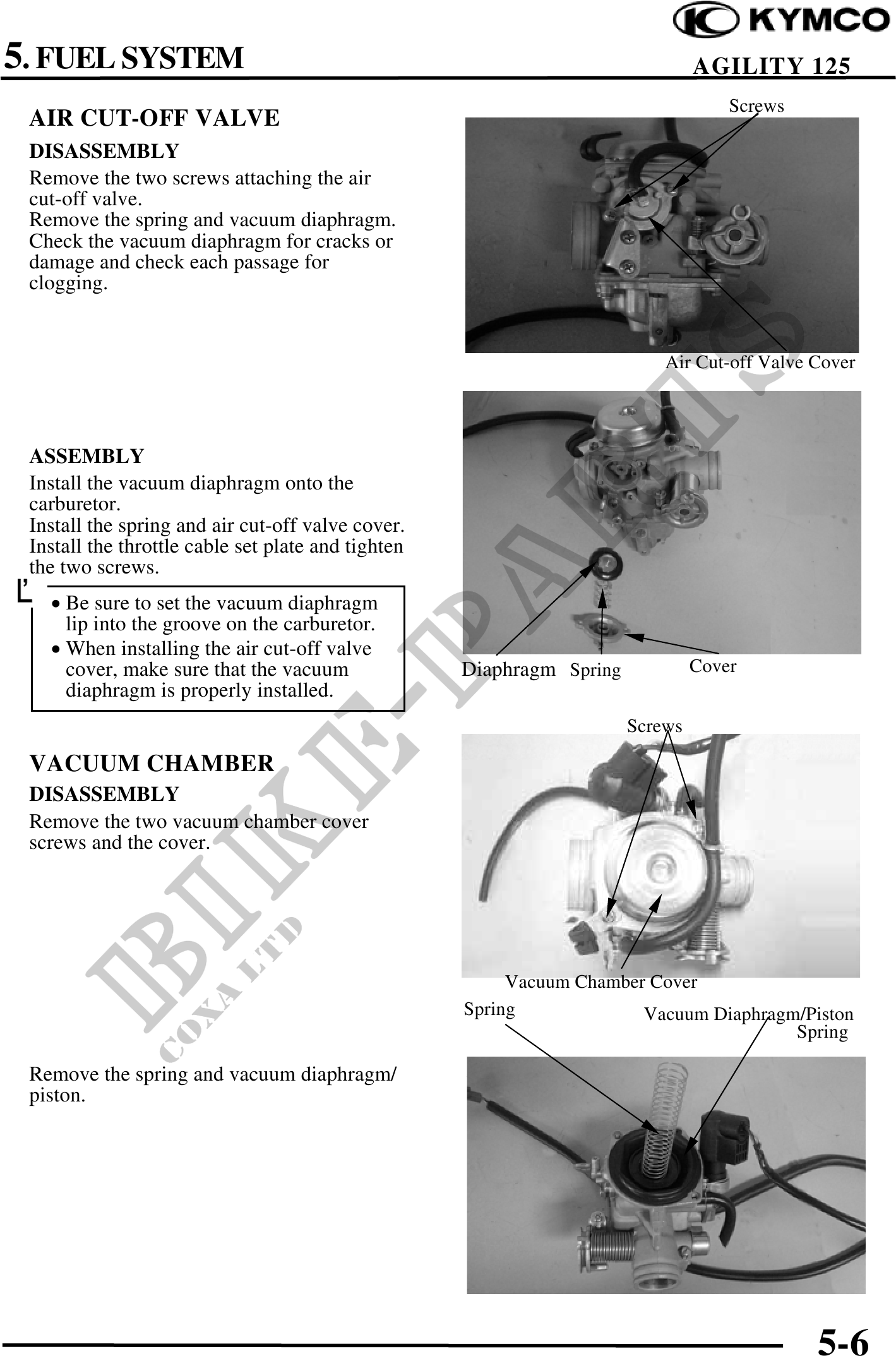

          5. FUEL SYSTEM                                                                  AGILITY 125
                                                                                    Screws
 AIR CUT-OFF VALVE
 DISASSEMBLY
 Remove the two screws attaching the air
 cut-off valve.
 Remove the spring and vacuum diaphragm.
 Check the vacuum diaphragm for cracks or
 damage and check each passage for
 clogging.


                                                                           Air Cut-off Valve Cover



 ASSEMBLY
 Install the vacuum diaphragm onto the
 carburetor.
 Install the spring and air cut-off valve cover.
 Install the throttle cable set plate and tighten
 the two screws.
 · Be sure to set the vacuum diaphragm
     lip into the groove on the carburetor.
   · When installing the air cut-off valve
     cover, make sure that the vacuum               Diaphragm Spring            Cover
     diaphragm is properly installed.
                                                                       Screws

 VACUUM CHAMBER
 DISASSEMBLY
 Remove the two vacuum chamber cover
 screws and the cover.




                                                         Vacuum Chamber Cover
                                                    Spring             Vacuum Diaphragm/Piston
                                                                                       Spring

 Remove the spring and vacuum diaphragm/
 piston.




                                                                                             5-6
