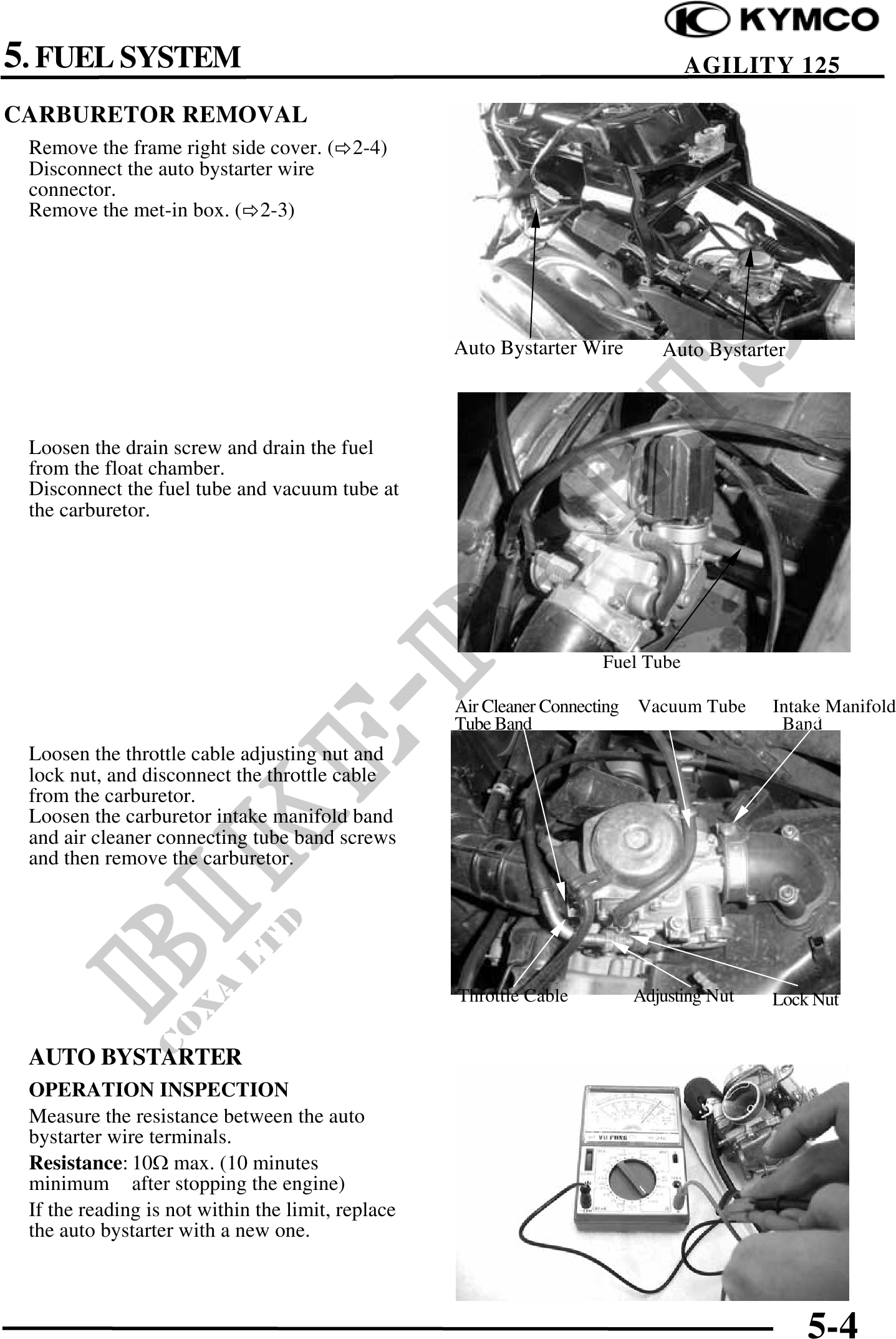

          5. FUEL SYSTEM                                                                  AGILITY 125

CARBURETOR REMOVAL
 Remove the frame right side cover. ( 2-4)
 Disconnect the auto bystarter wire
 connector.
 Remove the met-in box. ( 2-3)




                                                   Auto Bystarter Wire      Auto Bystarter



 Loosen the drain screw and drain the fuel
 from the float chamber.
 Disconnect the fuel tube and vacuum tube at
 the carburetor.




                                                                    Fuel Tube

                                                   Air Cleaner Connecting Vacuum Tube    Intake Manifold
                                                   Tube Band                              Band
 Loosen the throttle cable adjusting nut and
 lock nut, and disconnect the throttle cable
 from the carburetor.
 Loosen the carburetor intake manifold band
 and air cleaner connecting tube band screws
 and then remove the carburetor.




                                                   Throttle Cable        Adjusting Nut   Lock Nut


 AUTO BYSTARTER
 OPERATION INSPECTION
 Measure the resistance between the auto
 bystarter wire terminals.
 Resistance: 10 max. (10 minutes
 minimum after stopping the engine)
 If the reading is not within the limit, replace
 the auto bystarter with a new one.



                                                                                             5-4
