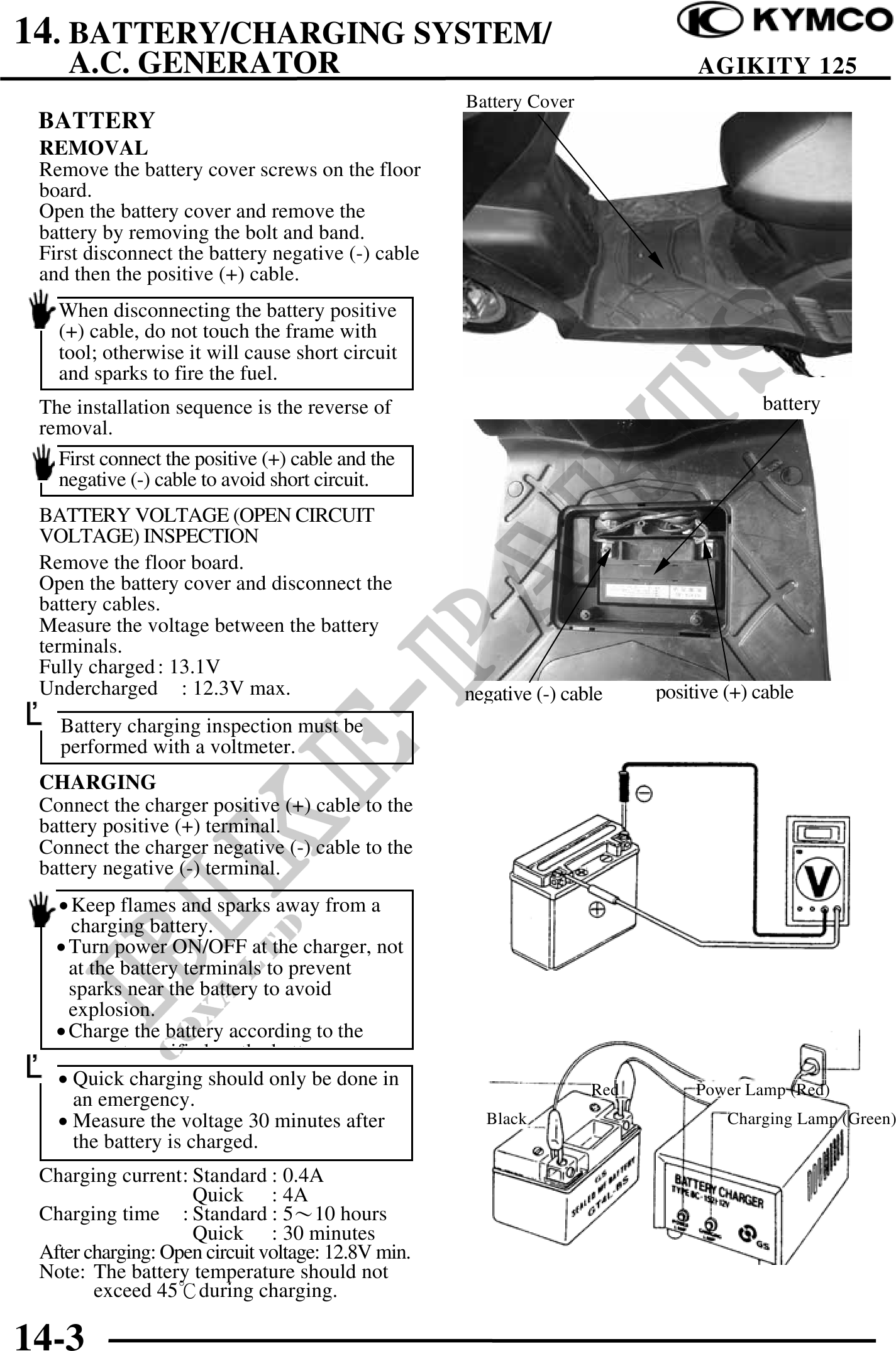

14. BATTERY/CHARGING SYSTEM/
A.C. GENERATOR AGIKITY 125
Battery Cover
BATTERY
REMOVAL
Remove the battery cover screws on the floor
board.
Open the battery cover and remove the
battery by removing the bolt and band.
First disconnect the battery negative (-) cable
and then the positive (+) cable.
When disconnecting the battery positive
(+) cable, do not touch the frame with
tool; otherwise it will cause short circuit
and sparks to fire the fuel.
The installation sequence is the reverse of battery
removal.
First connect the positive (+) cable and the
negative (-) cable to avoid short circuit.
BATTERY VOLTAGE (OPEN CIRCUIT
VOLTAGE) INSPECTION
Remove the floor board.
Open the battery cover and disconnect the
battery cables.
Measure the voltage between the battery
terminals.
Fully charged : 13.1V
Undercharged : 12.3V max. negative (-) cable positive (+) cable
Battery charging inspection must be
performed with a voltmeter.
CHARGING
Connect the charger positive (+) cable to the
battery positive (+) terminal.
Connect the charger negative (-) cable to the
battery negative (-) terminal.
· Keep flames and sparks away from a
charging battery.
· Turn power ON/OFF at the charger, not
at the battery terminals to prevent
sparks near the battery to avoid
explosion.
· Charge the battery according to the
t ifi d th b tt
· Quick charging should only be done in
Red Power Lamp (Red)
an emergency.
· Measure the voltage 30 minutes after Black Charging Lamp (Green)
the battery is charged.
Charging current: Standard : 0.4A
Quick : 4A
Charging time : Standard : 510 hours
Quick : 30 minutes
After charging: Open circuit voltage: 12.8V min.
Note: The battery temperature should not
exceed 45during charging.
14-3
