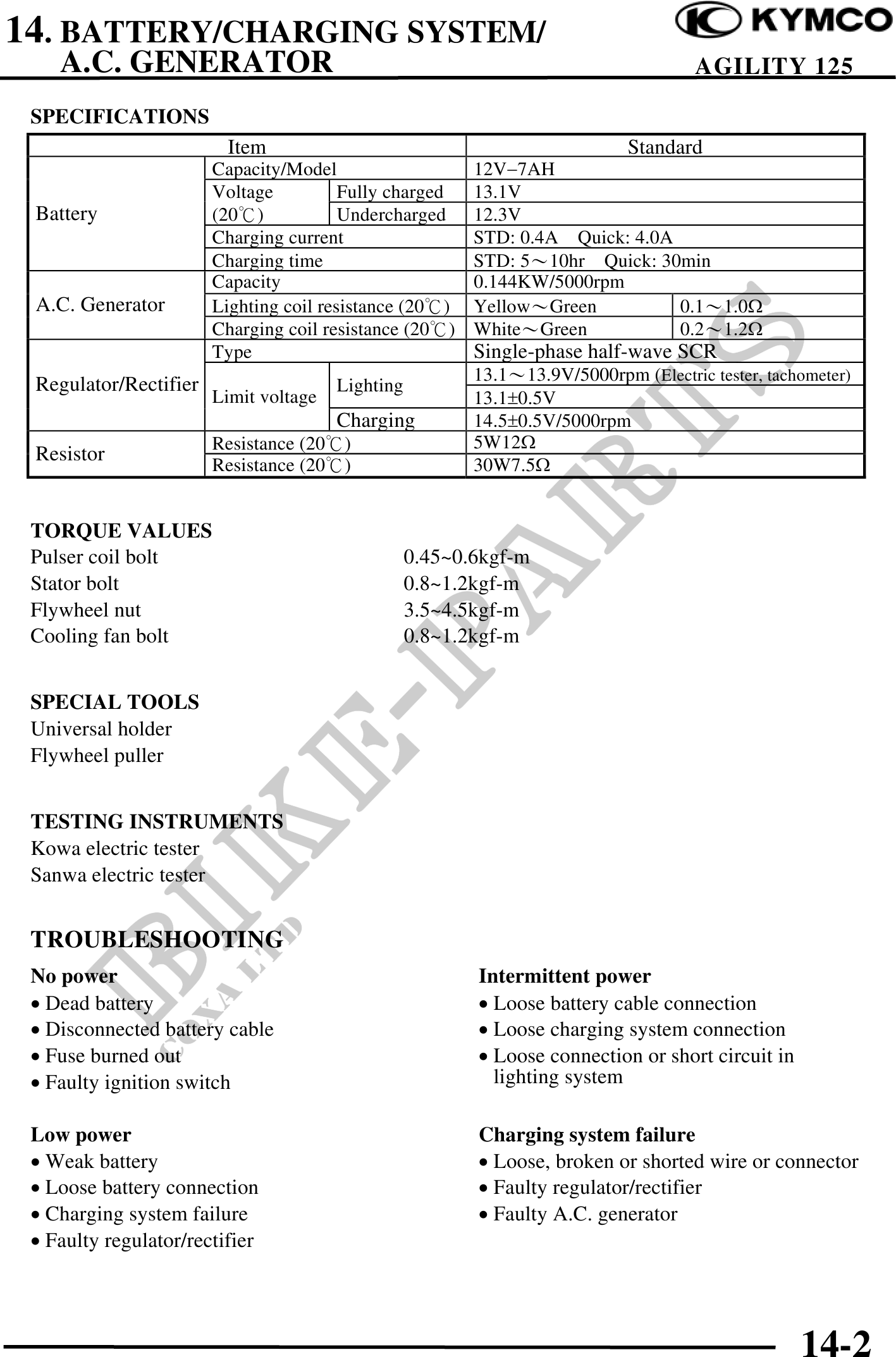

          14. BATTERY/CHARGING SYSTEM/
    A.C. GENERATOR                                                                  AGILITY 125

 SPECIFICATIONS
                         Item                                               Standard
                       Capacity/Model                    12V-7AH
                       Voltage          Fully charged    13.1V
 Battery               (20)             Undercharged     12.3V
                       Charging current                  STD: 0.4A Quick: 4.0A
                       Charging time                     STD: 510hr Quick: 30min
                       Capacity                          0.144KW/5000rpm
 A.C. Generator        Lighting coil resistance (20)     YellowGreen           0.11.0
                       Charging coil resistance (20)     WhiteGreen            0.21.2
                       Type                              Single-phase half-wave SCR
                                                         13.113.9V/5000rpm (Electric tester, tachometer)
 Regulator/Rectifier                   Lighting
                       Limit voltage                     13.10.5V
                                       Charging          14.50.5V/5000rpm
                       Resistance (20)                   5W12
 Resistor
                       Resistance (20)                   30W7.5


 TORQUE VALUES
 Pulser coil bolt                                 0.45~0.6kgf-m
 Stator bolt                                      0.8~1.2kgf-m
 Flywheel nut                                     3.5~4.5kgf-m
 Cooling fan bolt                                 0.8~1.2kgf-m


 SPECIAL TOOLS
 Universal holder
 Flywheel puller


 TESTING INSTRUMENTS
 Kowa electric tester
 Sanwa electric tester


 TROUBLESHOOTING
 No power                                                Intermittent power
 · Dead battery                                          · Loose battery cable connection
 · Disconnected battery cable                            · Loose charging system connection
 · Fuse burned out                                       · Loose connection or short circuit in
 · Faulty ignition switch                                  lighting system

 Low power                                               Charging system failure
 · Weak battery                                          · Loose, broken or shorted wire or connector
 · Loose battery connection                              · Faulty regulator/rectifier
 · Charging system failure                               · Faulty A.C. generator
 · Faulty regulator/rectifier




                                                                                                  14-2
