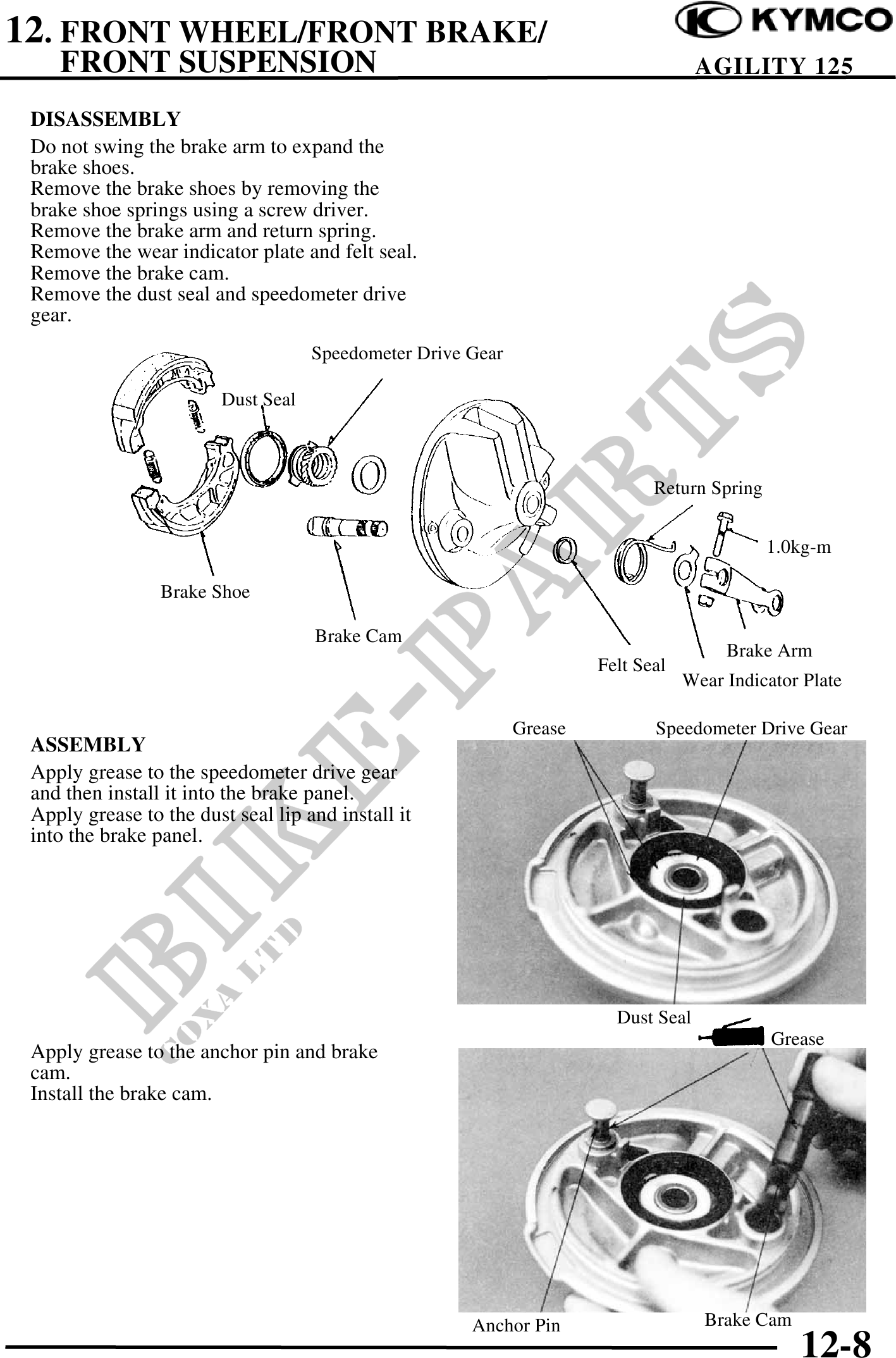

          12. FRONT WHEEL/FRONT BRAKE/
    FRONT SUSPENSION                                                                 AGILITY 125

 DISASSEMBLY
 Do not swing the brake arm to expand the
 brake shoes.
 Remove the brake shoes by removing the
 brake shoe springs using a screw driver.
 Remove the brake arm and return spring.
 Remove the wear indicator plate and felt seal.
 Remove the brake cam.
 Remove the dust seal and speedometer drive
 gear.
                                     Speedometer Drive Gear

                         Dust Seal



                                                                              Return Spring


                                                                                              1.0kg-m

                 Brake Shoe

                                     Brake Cam
                                                                                        Brake Arm
                                                                       Felt Seal
                                                                                   Wear Indicator Plate

                                                              Grease          Speedometer Drive Gear
 ASSEMBLY
 Apply grease to the speedometer drive gear
 and then install it into the brake panel.
 Apply grease to the dust seal lip and install it
 into the brake panel.




                                                                         Dust Seal
                                                                                              Grease
 Apply grease to the anchor pin and brake
 cam.
 Install the brake cam.




                                                       Anchor Pin                    Brake Cam
                                                                                                 12-8
